Description

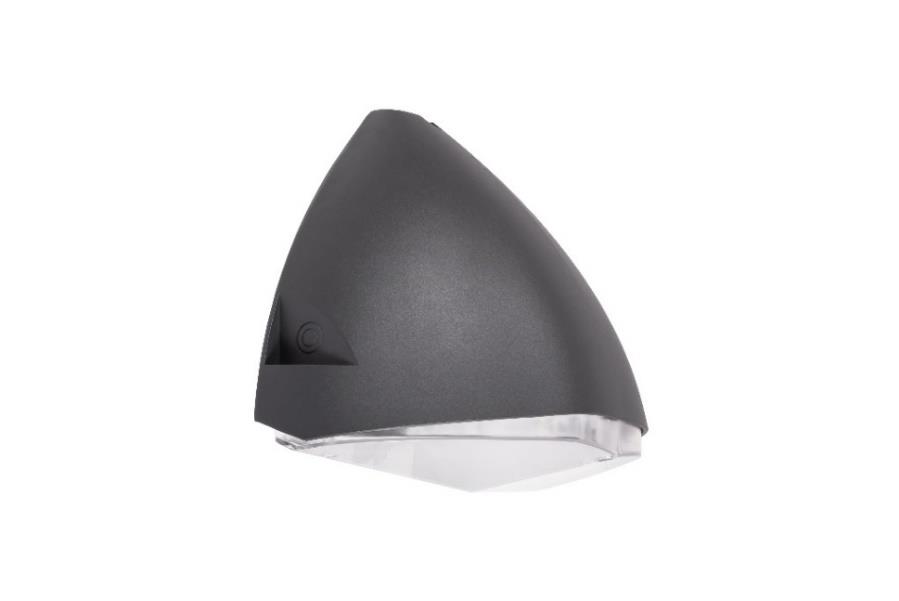

ANTARES LED

direct
lenses, frosted polycarbonate diffuser, impact resistant
aluminium
dark grey, RAL7043
MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L80B50
6
I
IP65
IK08
Operating temperature range, ta -25…+40

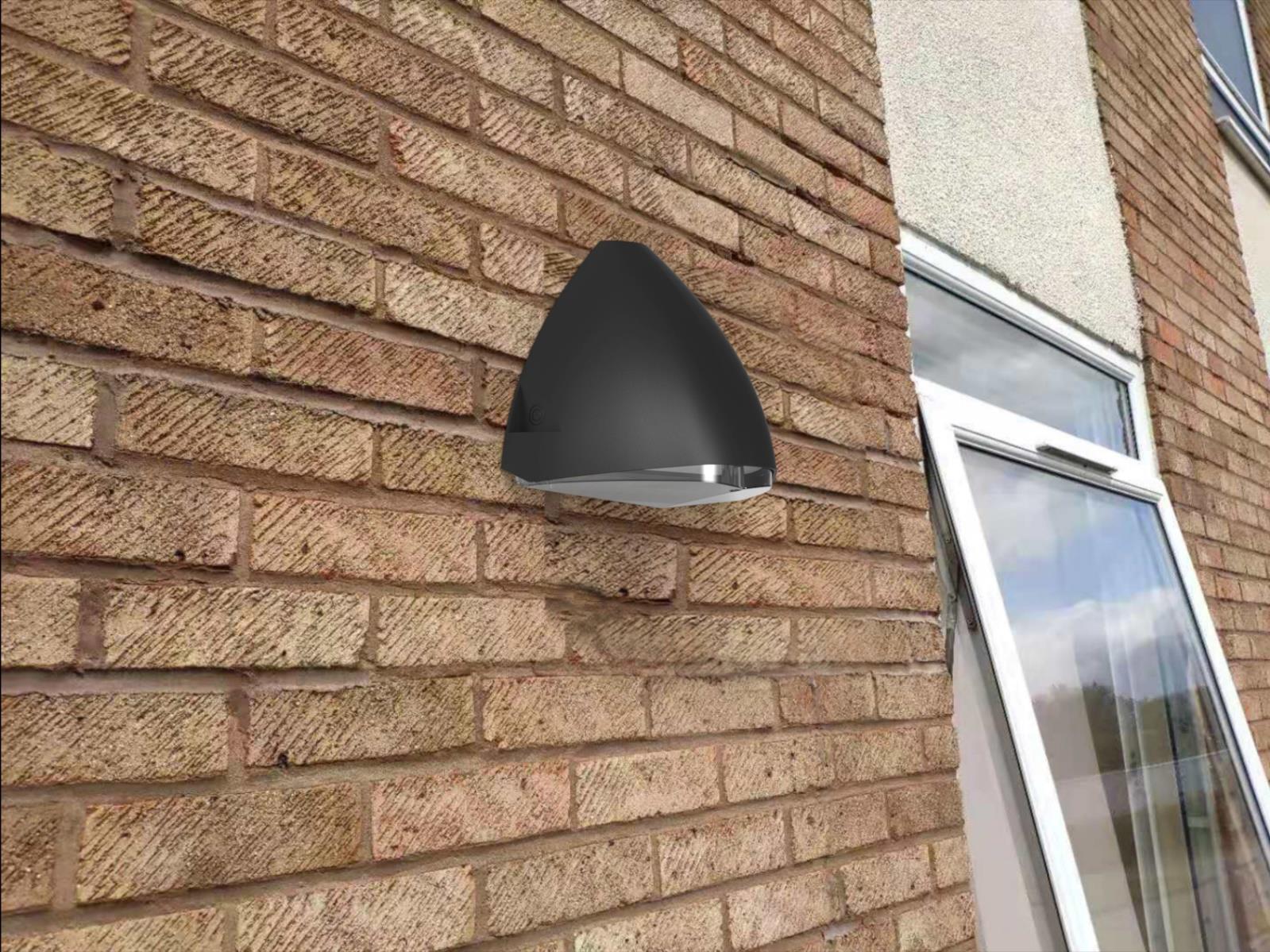

On the wall. Push -in terminal, 3x2x2.5mm2
Outdoor
Facade illumination, transport terminal, parking area, fuel station, public space

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.
T830 Colour temperature 3000K, CRI 80+
*note – T830 option is not applicable with LS1A40 models
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
*note – for DALI option, indicate what output is required
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous
testing system, 3 hours
EM3D Emergency version 3 hours with DALI interface
*note – Operating temperature range for Luminaires with EM option, ta 0…
+30 EM3Atim -25 Emergency version equipped with an autonomous
testing system, 3 hours. Suitable for low ambient
temperatures up to -25C
CBF3x1.5 -N m Outgoing flexible cable 3×1.5mm .
according to the customer’s specification
CBF5x1.5 -N m Outgoing flexible cable 5×1.5mm , length according to
customer specification
*note – please specify the length of outgoing cable before placing an order
RAL RAL colour

STANDARD LS1A40

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*, K Weight,
kg
Antares LED1x1850/2550/3600
J626 T840/T830 319 165 265 1829/2535/
3567 13/18/
28 141/141/
127 80+ 4000 /
3000 1,9

Antares LED1x1850/2550/3600
J626 T840 LS1A40 319 165 265 1829/2535/
3567 13/18/
28 141/141/
127 80+ 4000 1,9
