Description

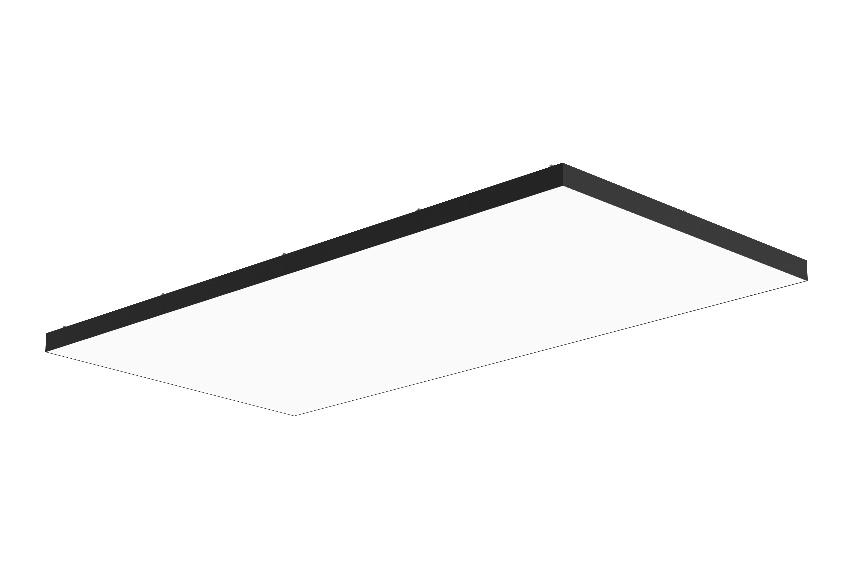

AZURE LED

luminaires Suspended DA-CANEASHative LED luminaire with ultra -low appearance
direct
opal PMMA / matt micro -prismatic, UV stabilized
steel
white (RAL9003S)
MDA- 220-240V, 50/60Hz
LED lifetime, 50000/L80B20
3
I
IP40
IK02
Operating temperature range, ta -10…+40
Suspended (accessories to be ordered separately). Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, retail, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T930 Colour temperature 3000K, CRI 90+
T940 Colour temperature 4000K, CRI 90+
DALI Driver with DALI interface and switch -control dimming
STANDARD Surface MTG kit Azure series
S1200x1200 RAL9005
Surface mounting kit for Azure LED
luminaire 1200x1200mm (6pcs), Surface MTG kit Azure series S2400/3000×1200
RAL9005
Surface mounting kit for Azure LED luminaire
2400/3000x1200mm (12pcs), black steel

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
Azure LED1x4800 J872 T930 RAL9005 1200 1200 110 4500 60 75 90+ 3000 11,0
Azure LED1x9600 J873 T930 RAL9005 2400 1200 110 9000 120 75 90+ 3000 21,0
Azure LED1x14400 J874 T930
RAL9005 3000 1200 110 13500 180 75 90+ 3000 27,0
Azure LED1x4800 J872 T940
RAL9005 1200 1200 110 4800 60 80 90+ 4000 11,0
Azure LED1x9600 J873 T940
RAL9005 2400 1200 110 9600 120 80 90+ 4000 21,0
Azure LED1x14400 J874 T940
RAL9005 3000 1200 110 14400 180 80 90+ 4000 27,0
