BOREAS C LED

Description

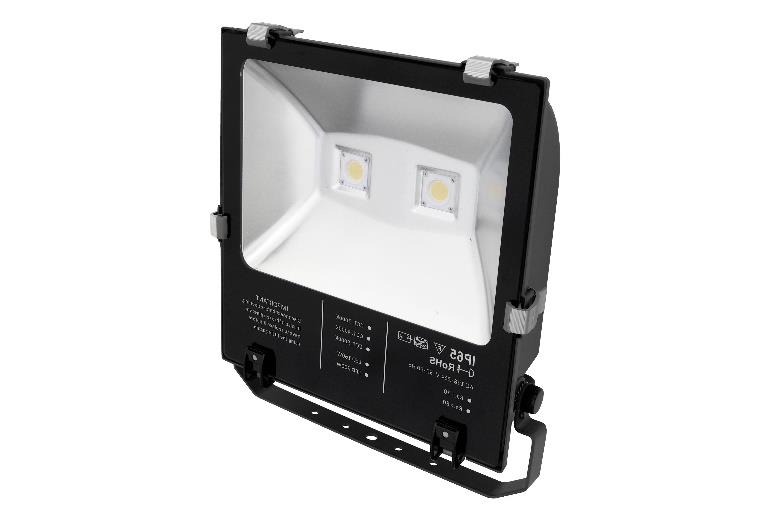

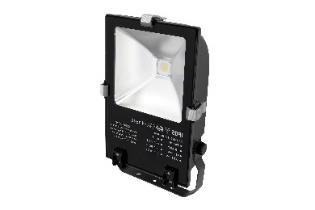

BOREAS C LED

anodized aluminium, symmetric
tempered glass, clear, impact resistant
die -cast aluminum, dark grey finish, with aluminium clips
MDA- 220 -240V, 50/60Hz
LED lifetime, 50000/L80B50
3
I
IP65
IK08
Operating temperature range, ta -25+40
Suitable for any horizontal and/or vertical surfaces. Tool -free design for easy instalation and mDA-CANOEBIRCHtenance. Push -in terminal,
3x2x2.5mm2
Outdoor
Facade illumination, parking area, park, public space

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

DALI Driver with DALI interface
T830 Colour temperature 3000K, CRI 80+ T840 Colour temperature 4000K, CRI 80+
T850 Colour temperature 5000K, CRI 80+

STANDARD
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-ROSEWILLOW1x19200 E059 T830 430 438 150 18559 167,1 111 80+ 3000 9,3
DA-ROSEWILLOW1x22200 E060 T830 430 438 150 21460 200,4 107 80+ 3000 9,3
DA-ROSEWILLOW1x19200 E059 T840 430 438 150 19135 167,1 115 80+ 4000 9,3
DA-ROSEWILLOW1x22200 E060 T840 430 438 150 22123 200,4 110 80+ 4000 9,3
DA-ROSEWILLOW1x19200 E059 T850 430 438 150 19406 167,1 116 80+ 5000 9,3
DA-ROSEWILLOW1x22200 E060 T850 430 438 150 22438 200,4 112 80+ 5000 9,3
