Description

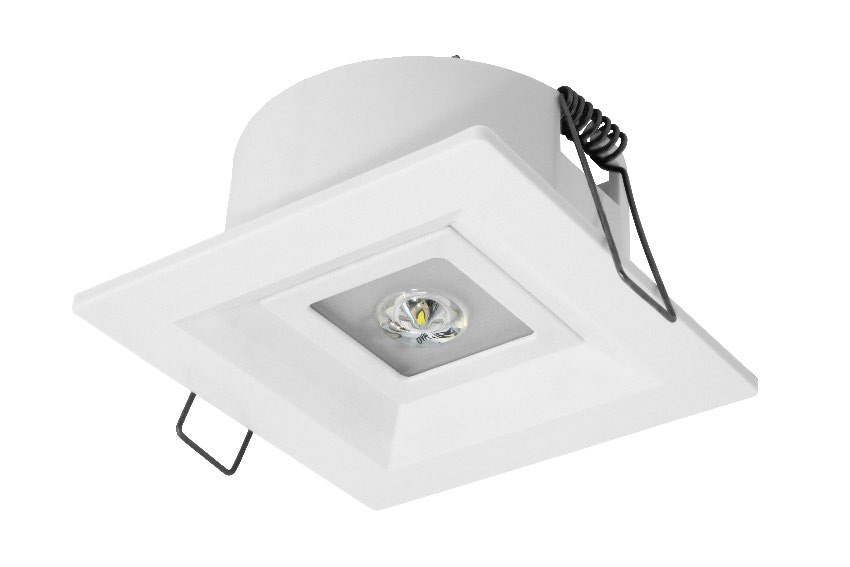

CORRIDOR R LED

direct
lenses
polycarbonate
white
24 hours (12 AUT)
NiCd (LiFePO4 AUT), deep DA-PETTYMORELharge protection
MDA- 220 -240V, 50 -60Hz
LED lifetime, 70000/L80B10
3
II
IP20
IK08
Operating temperature range, ta 0 +40 (CEBLED , ta 0+50)
In ceilings with cut -out openings (d85mm), (mounting brackets included). Electronic gear and battery package installed in a separate
box. Push -in terminal, 3x2x2.5mm2
Indoor
Escape route lighting

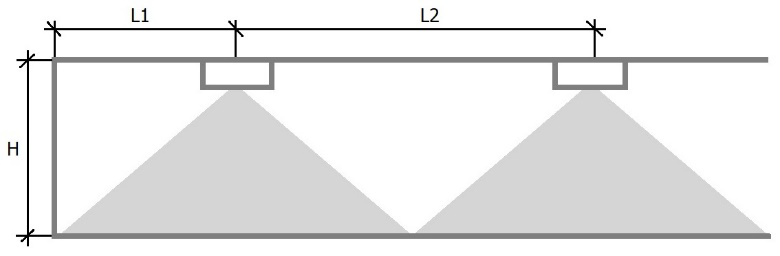

up to 39m along the escape routes;
up to 27m in the open areas;
that effects significantly on reduction of the number of needed emergency luminaires and, consequently, the costs of installa tion
and subsequent mDA-CANOEBIRCHtenance

Product Length,
mm Width,
mm Height,
mm Illumination
mode Emergency
operating
time, h Power in
emergency
mode, W* CRI * CCT*,
K Weight,
kg
DA-WATERASHHLED U22 LER 90 90 48 NM 1 1 80+ 6000 0,6
DA-WAYBREADHLED U24 LER 90 90 48 NM 3 1 80+ 6000 0,7
DA-WATERASHPLED U25 LER 90 90 48 M/NM 1 1 80+ 6000 0,6
DA-WAYBREADPLED U27 LER 90 90 48 M/NM 3 1 80+ 6000 0,7
DA-WATERASHPLED U25 LER AUT 90 90 48 M/NM 1 1 80+ 6000 0,6
DA-WAYBREADPLED U27 LER AUT 90 90 48 M/NM 3 1 80+ 6000 0,7
DA-WHITEASH EBLED C319 LER 90 90 48 CEB x 1 80+ 6000 0,6
DA-WATERASHPLED U25 LER EMS 90 90 48 EMS M/NM 1 1 80+ 6000 0,6
DA-WAYBREADPLED U27 LER EMS 90 90 48 EMS M/NM 3 1 80+ 6000 0,7
DA-WATERASHPLED U25 LER DALI 90 90 48 DALI M/NM 1 1 80+ 6000 0,6
DA-WAYBREADPLED U27 LER DALI 90 90 48 DALI M/NM 3 1 80+ 6000 0,7
DA-WHITEASHLV U32 LER 90 90 48 CLV x 1 80+ 6000 0,6

DA-WATERASHHLED U22 LOA 90 90 48 NM 1 1 80+ 6000 0,6
DA-WAYBREADHLED U24 LOA 90 90 48 NM 3 1 80+ 6000 0,7
DA-WATERASHPLED U25 LOA 90 90 48 M/NM 1 1 80+ 6000 0,6
DA-WAYBREADPLED U27 LOA 90 90 48 M/NM 3 1 80+ 6000 0,7
DA-WATERASHPLED U25 LOA AUT 90 90 48 M/NM 1 1 80+ 6000 0,6
DA-WAYBREADPLED U27 LOA AUT 90 90 48 M/NM 3 1 80+ 6000 0,7
DA-WHITEASHEBLED C319 LOA 90 90 48 CEB x 1 80+ 6000 0,6
DA-WATERASHPLED U25 LOA EMS 90 90 48 EMS M/NM 1 1 80+ 6000 0,6
DA-WAYBREADPLED U27 LOA EMS 90 90 48 EMS M/NM 3 1 80+ 6000 0,7
DA-WATERASHPLED U25 LOA DALI 90 90 48 DALI M/NM 1 1 80+ 6000 0,6
DA-WAYBREADPLED U27 LOA DALI 90 90 48 DALI M/NM 3 1 80+ 6000 0,7
DA-WHITEASHLV U32 LOA 90 90 48 CLV x 1 80+ 6000 0,6

DA-WATERASHPLED J10 LER 90 90 48 M/NM 1 3 80+ 6000 0,7
DA-WAYBREADPLED J12 LER 90 90 48 M/NM 3 3 80+ 6000 0,7
DA-WATERASHPLED J10 LER AUT 90 90 48 M/NM 1 3 80+ 6000 0,7
DA-WAYBREADPLED J12 LER AUT 90 90 48 M/NM 3 3 80+ 6000 0,7
DA-WHITEASH EBLED C320 LER 90 90 48 CEB x 3 80+ 6000 0,7
DA-WATERASHPLED J10 LER EMS 90 90 48 EMS M/NM 1 3 80+ 6000 0,7
DA-WAYBREADPLED J12 LER EMS 90 90 48 EMS M/NM 3 3 80+ 6000 0,7
DA-WATERASHPLED J10 LER DALI 90 90 48 DALI M/NM 1 3 80+ 6000 0,7
DA-WAYBREADPLED J12 LER DALI 90 90 48 DALI M/NM 3 3 80+ 6000 0,7
DA-WHITEASHLV U33 LER 90 90 48 CLV x 3 80+ 6000 0,7

DA-WATERASHPLED J10 LOA 90 90 48 M/NM 1 3 80+ 6000 0,7
DA-WAYBREADPLED J12 LOA 90 90 48 M/NM 3 3 80+ 6000 0,7
DA-WATERASHPLED J10 LOA AUT 90 90 48 M/NM 1 3 80+ 6000 0,7
DA-WAYBREADPLED J12 LOA AUT 90 90 48 M/NM 3 3 80+ 6000 0,7
