Description

DA-AMYROOT

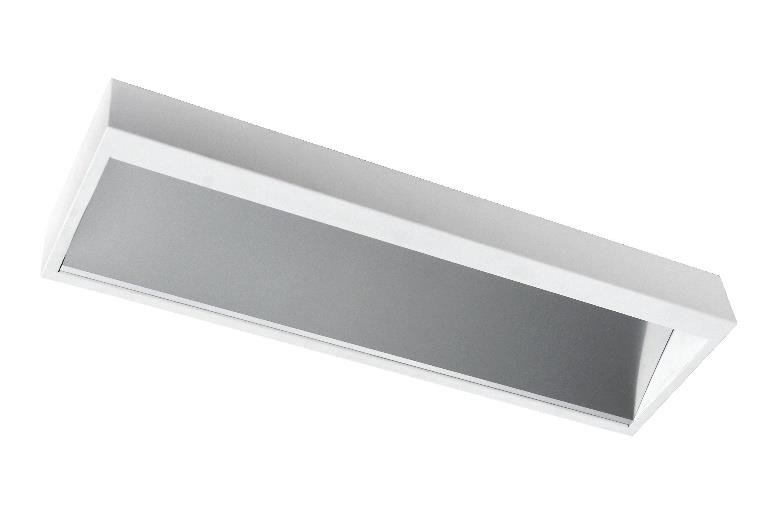

Luminaires Surface mounted LED luminaire
direct
asymmetrical matt aluminum reflector, opal PMMA diffuser
steel
white (RAL9003 S)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK02
Operating temperature range, ta 0+35
On the ceiling. Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, retail, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
OP LT80 Opal diffuser with high light transmittance
DALI Driver with DALI interface and switch -control dimming
EM3 Emergency version 3 hours EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous
testing system, 3 hours
EM3D Emergency version 3 hours with DALI interface
RAL RAL colour

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-AMYROOT1x1550 G878 T830 OP
LT80 595 185 60 1450 13,6 106 80+ 3000 2,0
DA-AMYROOT1x2100 G879 T830 OP
LT80 595 185 60 1993 19,5 102 80+ 3000 2,0
DA-AMYROOT1x3050 G880 T830 OP
LT80 1195 185 60 2899 25,7 113 80+ 3000 3,6
DA-AMYROOT1x4200 G881 T830 OP
LT80 1195 185 60 3985 37,8 105 80+ 3000 3,6
DA-AMYROOT1x1550 G878 T840 OP
LT80 595 185 60 1518 13,6 111 80+ 4000 2,0
DA-AMYROOT1x2100 G879 T840 OP
LT80 595 185 60 2086 19,5 107 80+ 4000 2,0
DA-AMYROOT1x3050 G880 T840 OP
LT80 1195 185 60 3035 25,8 118 80+ 4000 3,6
DA-AMYROOT1x4200 G881 T840 OP
LT80 1195 185 60 4173 37,8 110 80+ 4000 3,6
