Description

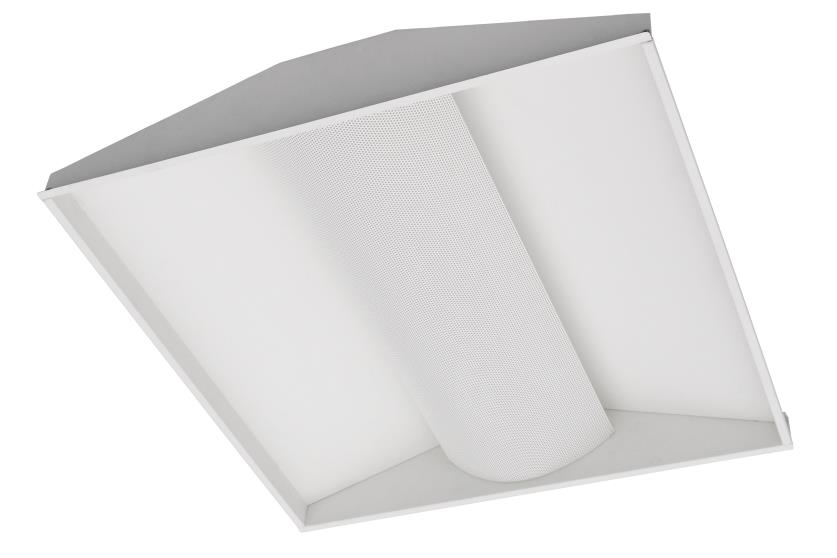

DA-BAOBAB

indirect
white perforated steel louver with soft light distribution, opal polycarbonate film
steel
white (RAL9003)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP 20
IK0 2
Operating temperature range, ta 0+35
In modular suspended ceilings (600), in ceilings with cut -out openings (mounting frame to be ordered separately). Push -in terminal,
3x2x2.5mm2
Indoor

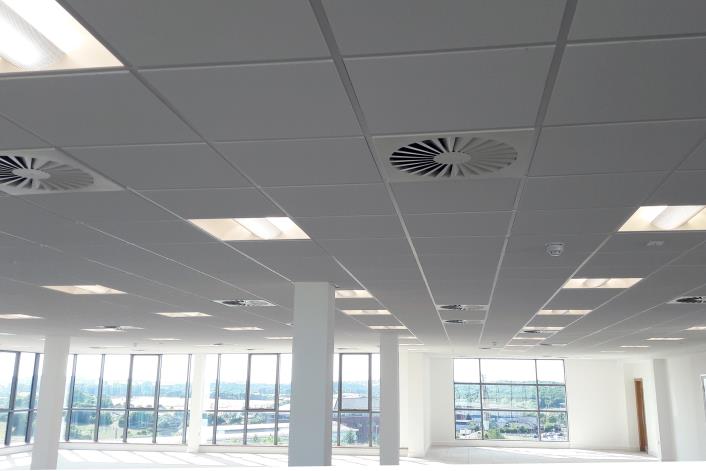

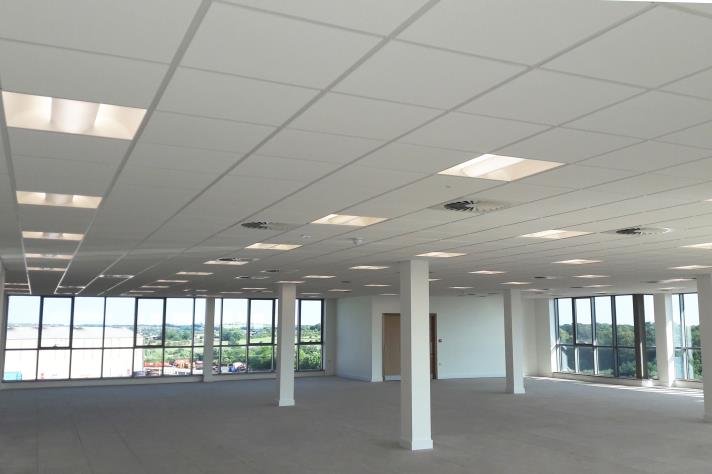

Office, education, corridor, retail, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
BLT Integrated wireless control unit and driver for lighting
control via mobile device (via Bluetooth)
COR Driver with Corridor function (never off)
COR1min Driver with Corridor function 1min (switch off after 1 min.)
COR30min Driver with Corridor function 30min (switch off after 30
min.)
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology) EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
WIE3 3-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector
WIE5 5-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector
WIE5D 5-DA-COMMONTANSY DALI “Wieland – gesis classic” type or compatible
connector
Schuko -1.5m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 1.5m cable
Schuko -3.0m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 3.0m cable
STANDARD Recessed MTG FRAME S626x626 RAL9003
Frame for LED luminaire 595x595mm installation into
plasterboard ceiling (1pcs), white steel

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* , W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight, kg
DA-BAOBAB1x2900 G359 T830 595 595 125 2746 26,5 104 80+ 3000 3,8
DA-BAOBAB1x3700 G360 T830 595 595 125 3471 34,5 101 80+ 3000 3,8
DA-BAOBAB1x4200 G361 T830 595 595 125 3980 41,0 97 80+ 3000 3,8
DA-BAOBAB1x2900 G359 T840 595 595 125 2895 26,5 109 80+ 4000 3,8
DA-BAOBAB1x3700 G360 T840 595 595 125 3658 34,5 106 80+ 4000 3,8
DA-BAOBAB1x4200 G361 T840 595 595 125 4194 41,0 102 80+ 4000 3,8
