Description

DA-BEARCORN

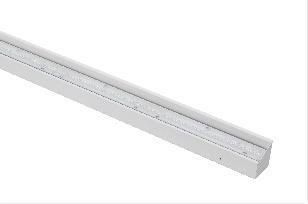

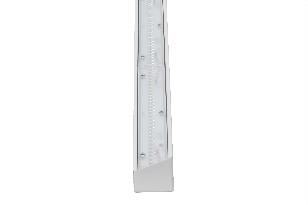

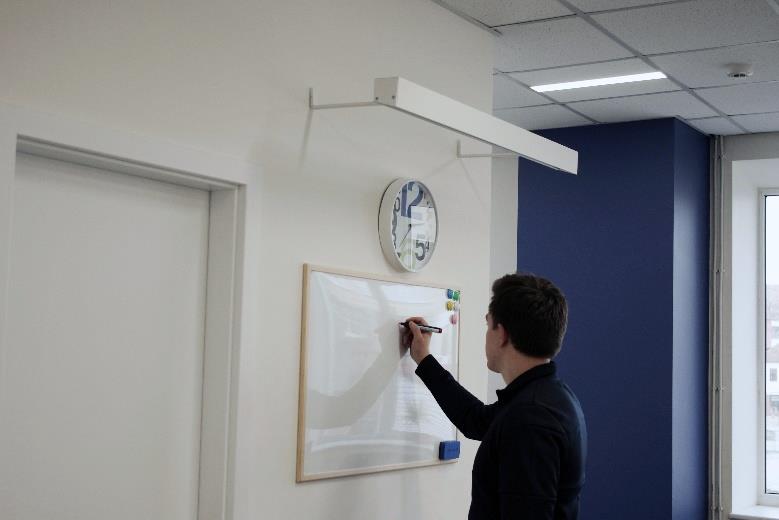

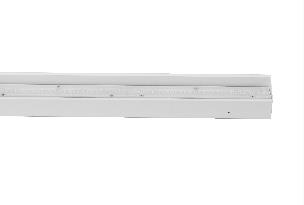

Luminaires Suspended LED batten luminaire for blackboard illumination
direct
lenses
steel
white (RAL9003)
MDA- 220-240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP40
IK05
Operating temperature range, ta 0+35

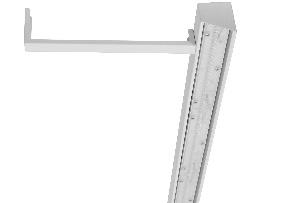

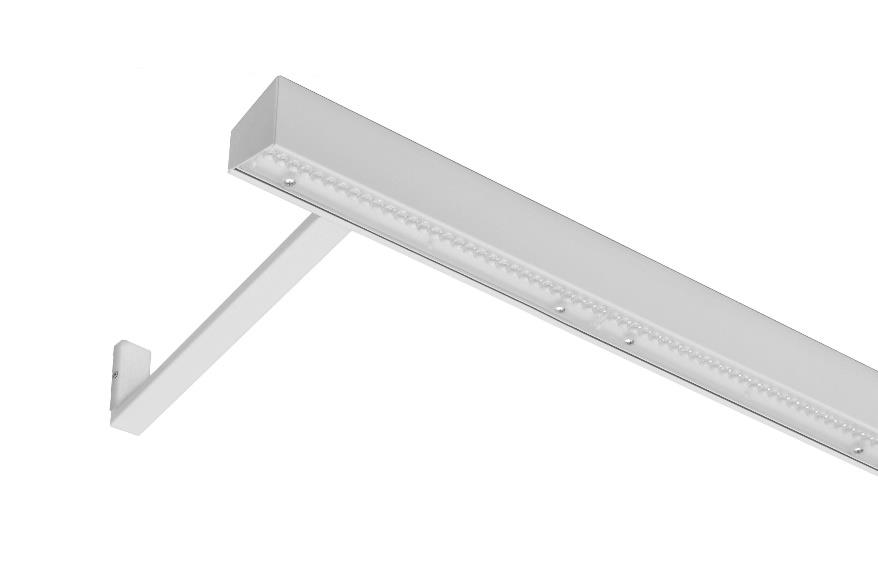

Suspended (wire, cable and cap to be ordered separately), on the wall (mounting brackets to be ordered separately). Push -in terminal,
3x2x2.5mm2
Indoor
Education

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
*note – Operating temperature range for Luminaires with EM option, ta 0…
+35 CBF3 -2.0m clear Cable 3×0.75mm for suspended luminaire up to 2.0
meters, transparent
CBF3 -3.0m clear Cable 3×0.75mm for suspended luminaire up to 3.0
meters, transparent
CBF5 -2.0m clear Cable 5×0.75mm for suspended luminaire up to 2.0
meters, transparent
CBF5 -3.0m clear Cable 5×0.75mm for suspended luminaire up to 3.0
meters, transparent
RAL RAL colour

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-BEARCORN1x2750 G675 T830 L1A18 1140 60 68 2606 15,9 164 80+ 3000 2,0
DA-BEARCORN1x3800 G676 T830 L1A18 1140 60 68 3564 22,6 158 80+ 3000 2,0
DA-BEARCORN1x3450 G677 T830 L1A18 1420 60 68 3258 19,2 170 80+ 3000 2,3
DA-BEARCORN1x4700 G678 T830 L1A18 1420 60 68 4456 27,9 160 80+ 3000 2,3
DA-BEARCORN1x2750 G675 T840 L1A18 1140 60 68 2747 15,9 173 80+ 4000 2,0
DA-BEARCORN1x3800 G676 T840 L1A18 1140 60 68 3757 22,6 166 80+ 4000 2,0
DA-BEARCORN1x3450 G677 T840 L1A18 1420 60 68 3434 19,2 179 80+ 4000 2,3
DA-BEARCORN1x4700 G678 T840 L1A18 1420 60 68 4696 27,9 168 80+ 4000 2,3
