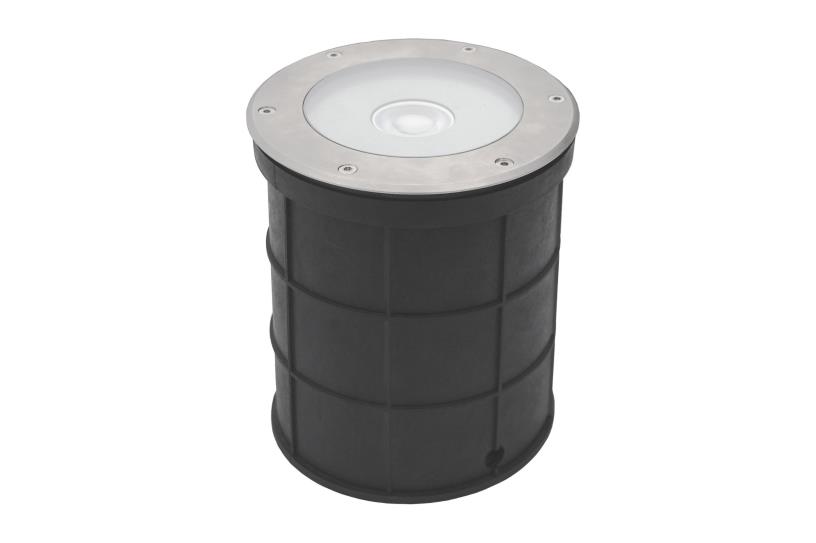

DA-BITTERCRESS M LED

direct lens, tempered glass diffuser, impact resistant aluminium, dark grey, RAL7043 stainless -steel, brushed

Mains voltage:

MDA – 220 -240V, 50 -60Hz

LED lifetime:

40000/L80B50 (40000/L70B50 for model D456)

SDCM:

3

Protection class IEC:

I

Ingress protection code:

IP67

Mechanical impact resistance:

IK10

Operating temperature range:

ta -25+40

In the gDA-INDIANHEMP (requires a cut – 205×237 mm). Cable, 1.0m, 3×1.5 mm2

Environment:

Outdoor

Application:

Facade illumination, public space

Product Length, mm Width, mm Height, mm Luminaire output*, lm System power*, W System efficacy*, lm/W CRI * (Ra) CCT*, K Weight, kg DA-BITTERCRESS M LED1x1100 D454 T830 L30 200 200 235 1031 9,6 107 80+ 3000 4,5 DA-BITTERCRESS M LED1x1500 D455 T830 L30 200 200 235 1415 13,1 108 80+ 3000 4,5 DA-BITTERCRESS M LED1x2000 D456 T830 L30 200 200 235 1964 19,4 101 80+ 3000 4,5 DA-BITTERCRESS M LED1x1100 D454 T840 L30 200 200 235 1058 9,6 110 80+ 4000 4,5 DA-BITTERCRESS M LED1x1500 D455 T840 L30 200 200 235 1451 13,1 110 80+ 4000 4,5 DA-BITTERCRESS M LED1x2000 D456 T840 L30 200 200 235 2013 19,4 104 80+ 4000 4,5 DA-BITTERCRESS M LED1x1100 D454 T830 L45 200 200 235 1031 9,6 107 80+ 3000 4,5 DA-BITTERCRESS M LED1x1500 D455 T830 L45 200 200 235 1415 13,1 108 80+ 3000 4,5 DA-BITTERCRESS M LED1x2000 D456 T830 L45 200 200 235 1964 19,4 101 80+ 3000 4,5 DA-BITTERCRESS M LED1x1100 D454 T840 L45 200 200 235 1058 9,6 110 80+ 4000 4,5 DA-BITTERCRESS M LED1x1500 D455 T840 L45 200 200 235 1451 13,1 110 80+ 4000 4,5 DA-BITTERCRESS M LED1x2000 D456 T840 L45 200 200 235 2013 19,4 104 80+ 4000 4,5 DA-BITTERCRESS M LED1x1100 D454 T830 L60 200 200 235 1059 9,6 110 80+ 3000 4,5 DA-BITTERCRESS M LED1x1500 D455 T830 L60 200 200 235 1452 13,1 110 80+ 3000 4,5 DA-BITTERCRESS M LED1x2000 D456 T830 L60 200 200 235 2016 19,4 104 80+ 3000 4,5 DA-BITTERCRESS M LED1x1100 D454 T840 L60 200 200 235 1086 9,6 113 80+ 4000 4,5 DA-BITTERCRESS M LED1x1500 D455 T840 L60 200 200 235 1489 13,1 113 80+ 4000 4,5 DA-BITTERCRESS M LED1x2000 D456 T840 L60 200 200 235 2067 19,4 106 80+ 4000 4,5 DA-BITTERCRESS M LED1x1100 D454 T830 LA1 200 200 235 1059 9,6 110 80+ 3000 4,5 DA-BITTERCRESS M LED1x1500 D455 T830 LA1 200 200 235 1452 13,1 110 80+ 3000 4,5 DA-BITTERCRESS M LED1x2000 D456 T830 LA1 200 200 235 2016 19,4 104 80+ 3000 4,5 DA-BITTERCRESS M LED1x1100 D454 T840 LA1 200 200 235 1086 9,6 113 80+ 4000 4,5 DA-BITTERCRESS M LED1x1500 D455 T840 LA1 200 200 235 1489 13,1 113 80+ 4000 4,5 DA-BITTERCRESS M LED1x2000 D456 T840 LA1 200 200 235 2067 19,4 106 80+ 4000 4,

SDCM:

5

Protection class IEC:

DA-BITTERCRESS M LED1x1100 D454 T830 L30 SQUARE 200 200 235 1031 9,6 107 80+ 3000 4,5 DA-BITTERCRESS M LED1x1500 D455 T830 L30 SQUARE 200 200 235 1415 13,1 108 80+ 3000 4,5 DA-BITTERCRESS M LED1x2000 D456 T830 L30 SQUARE 200 200 235 1964 19,4 101 80+ 3000 4,5 DA-BITTERCRESS M LED1x1100 D454 T840 L30 SQUARE 200 200 235 1058 9,6 110 80+ 4000 4,5 DA-BITTERCRESS M LED1x1500 D455 T840 L30 SQUARE 200 200 235 1451 13,1 110 80+ 4000 4,5 DA-BITTERCRESS M LED1x2000 D456 T840 L30 SQUARE 200 200 235 2013 19,4 104 80+ 4000 4,5 DA-BITTERCRESS M LED1x1100 D454 T830 L45 SQUARE 200 200 235 1031 9,6 107 80+ 3000 4,5 DA-BITTERCRESS M LED1x1500 D455 T830 L45 SQUARE 200 200 235 1415 13,1 108 80+ 3000 4,5 DA-BITTERCRESS M LED1x2000 D456 T830 L45 SQUARE 200 200 235 1964 19,4 101 80+ 3000 4,5 DA-BITTERCRESS M LED1x1100 D454 T840 L45 SQUARE 200 200 235 1058 9,6 110 80+ 4000 4,5 DA-BITTERCRESS M LED1x1500 D455 T840 L45 SQUARE 200 200 235 1451 13,1 110 80+ 4000 4,5 DA-BITTERCRESS M LED1x2000 D456 T840 L45 SQUARE 200 200 235 2013 19,4 104 80+ 4000 4,5 DA-BITTERCRESS M LED1x1100 D454 T830 L60 SQUARE 200 200 235 1059 9,6 110 80+ 3000 4,5 DA-BITTERCRESS M LED1x1500 D455 T830 L60 SQUARE 200 200 235 1452 13,1 110 80+ 3000 4,5
