Description

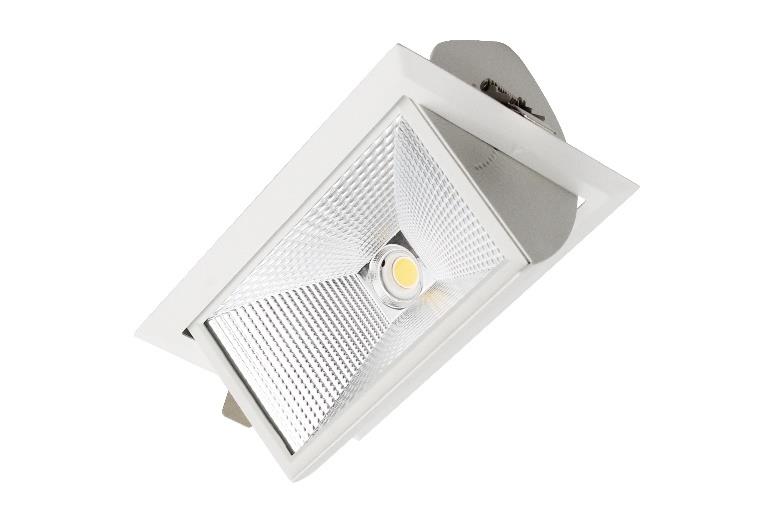

DA-BITTERWEED

direct
faceted aluminium reflector, 60 , tilting 90 , tempered glass diffuser
aluminium
white (RAL 9016)
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 60000/L80B10 (T930, T940: 50000/L80B10)
3
II
IP40
IK02
Operating temperature range, ta 0+35
In ceilings with cut-out openings (mounting brackets included). Push -in terminal, 2x1x1.5mm2
Indoor
Retail, showroom, exhibition, public place

A spotlight ensures flexibility by adjusting luminaire according to your
requirements

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-BITTERWEED1x1900 D744 T830 R60 236 146 107 1820 13,5 135 80+ 3000 2,5
DA-BITTERWEED1x2550 D745 T830 R60 236 146 107 2473 19,8 125 80+ 3000 2,5
DA-BITTERWEED1x3350 D746 T830 R60 236 146 107 3329 27,1 123 80+ 3000 2,5
DA-BITTERWEED1x4250 J206 T830 R60 236 146 107 4175 35,1 119 80+ 3000 2,5
DA-BITTERWEED1x4800 D787 T830 R60 236 146 107 4768 42,1 113 80+ 3000 2,5
DA-BITTERWEED1x5250 D747 T830 R60 236 146 107 5303 46,6 114 80+ 3000 2,5
DA-BITTERWEED1x1900 D744 T840 R60 236 146 107 1924 13,5 143 80+ 4000 2,5
DA-BITTERWEED1x2550 D745 T840 R60 236 146 107 2613 19,8 132 80+ 4000 2,5
DA-BITTERWEED1x3350 D746 T840 R60 236 146 107 3518 27,1 130 80+ 4000 2,5
DA-BITTERWEED1x4250 J206 T840 R60 236 146 107 4414 35,1 126 80+ 4000 2,5
DA-BITTERWEED1x4800 D787 T840 R60 236 146 107 5041 42,1 120 80+ 4000 2,5
DA-BITTERWEED1x5250 D747 T840 R60 236 146 107 5606 46,6 120 80+ 4000 2,5
DA-BITTERWEED1x1900 D744 T930 R60 236 146 107 1543 13,3 116 90+ 3000 2,5
DA-BITTERWEED1x2550 D745 T930 R60 236 146 107 2114 19,3 110 90+ 3000 2,5
DA-BITTERWEED1x3350 D746 T930 R60 236 146 107 2872 26,4 109 90+ 3000 2,5
DA-BITTERWEED1x4250 J206 T930 R60 236 146 107 3563 35,1 102 90+ 3000 2,5
DA-BITTERWEED1x4800 D787 T930 R60 236 146 107 4069 42,1 97 90+ 3000 2,5
DA-BITTERWEED1x5250 D747 T930 R60 236 146 107 4526 46,6 97 90+ 3000 2,5
DA-BITTERWEED1x1900 D744 T940 R60 236 146 107 1625 13,3 122 90+ 4000 2,5
DA-BITTERWEED1x2550 D745 T940 R60 236 146 107 2228 19,3 115 90+ 4000 2,5
DA-BITTERWEED1x3350 D746 T940 R60 236 146 107 3028 26,4 115 90+ 4000 2,5
DA-BITTERWEED1x4250 J206 T940 R60 236 146 107 3756 35,1 107 90+ 4000 2,5
DA-BITTERWEED1x4800 D787 T940 R60 236 146 107 4289 42,1 102 90+ 4000 2,5
DA-BITTERWEED1x5250 D747 T940 R60 236 146 107 4770 46,6 102 90+ 4000 2,5
