Description

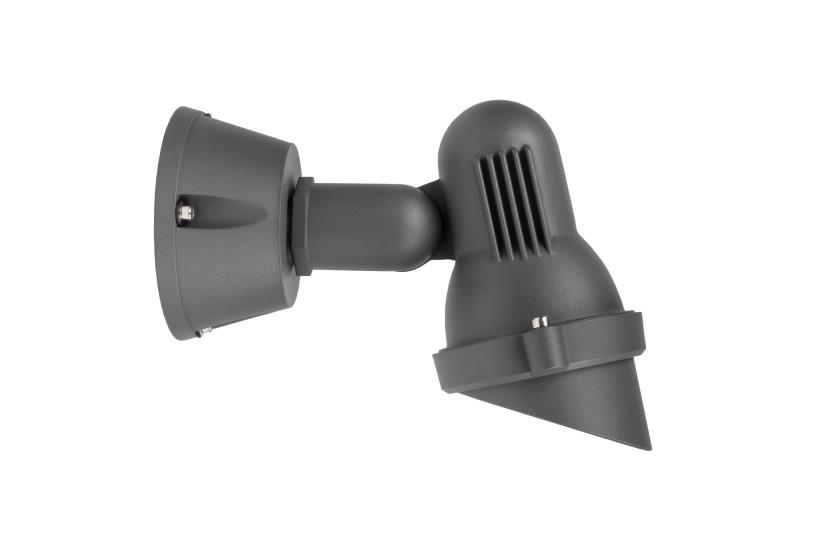

DA-BLACKIEHEAD LED

direct
tempered glass diffuser, impact resistant
aluminium
dark grey, RAL7043 MDA- 220 -240V, 50 -60Hz
LED lifetime, 15000/L70B50
I
IP65
IK08
Operating temperature range, ta -25+40
On the wall. Screw terminal, 3×2.5 mm2
Outdoor
Facade illumination

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80 + RAL RAL colour

STANDARD

Product Length
, mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-BLACKIEHEAD 1GU10 Q87 150 101 210 0,7
DA-BLACKIEHEAD 1GU10 Q88 LONG 150 101 605 1,2

DA-BLACKIEHEAD1x400 G870 T830 L40 150 101 210 380 4,2 90 80+ 3000 1,4
DA-BLACKIEHEAD1x400 G871 T830 LONG L40 150 101 605 380 4,2 90 80+ 3000 1,4
DA-BLACKIEHEAD1x400 G870 T840 L40 150 101 210 397 4,2 95 80+ 4000 1,4
DA-BLACKIEHEAD1x400 G871 T840 LONG L40 150 101 605 397 4,2 95 80+ 4000 1,4
