DA-BLUEASH

direct opal polycarbonate diffuser/ matt micro -prismatic polycarbonate diffuser, low glare

Housing:

aluminium

Colour:

white (RAL9003 S)

Mains voltage:

MDA – 220 -240V, 0/50/60Hz

LED lifetime:

50000/L80B10

SDCM:

3

Protection class IEC:

I

Ingress protection code:

IP40

(

Ingress protection code:

IP44

optional)

Mechanical impact resistance:

IK05

Glow wire test, 650

Operating temperature range:

ta -15+35

Installation:

In ceilings with cut -out openings (mounting brackets included), with L/LL option is designed for in -line connection. Push -in terminal, 3x2x2.5mm2

Environment:

Indoor

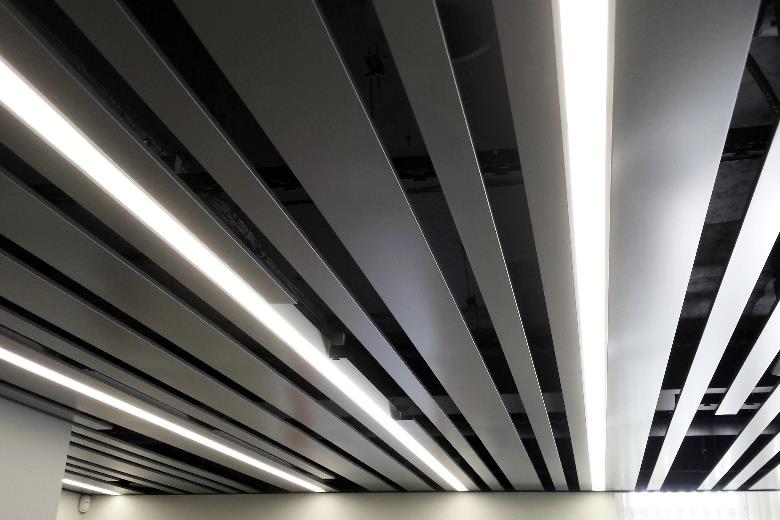

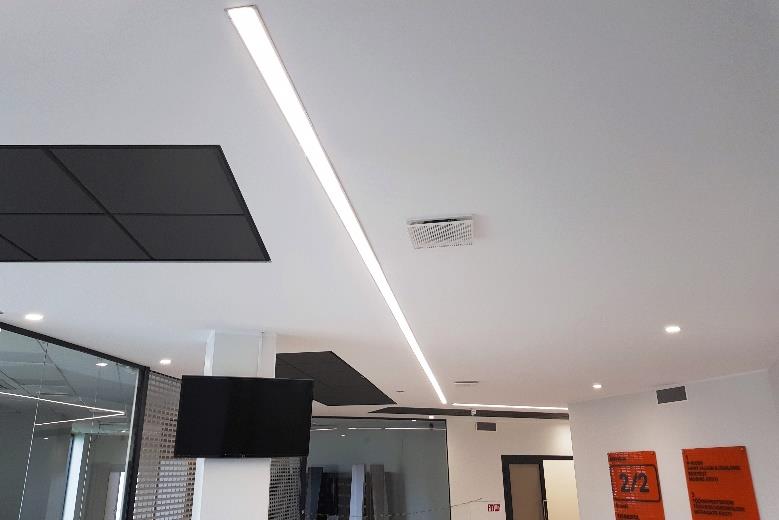

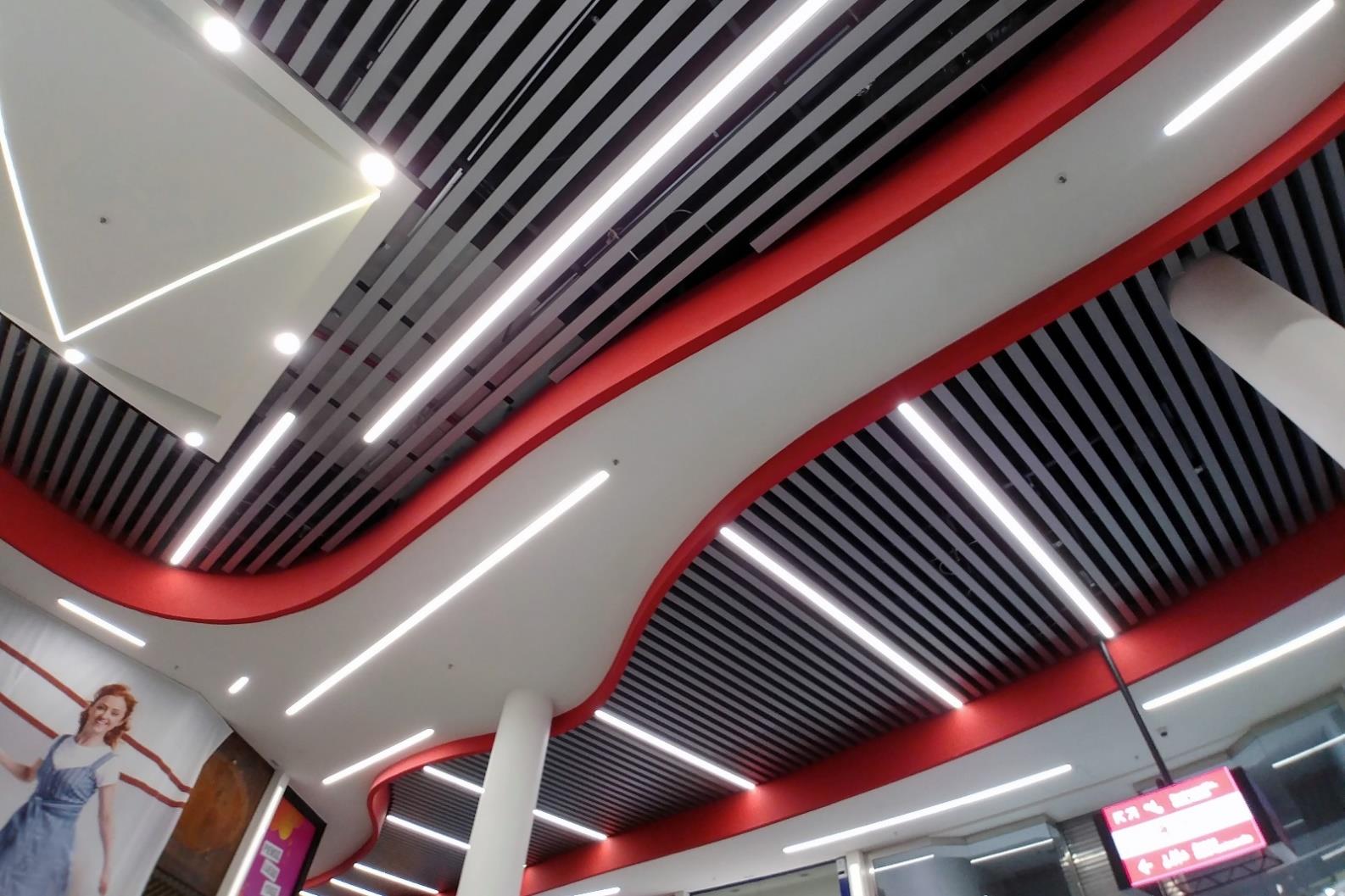

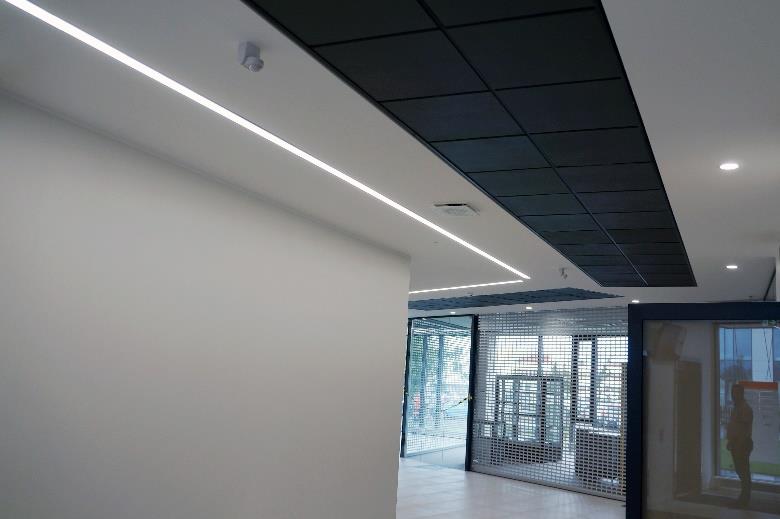

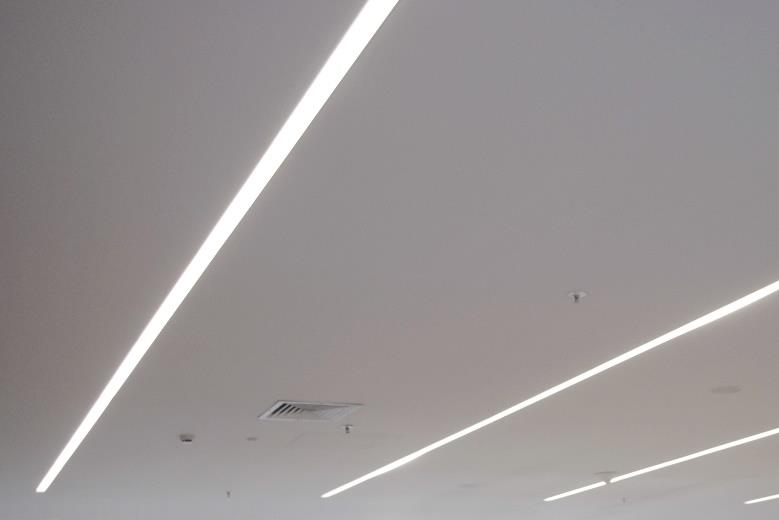

Application:

Office, education, hotel, corridor, retail, public place
