Description

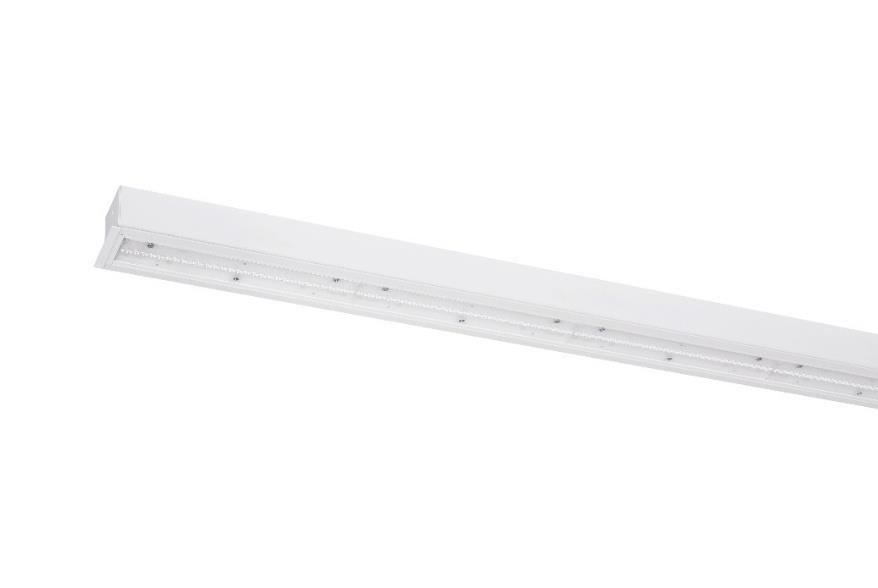

DA-BLUEASH O LED

direct
lenses
aluminium
white (RAL9003 S)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP40
IK05
Operating temperature range, ta 0+35
In ceilings with cut -out openings (mounting brackets included). with L/LL option is designed for in -line connection. Push -in terminal,
3x2x2.5mm2
Indoor
Office, education, hotel, corridor, retail, public place

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-BLUEASH O LED1x3800 J307 T830 L75
LO1 SB 1164 77 68 3602 21,8 165 80+ 3000 2,5
DA-BLUEASH O LED1x5300 J308 T830 L75
LO2 SB 1164 77 68 4990 31,7 157 80+ 3000 2,5
DA-BLUEASH O LED1x5550 J309 T830 L75
LO3 SB 1164 77 68 5240 30 175 80+ 3000 2,5
DA-BLUEASH O LED1x6600 J310 T830 L75
LO4 SB 1164 77 68 6230 35,9 174 80+ 3000 2,5
DA-BLUEASH O LED1x7600 J311 T830 L75
LO5 SB 1164 77 68 7166 41,6 172 80+ 3000 2,5
DA-BLUEASH O LED1x4750 J312 T830 L75
LO1 SB 1444 77 68 4502 27 167 80+ 3000 2,9
DA-BLUEASH O LED1x6600 J313 T830 L75
LO2 SB 1444 77 68 6238 38,7 161 80+ 3000 2,9
DA-BLUEASH O LED1x6950 J314 T830 L75
LO3 SB 1444 77 68 6550 36,7 178 80+ 3000 2,9
DA-BLUEASH O LED1x8250 J315 T830 L75
LO4 SB 1444 77 68 7788 44,4 175 80+ 3000 2,9
DA-BLUEASH O LED1x9450 J316 T830 L75
LO5 SB 1444 77 68 8958 51,5 174 80+ 3000 2,9
DA-BLUEASH O LED1x9500 J317 T830 L75
LO1 SB 2847 77 68 9004 51,6 174 80+ 3000 5,8
DA-BLUEASH O LED1x13150 J318 T830 L75
LO2 SB 2847 77 68 12476 75 166 80+ 3000 5,8
DA-BLUEASH O LED1x13850 J319 T830 L75
LO3 SB 2847 77 68 13099 72,7 180 80+ 3000 5,8
DA-BLUEASH O LED1x16450 J320 T830 L75
LO4 SB 2847 77 68 15576 87 179 80+ 3000 5,8
DA-BLUEASH O LED1x18900 J321 T830 L75
LO5 SB 2847 77 68 17916 101,9 176 80+ 3000 5,8
DA-BLUEASH O LED1x3800 J307 T840 L75
LO1 SB 1164 77 68 3796 21,8 174 80+ 4000 2,5
DA-BLUEASH O LED1x5300 J308 T840 L75
LO2 SB 1164 77 68 5260 31,7 166 80+ 4000 2,5
DA-BLUEASH O LED1x5550 J309 T840 L75
LO3 SB 1164 77 68 5523 30 184 80+ 4000 2,5
DA-BLUEASH O LED1x6600 J310 T840 L75
LO4 SB 1164 77 68 6567 35,9 183 80+ 4000 2,5
DA-BLUEASH O LED1x7600 J311 T840 L75
LO5 SB 1164 77 68 7554 41,6 182 80+ 4000 2,5
