Description

DA-BOLEANBIRCH

Outdoor Accent Lighting Surface or gDA-INDIANHEMP -mounted LED luminaire
direct
tempered glass diffuser, impact resistant
aluminium
dark grey (RAL7043)
MDA- 220 -240V, 50 -60Hz
I
IP65
IK08
Operating temperature range, ta -25+40
On the horizontal or vertical surface, on the gDA-INDIANHEMP or in the gDA-INDIANHEMP. Cable, 0.35m, 3×1.0mm2
Outdoor
Facade illumination , park, public space

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI CCT*,
K Weight,
kg
DA-BOLEANBIRCH 1GU10 O11 HOL 98 98 158 0,34
DA-BOLEANBIRCH 1GU10 O12 GRO 98 98 328 0,38

DA-BOLEANBIRCH1x400 G872 T830 HOL L40 98 98 159 375 4,2 89 80+ 3000 0,34
DA-BOLEANBIRCH1x400 G873 T830 GRO L40 98 98 328 375 4,2 89 80+ 3000 0,38
DA-BOLEANBIRCH1x400 G872 T840 HOL L40 98 98 158 392 4,2 93 80+ 4000 0,34
DA-BOLEANBIRCH1x400 G873 T840 GRO L40 98 98 328 392 4,2 93 80+ 4000 0,38
* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and improving its products. The
right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
L40 LED bulb with 40 beam DA-WHITEMAPLE

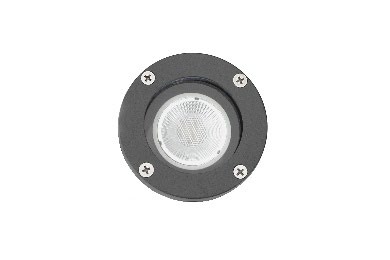

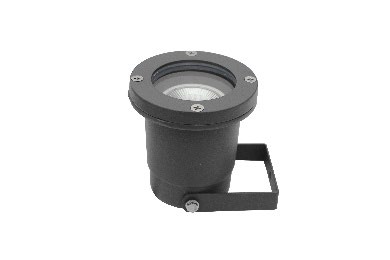

LOUVER DA-CANEASHative louver HOL Holder for wall -mounted version

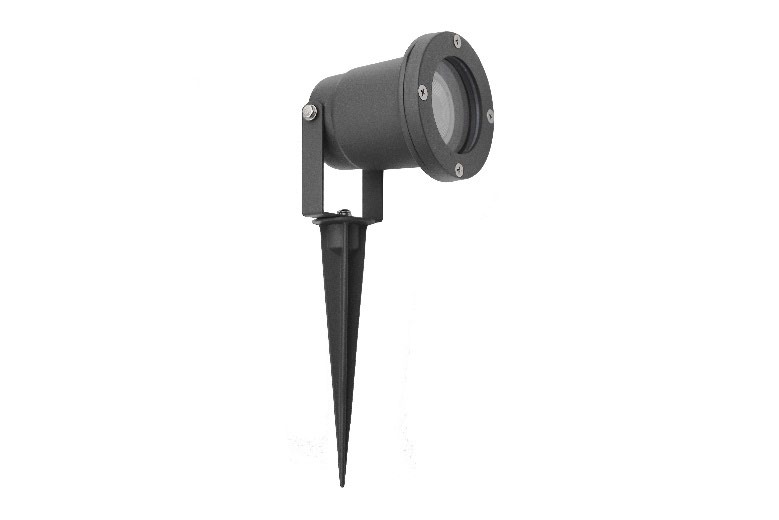

GRO GDA-INDIANHEMP spike for gDA-INDIANHEMP -mounted version
RAL RAL colour

L40
