Description

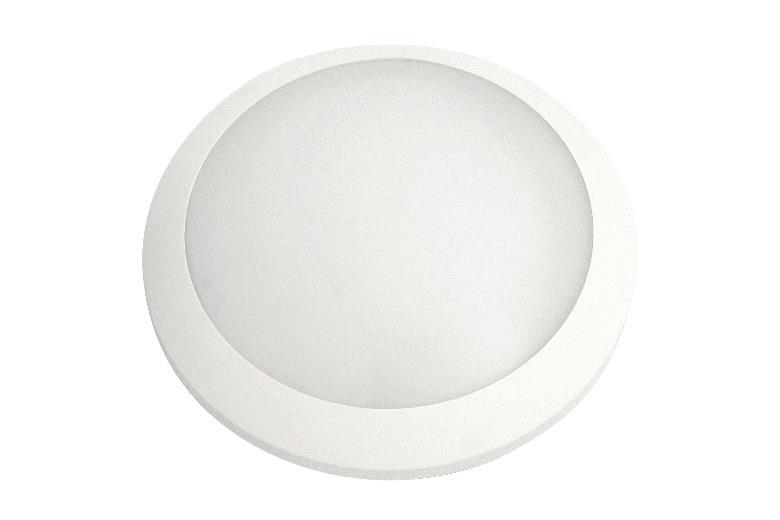

DA-BOXELDER

direct
opal acrylic diffuser, UV resistant
thermoplastic
white
MDA- 220 -240V, 50/60Hz
LED lifetime, 50000/L80B10
3
II
IP65
IK08
Operating temperature range, ta -15+35 (from 0 C with EM3)
On the ceiling or wall. Push -in terminal, 2x2x2.5mm2 (Screw terminal, 2×1.5mm2 for E27 version)
Indoor/outdoor with roof
Office, education, hotel, corridor, staircase, healthcare, bathroom, public place, parking area
Luminaire is available in dark grey body (DGREY). For more information see the option list.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-BOXELDER 1E27 T80 1G 295 295 100 1,0
DA-BOXELDER1x1200 D501 T830 295 295 100 1046 9,3 112 80+ 3000 1,1
DA-BOXELDER1x1650 D502 T830 295 295 100 1460 13,5 108 80+ 3000 1,1
DA-BOXELDER1x1200 D501 T840 1G 295 295 100 1102 9,3 119 80+ 4000 1,1
DA-BOXELDER1x1650 D502 T840 1G 295 295 100 1539 13,5 114 80+ 4000 1,1

DA-BOXELDER 1E27 T80 MW 1G 295 295 100 1,0
DA-BOXELDER1x1200 D501 T840 MW 1G 295 295 100 1102 9,3 119 80+ 4000 1,1
DA-BOXELDER1x1650 D502 T840 MW 1G 295 295 100 1539 13,5 114 80+ 4000 1,1

DA-BOXELDER 1E27 T80 DGREY 295 295 100 1,0
DA-BOXELDER1x1200 D501 T830 DGREY 295 295 100 1046 9,3 112 80+ 3000 1,1
DA-BOXELDER1x1650 D502 T830 DGREY 295 295 100 1460 13,5 108 80+ 3000 1,1
DA-BOXELDER1x1200 D501 T840 DGREY 295 295 100 1102 9,3 119 80+ 4000 1,1
DA-BOXELDER1x1650 D502 T840 DGREY 295 295 100 1539 13,5 114 80+ 4000 1,1

DA-BOXELDER 1E27 T80 BLACK 295 295 100 1,0
DA-BOXELDER1x1200 D501 T830 BLACK 295 295 100 1046 9,3 112 80+ 3000 1,1
DA-BOXELDER1x1650 D502 T830 BLACK 295 295 100 1460 13,5 108 80+ 3000 1,1
DA-BOXELDER1x1200 D501 T840 BLACK 295 295 100 1102 9,3 119 80+ 4000 1,1
DA-BOXELDER1x1650 D502 T840 BLACK 295 295 100 1539 13,5 114 80+ 4000 1,1

DA-BOXELDER 1E27 T80 LOUVER 295 295 100 1,0
DA-BOXELDER1x1200 D501 T830 LOUVER 295 295 100 615 9,3 66 80+ 3000 1,1
DA-BOXELDER1x1650 D502 T830 LOUVER 295 295 100 859 13,5 63 80+ 3000 1,1
DA-BOXELDER1x1200 D501 T840 LOUVER 295 295 100 648 9,3 70 80+ 4000 1,1
DA-BOXELDER1x1650 D502 T840 LOUVER 295 295 100 906 13,5 67 80+ 4000 1,1

DA-BOXELDER 1E27 T80 LOUVER DGREY 295 295 100 1,0
DA-BOXELDER1x1200 D501 T830 LOUVER
DGREY 295 295 100 615 9,3 66 80+ 3000 1,1
DA-BOXELDER1x1650 D502 T830 LOUVER
DGREY 295 295 100 859 13,5 63 80+ 3000 1,1
