Description

DA-BROWNDAISY

direct

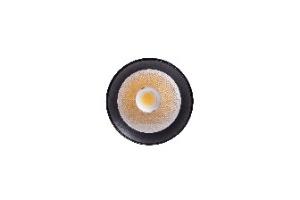

faceted aluminium reflector, clear PMMA diffuser
aluminium
white, RAL9016; black, RAL9017
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 50000 -55000 -60000/L80B10
3
I
IP20
IK02
Operating temperature range, ta 0+35

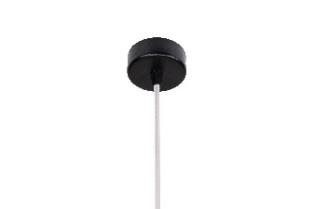

On the ceiling or suspended (cap and cable included). Cable, 1.1m, 3×0.75mm2
Indoor
Hotel, retail, showroom, exhibition, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
T930 Colour temperature 3000K, CRI 90+
T940 Colour temperature 4000K, CRI 90+
T820 MEAT Special spectrum for meat 2000K “pink”, CRI 80+
T831 MEAT&WHITE Special spectrum for meat products with increased
white colour contrast 3100K, CRI 80+
T825 BREAD Special spectrum for bread 2500K, CRI 80+
T930 VEGETABLES Special spectrum for colourful products. Fruits,
fashion 3000K, CRI 90+
T932 FASHION Special spectrum for fashion 3200K, CRI 90+
T931 FASHION&WHITE Special spectrum for fashion with dominant white
colour 3100K, CRI 90+
T927 NATURAL Colour temperature 2700K, CRI 95+ NATURAL
T930 NATURAL Colour temperature 3000K, CRI 95+ NATURAL
T940 NATURAL Colour temperature 4000K, CRI 95+ NATURAL
R24 Reflector with 24 light beam DA-WHITEMAPLE
R32 Reflector with 32 light beam DA-WHITEMAPLE
R45 Reflector with 45 light beam DA-WHITEMAPLE (standard)
R55 Reflector with 55 light beam DA-WHITEMAPLE
SR Luminaire for surface mounting
DALI Driver with DALI interface and switch -control
dimming
*note – Stucchi tracks are not compatible with switch -control dimming
Track Luminaire version with track adaptor designed to
be fixed into 4/6 -conductors surface/recessed
tracks. Track adaptor (3 -phase + N) with phase
selector
RAL9017 Black, RAL9017
RAL RAL colour

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-BROWNDAISY1x2300 J562 T830 R45 77 77 245 2153 15,5 139 80+ 3000 1,1
DA-BROWNDAISY1x2750 J563 T830 R45 77 77 245 2586 19,3 134 80+ 3000 1,1
DA-BROWNDAISY1x3250 J564 T830 R45 77 77 245 3042 22,9 133 80+ 3000 1,1
DA-BROWNDAISY1x2300 J562 T840 R45 77 77 245 2276 15,4 148 80+ 4000 1,1
DA-BROWNDAISY1x2750 J563 T840 R45 77 77 245 2734 19,3 142 80+ 4000 1,1
DA-BROWNDAISY1x3250 J564 T840 R45 77 77 245 3217 22,9 140 80+ 4000 1,1
