DA-CANEASH

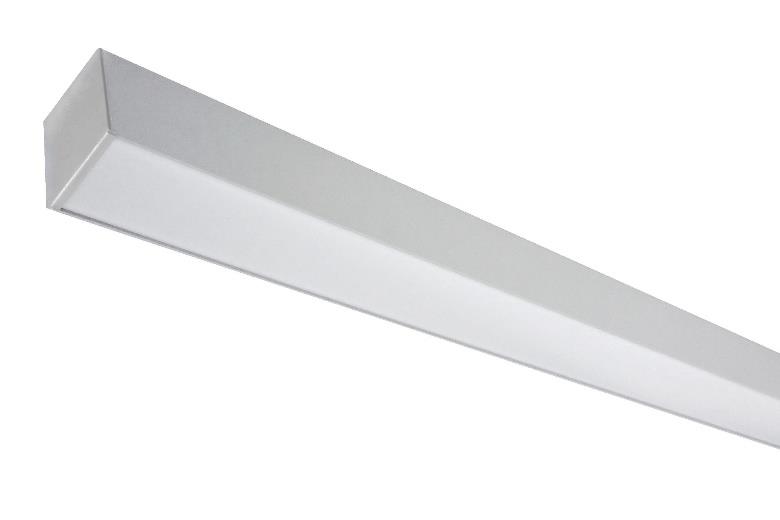

CORNER90 Aluminium Profile Luminaires Surface mounted or suspended LED luminaire direct opal polycarb onate diffuser /matt micro -prismatic polycarb onate diffuser, low glare

Housing:

aluminium

light grey (RAL9006S)

Mains voltage:

MDA – 220 -240V, 0/50/60Hz

LED lifetime:

50000/L80B10

SDCM:

3

Protection class IEC:

I

Ingress protection code:

IP40

Mechanical impact resistance:

IK05

Glow wire test, 650

Operating temperature range:

ta -15…+35

On the ceiling or suspended (wire, cable and cap to be ordered separately), with L/LL option is designed for in -line connection. Through wired, 3×1.5mm2, push -in terminal 3x2x2.5mm2 and supply cord

Environment:

Indoor

Application:

Office, education, hotel, retail, public place
