Description

DA-CANEASH LO LED LG

3

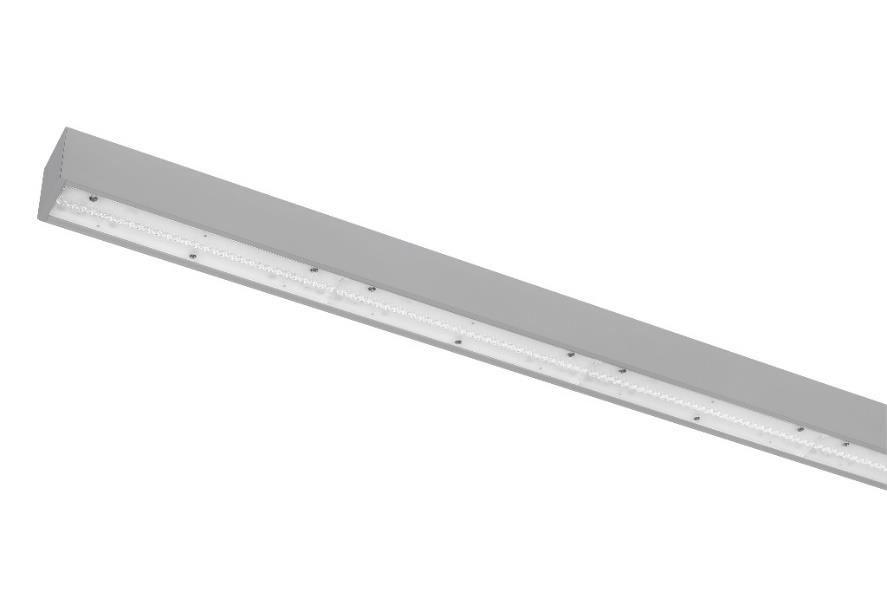

Aluminium Profile Luminaires Suspended slim profile LED luminaire for in -line connection
direct/indirect
lenses
aluminium
light grey (RAL9006S)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP 40
IK05
Operating temperature range, ta 0+35
Suspended (wire, cable and cap to be ordered separately), with L/LL option is designed for in -line connection. Push -in terminal,
3x2x2.5mm2
Indoor
Office, education, retail, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*, K Weight,
kg
DA-CANEASH LO LED1x3800/1800 J338
T830 L75 LG3 LO1 1148 58 75 5290 37,3 142 80+ 3000 2,7
DA-CANEASH LO LED1x5300/2450 J339
T830 L75 LG3 LO2 1148 58 75 7310 53,2 137 80+ 3000 2,7
DA-CANEASH LO LED1x4750/2150 J340
T830 L75 LG3 LO1 1428 58 75 6528 44,8 146 80+ 3000 3,2
DA-CANEASH LO LED1x6600/2950 J341
T830 L75 LG3 LO2 1428 58 75 9022 64,6 140 80+ 3000 3,2
DA-CANEASH LO LED1x9500/4250 J342
T830 L75 LG3 LO1 2831 58 75 13055 87,6 149 80+ 3000 6,6
DA-CANEASH LO LED1x13150/5850 J343
T830 L75 LG3 LO2 2831 58 75 18045 126,5 143 80+ 3000 6,6
DA-CANEASH LO LED1x3800/1800 J338
T840 L75 LG3 LO1 1148 58 75 5563 37,3 149 80+ 4000 2,7
DA-CANEASH LO LED1x5300/2450 J339
T840 L75 LG3 LO2 1148 58 75 7689 53,2 145 80+ 4000 2,7
DA-CANEASH LO LED1x4750/2150 J340
T840 L75 LG3 LO1 1428 58 75 6866 44,8 153 80+ 4000 3,2
DA-CANEASH LO LED1x6600/2950 J341
T840 L75 LG3 LO2 1428 58 75 9490 64,6 147 80+ 4000 3,2
DA-CANEASH LO LED1x9500/4250 J342
T840 L75 LG3 LO1 2831 58 75 13732 87,6 157 80+ 4000 6,6
DA-CANEASH LO LED1x13150/5850 J343
T840 L75 LG3 LO2 2831 58 75 18980 126,5 150 80+ 4000 6,6
