Description

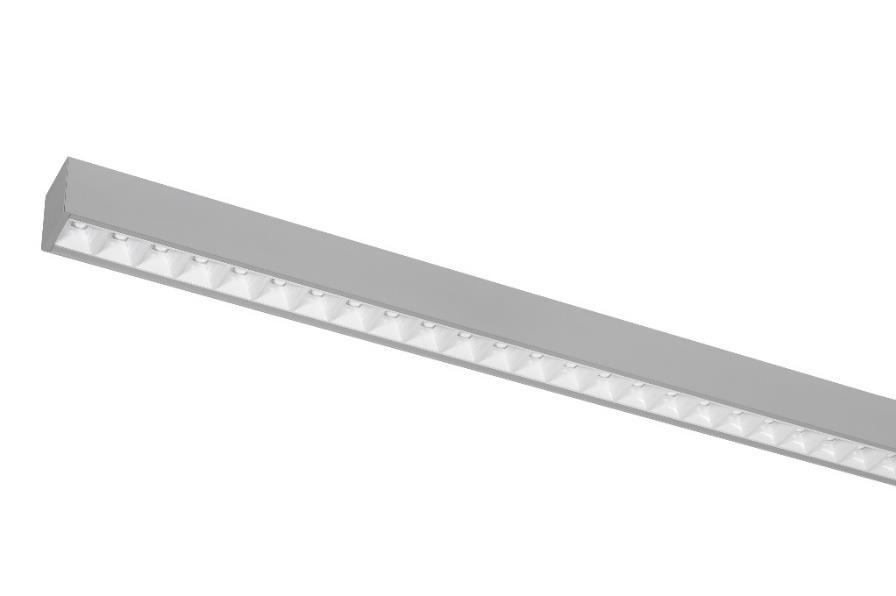

DA-CANEASH LP LED

direct/indirect
double parabolic reflector with lenses, low glare
aluminium
light grey, RAL9006S
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 100000/L80B10
3
I
IP40
IK05
Operating temperature range, ta 0+35
Suspended (wire, cable and cap to be ordered separately), with L/LL option is designed for in -line connection. Push -in terminal,
3x2x2.5mm2
Indoor
Office, education, retail, public place

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-CANEASH LP LED1x2950/1050 J322
T830 WGC LG3 LO1 1134 58 75 3769 25,5 148 80+ 3000 2,7
DA-CANEASH LP LED1x3600/1300 J323
T830 WGC LG3 LO2 1134 58 75 4627 32,2 144 80+ 3000 2,7
DA-CANEASH LP LED1x4250/1550 J324
T830 WGC LG3 LO3 1134 58 75 5453 38,5 142 80+ 3000 2,7
DA-CANEASH LP LED1x4900/1800 J325
T830 WGC LG3 LO4 1134 58 75 6290 45,3 139 80+ 3000 2,7
DA-CANEASH LP LED1x3650/1300 J326
T830 WGC LG3 LO1 1413 58 75 4662 31,8 147 80+ 3000 3,2
DA-CANEASH LP LED1x4500/1550 J327
T830 WGC LG3 LO2 1413 58 75 5722 39,7 144 80+ 3000 3,2
DA-CANEASH LP LED1x5300/1850 J328
T830 WGC LG3 LO3 1413 58 75 6744 48,0 141 80+ 3000 3,2
DA-CANEASH LP LED1x6150/2100 J329 T830
WGC LG3 LO4 1413 58 75 7837 56,1 140 80+ 3000 3,2
DA-CANEASH LP LED1x5850/2100 J330
T830 WGC LG3 LO1 2250 58 75 7538 49,9 151 80+ 3000 5,3
DA-CANEASH LP LED1x7200/2600 J331
T830 WGC LG3 LO2 2250 58 75 9253 62,3 149 80+ 3000 5,3
DA-CANEASH LP LED1x8450/3050 J332
T830 WGC LG3 LO3 2250 58 75 10906 75,3 145 80+ 3000 5,3
DA-CANEASH LP LED1x9750/3550 J333
T830 WGC LG3 LO4 2250 58 75 12580 88,8 142 80+ 3000 5,3
DA-CANEASH LP LED1x7300/2550 J334
T830 WGC LG3 LO1 2808 58 75 9323 61,6 151 80+ 3000 6,6
DA-CANEASH LP LED1x9000/3100 J335
T830 WGC LG3 LO2 2808 58 75 11443 77,7 147 80+ 3000 6,6
DA-CANEASH LP LED1x10600/3650 J336
T830 WGC LG3 LO3 2808 58 75 13488 94,0 143 80+ 3000 6,6
DA-CANEASH LP LED1x12300/4250 J337
T830 WGC LG3 LO4 2808 58 75 15675 111,1 141 80+ 3000 6,6
DA-CANEASH LP LED1x2950/1050 J322
T840 WGC LG3 LO1 1134 58 75 3966 25,5 156 80+ 4000 2,7
DA-CANEASH LP LED1x3600/1300 J323
T840 WGC LG3 LO2 1134 58 75 4868 32,2 151 80+ 4000 2,7
DA-CANEASH LP LED1x4250/1550 J324
T840 WGC LG3 LO3 1134 58 75 5738 38,5 149 80+ 4000 2,7
DA-CANEASH LP LED1x4900/1800 J325
T840 WGC LG3 LO4 1134 58 75 6618 45,3 146 80+ 4000 2,7
DA-CANEASH LP LED1x3650/1300 J326
T840 WGC LG3 LO1 1413 58 75 4905 31,8 154 80+ 4000 3,2
DA-CANEASH LP LED1x4500/1550 J327
T840 WGC LG3 LO2 1413 58 75 6021 39,7 152 80+ 4000 3,2
DA-CANEASH LP LED1x5300/1850 J328
T840 WGC LG3 LO3 1413 58 75 7095 48,0 148 80+ 4000 3,2
DA-CANEASH LP LED1x6150/2100 J329 T840
WGC LG3 LO4 1413 58 75 8247 56,1 147 80+ 4000 3,2
DA-CANEASH LP LED1x5850/2100 J330
T840 WGC LG3 LO1 2250 58 75 7932 49,9 159 80+ 4000 5,3
DA-CANEASH LP LED1x7200/2600 J331
T840 WGC LG3 LO2 2250 58 75 9737 62,3 156 80+ 4000 5,3
