Description

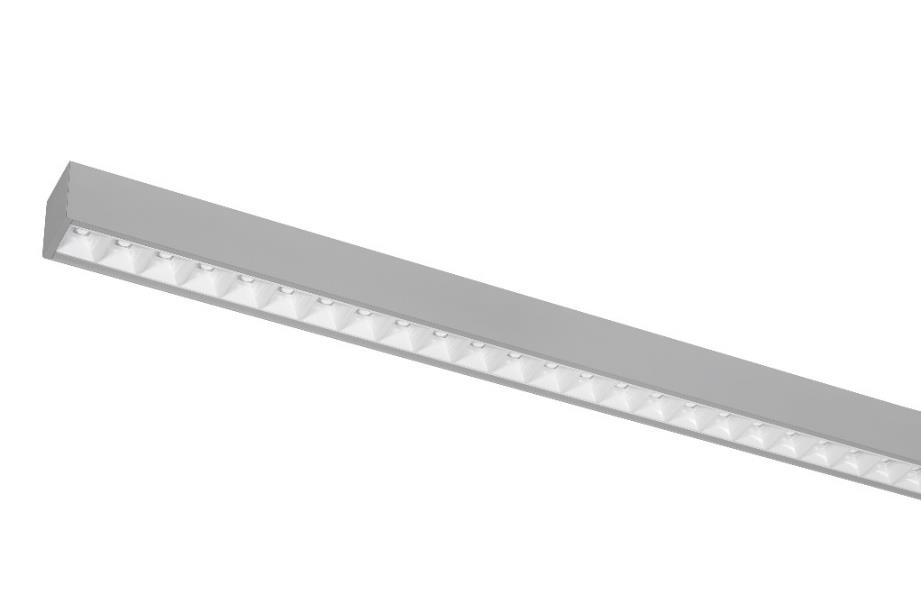

DA-CANEASH P LED

direct
double parabolic reflector with lenses, low glare
aluminium
light grey (RAL9006S)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP40
IK05
Operating temperature range, ta 0+35
On the ceiling or suspended (wire, cable and cap to be ordered separately), with L/LL option is designed for in -line connection. Push –
in terminal, 3x2x2.5mm2
Indoor
Office, education, hotel, corridor, retail, public place

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-CANEASH P LED1x2950 J273 T830 WGC LO1 1134 58 68 2770 17,6 157 80+ 3000 2,3
DA-CANEASH P LED1x3600 J274 T830 WGC LO2 1134 58 68 3399 21,9 155 80+ 3000 2,3
DA-CANEASH P LED1x4250 J275 T830 WGC LO3 1134 58 68 4006 26,1 153 80+ 3000 2,3
DA-CANEASH P LED1x4900 J276 T830 WGC LO4 1134 58 68 4617 30,8 150 80+ 3000 2,3
DA-CANEASH P LED1x3650 J277 T830 WGC LO1 1413 58 68 3463 21,7 160 80+ 3000 2,6
DA-CANEASH P LED1x4500 J278 T830 WGC LO2 1413 58 68 4249 26,8 159 80+ 3000 2,6
DA-CANEASH P LED1x5300 J279 T830 WGC LO3 1413 58 68 5008 32 157 80+ 3000 2,6
DA-CANEASH P LED1x6150 J280 T830 WGC LO4 1413 58 68 5831 37,8 154 80+ 3000 2,6
DA-CANEASH P LED1x5850 J281 T830 WGC LO1 2250 58 68 5540 33,3 166 80+ 3000 4,0
DA-CANEASH P LED1x7200 J282 T830 WGC LO2 2250 58 68 6798 41,9 162 80+ 3000 4,0
DA-CANEASH P LED1x8450 J283 T830 WGC LO3 2250 58 68 8012 50,6 158 80+ 3000 4,0
DA-CANEASH P LED1x9750 J284 T830 WGC LO4 2250 58 68 9235 59 157 80+ 3000 4,0
DA-CANEASH P LED1x7300 J285 T830 WGC LO1 2808 58 68 6926 41,6 166 80+ 3000 5,0
DA-CANEASH P LED1x9000 J286 T830 WGC LO2 2808 58 68 8498 52,4 162 80+ 3000 5,0
DA-CANEASH P LED1x10600 J287 T830 WGC LO3 2808 58 68 10016 62,6 160 80+ 3000 5,0
DA-CANEASH P LED1x12300 J288 T830 WGC LO4 2808 58 68 11663 73,3 159 80+ 3000 5,0
DA-CANEASH P LED1x2950 J273 T840 WGC LO1 1134 58 68 2920 17,6 166 80+ 4000 2,3
DA-CANEASH P LED1x3600 J274 T840 WGC LO2 1134 58 68 3583 21,9 164 80+ 4000 2,3
DA-CANEASH P LED1x4250 J275 T840 WGC LO3 1134 58 68 4223 26,1 162 80+ 4000 2,3
DA-CANEASH P LED1x4900 J276 T840 WGC LO4 1134 58 68 4867 30,8 158 80+ 4000 2,3
DA-CANEASH P LED1x3650 J277 T840 WGC LO1 1413 58 68 3650 21,7 168 80+ 4000 2,6
DA-CANEASH P LED1x4500 J278 T840 WGC LO2 1413 58 68 4479 26,8 167 80+ 4000 2,6
DA-CANEASH P LED1x5300 J279 T840 WGC LO3 1413 58 68 5278 32 165 80+ 4000 2,6
DA-CANEASH P LED1x6150 J280 T840 WGC LO4 1413 58 68 6147 37,8 163 80+ 4000 2,6
DA-CANEASH P LED1x5850 J281 T840 WGC LO1 2250 58 68 5840 33,3 175 80+ 4000 4,0
DA-CANEASH P LED1x7200 J282 T840 WGC LO2 2250 58 68 7166 41,9 171 80+ 4000 4,0
DA-CANEASH P LED1x8450 J283 T840 WGC LO3 2250 58 68 8446 50,6 167 80+ 4000 4,0
DA-CANEASH P LED1x9750 J284 T840 WGC LO4 2250 58 68 9734 59 165 80+ 4000 4,0
DA-CANEASH P LED1x7300 J285 T840 WGC LO1 2808 58 68 7300 41,6 175 80+ 4000 5,0
DA-CANEASH P LED1x9000 J286 T840 WGC LO2 2808 58 68 8957 52,4 171 80+ 4000 5,0
DA-CANEASH P LED1x10600 J287 T840 WGC LO3 2808 58 68 10557 62,6 169 80+ 4000 5,0
DA-CANEASH P LED1x12300 J288 T840 WGC LO4 2808 58 68 12293 73,3 168 80+ 4000 5,0

DA-CANEASH P LED1x2700 J273 T830 BGC LO1 1134 58 68 2557 17,6 145 80+ 3000 2,3
DA-CANEASH P LED1x3350 J274 T830 BGC LO2 1134 58 68 3138 21,9 143 80+ 3000 2,3
DA-CANEASH P LED1x3900 J275 T830 BGC LO3 1134 58 68 3698 26,1 142 80+ 3000 2,3
DA-CANEASH P LED1x4500 J276 T830 BGC LO4 1134 58 68 4262 30,8 138 80+ 3000 2,3
DA-CANEASH P LED1x3400 J277 T830 BGC LO1 1413 58 68 3196 21,7 147 80+ 3000 2,6
DA-CANEASH P LED1x4150 J278 T830 BGC LO2 1413 58 68 3922 26,8 146 80+ 3000 2,6
DA-CANEASH P LED1x4900 J279 T830 BGC LO3 1413 58 68 4623 32 144 80+ 3000 2,6
DA-CANEASH P LED1x5700 J280 T830 BGC LO4 1413 58 68 5383 37,8 142 80+ 3000 2,6
DA-CANEASH P LED1x5400 J281 T830 BGC LO1 2250 58 68 5114 33,3 154 80+ 3000 4,0
DA-CANEASH P LED1x6650 J282 T830 BGC LO2 2250 58 68 6275 41,9 150 80+ 3000 4,0
DA-CANEASH P LED1x7800 J283 T830 BGC LO3 2250 58 68 7396 50,6 146 80+ 3000 4,0
DA-CANEASH P LED1x9000 J284 T830 BGC LO4 2250 58 68 8524 59 144 80+ 3000 4,0
DA-CANEASH P LED1x6750 J285 T830 BGC LO1 2808 58 68 6393 41,6 154 80+ 3000 5,0
DA-CANEASH P LED1x8300 J286 T830 BGC LO2 2808 58 68 7844 52,4 150 80+ 3000 5,0
DA-CANEASH P LED1x9750 J287 T830 BGC LO3 2808 58 68 9245 62,6 148 80+ 3000 5,0
DA-CANEASH P LED1x11350 J288 T830 BGC LO4 2808 58 68 10766 73,3 147 80+ 3000 5,0
