Description

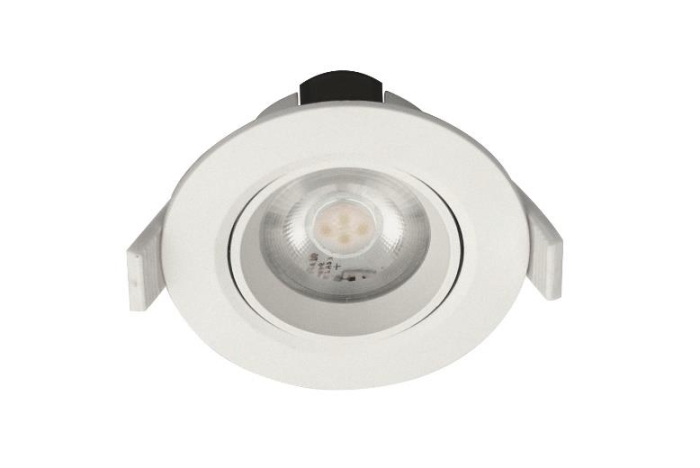

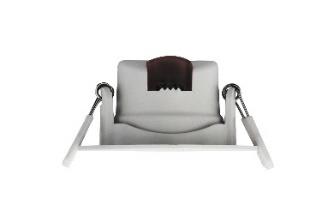

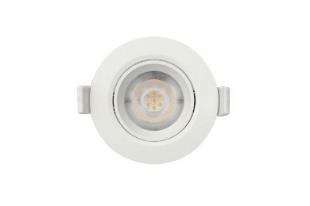

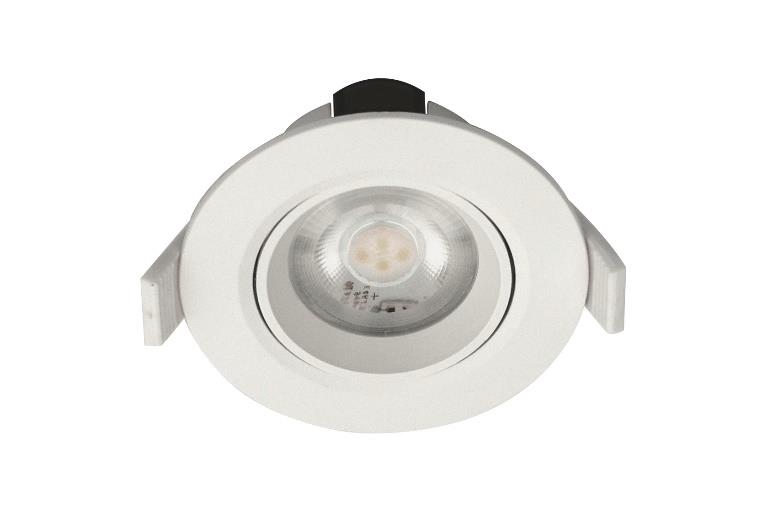

DA-CANOEBIRCH

direct
lens, 40, tilting DA-WHITEMAPLE 30
polycarbonate
white (RAL 9016)
MDA- 220 -240V, 50 -60Hz
LED lifetime, 30000/L70B50
3
II
IP44
IK05
Operating temperature range, ta -20+40
In ceilings with cut -out openings (mounting brackets included). Push -in terminal, 2x2x2.5mm2
68mm
Indoor
Office, education, hotel, corridor, bathroom, showroom, exhibition, public place

A luminaire is supplied with an electrical junction enclosure and push -in terminal 2x2x2.5 mm2 (for in and out going cable), also
known as quick connector. It offers installers a quick, easy tool free installation – simply strip the cable, plug it directl y into the
push -in terminal and close the junction enclosure to secure the cables. The remote junction enclose gives an easy access to a push –
in terminal and fast connection.

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors
.

T830 Colour temperature 3000K, CRI 80+
TDIM Driver with trailing -edge and leading -edge dimming

STANDARD

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-CANOEBIRCH1x550 D944 T830 85 85 44 550 6,50 85 80+ 3000 0,2
DA-CANOEBIRCH1x550 D944 T830 TDIM 85 85 44 550 6,50 85 80+ 3000 0,2
