Description

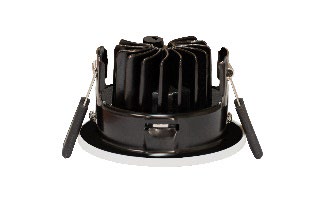

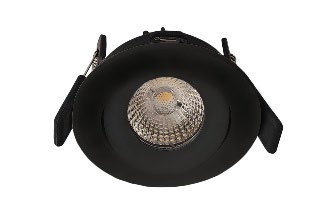

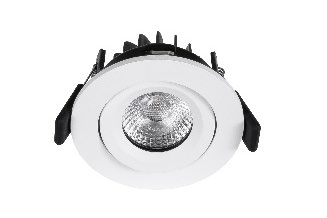

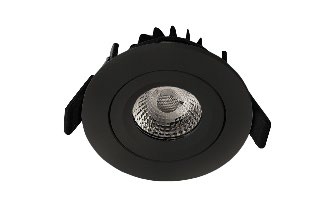

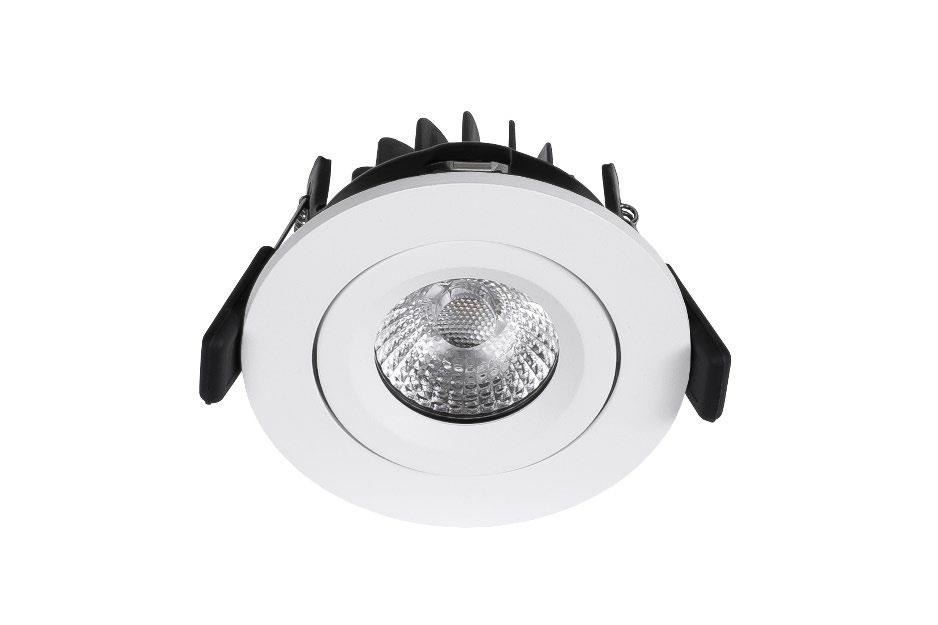

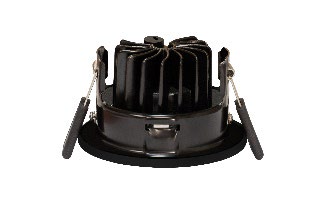

DA-CANOEBIRCH D LED

direct
lens, 40, tilt adjustable
die cast aluminium
white, RAL 9003, black, RAL 9005
Fire rated 30, 60 and 90 min.
MDA- 220 -240V, 50 -60Hz
LED lifetime, 40000/L70B50
5
II
IP44
IK04
Operating temperature range, ta -10+40
In ceilings with cut -out openings (mounting brackets included). Push -in terminal, 2x1x1mm2
80mm
Indoor
Office, education, hotel, corridor, bathroom, showroom, exhibition, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
TDIM Driver with trailing -edge and leading -edge dimming
RAL RAL colour
*note – price for uncommon RAL colour could be different from indicated. Ask
before placing an order

STANDARD

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-CANOEBIRCH D LED1x700 G682 T830 96 96 56 800 8,5 94 80+ 3000 0,4
DA-CANOEBIRCH D LED1x700 G682 T840 96 96 56 850 8,5 100 80+ 4000 0,4
