Description

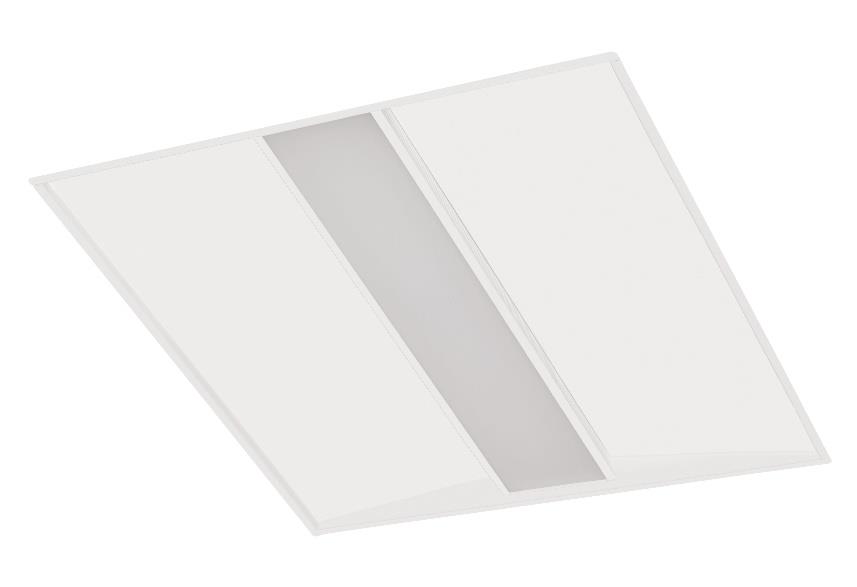

DA-CARROT

direct/indirect
matt micro -prismatic PMMA diffuser, low glare
steel
white (RAL9003)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP40/20
IK02
Operating temperature range, ta 0+35
In modular suspended ceilings (600), in ceilings with cut -out openings (mounting frame to be ordered separately). Push -in terminal,
3x2x2.5mm2
Indoor
Office, education, corridor, retail, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
OP TP(a) TP(a) rated thermoplastic opal diffuser
DALI Driver with DALI interface and switch -control dimming
EAIRB -M Master luminaire with integrated smart sensor and driver
with Bluetooth communication and grouping possibilities
for lighting control
*note – ingress protection IP20
EAIRB -S Slave luminaire with integrated EAIR type driver for
lighting control
BLT Integrated wireless control unit and driver for lighting
control via mobile device (via Bluetooth)
TW Integrated light source and driver for Tuneable white
control 2700 -6500 K
BLT TW Integrated light source, wireless control unit and driver for
Tuneable white control 2700 -6500 K via mobile device
(via Bluetooth) COR Driver with Corridor function (never off)
COR1min Driver with Corridor function 1min (switch off after 1 min.)
COR30min Driver with Corridor function 30min (switch off after 30
min.)
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
WIE3 3-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector
WIE5 5-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector
WIE5D 5-DA-COMMONTANSY DALI “Wieland – gesis classic” type or compatible
connector
Schuko -1.5m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 1.5m cable
Schuko -3.0m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 3.0m cable

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-CARROT1x3300 G882 T830 DPRZ
LT80 595 595 75 3119 25,9 120 80+ 3000 3,7
DA-CARROT1x4500 G883 T830 DPRZ
LT80 595 595 75 4245 33,7 126 80+ 3000 3,7
DA-CARROT1x3300 G882 T840 DPRZ
LT80 595 595 75 3288 25,9 127 80+ 4000 3,7
DA-CARROT1x4500 G883 T840 DPRZ
LT80 595 595 75 4498 33,7 133 80+ 4000 3,7
