Description

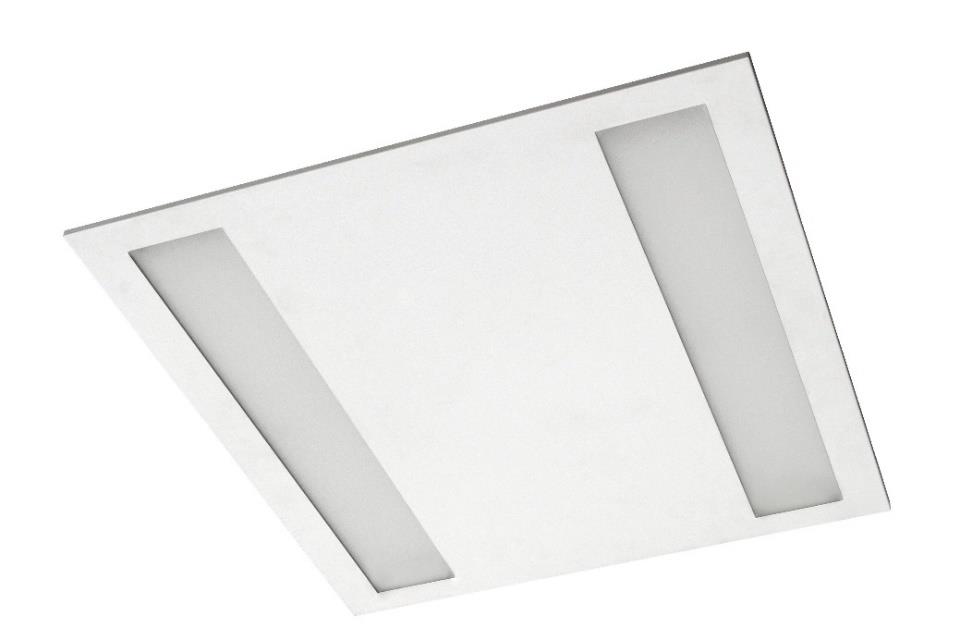

DA-CHERRY L ED

direct
matt micro -prismatic PMMA diffuser, low glare / translucent micro -prismatic PMMA diffuser
steel
white (RAL9003)
MDA- 220 -240V, 50/60Hz
LED lifetime, 50000/L80B10
3
I
IP44/20
IK05
Operating temperature range, ta 0+35
In modular suspended ceilings, in ceilings with cut -out openings (mounting frame to be ordered separately). Push -in terminal,
3x2x2.5mm2
Indoor
Office, education, corridor, retail, public place

Sensors ensure lighting is only on when and where it is needed. The sensors can bring huge benefits in terms of energy
management as they enable sunlight harvesting, automatic dimming, and sensing the presence of people. The lighting is only on
when actually required so cost savings are considerable.
Energy saving – typically between 30% and 50%.
are ideal for all office areas including work spaces, conference rooms, corridors, break -out rooms, administrative
areas, stairwells and similar applications in schools and hospitals.
For more information see the option list and energy saving solutions.
Series of EM3LOA and EM3LER emergency kits is the newest line of options that combines highly efficient LED light sources and
the latest optics, designed to illuminate open areas or escape routes. A high specification LED emergency version provides hi gh
performance emergency lighting in commercial buildings where aesthetics is of prime importance, such as offices, retail or
hospitality and leisure facilities. Whereas typical escape route emergency luminaires need to be spaced at every 3 to 7 metre s to
achie ve the required illumination level, EM3LOA and EM3
up to 17m along the escape routes
up to 9m in the open areas
metre spacing, depending on ceiling height, that effects significantly on reduction of the number of needed emergency luminai res
and, consequently, the costs of installation and subsequent mDA-CANOEBIRCHtenance.
EM3LOA EM3LER High flexibility to meet specific project requirements, as luminaires can be pDA-CANOEBIRCHted to all RAL code colours on request. For more
information see the option list
