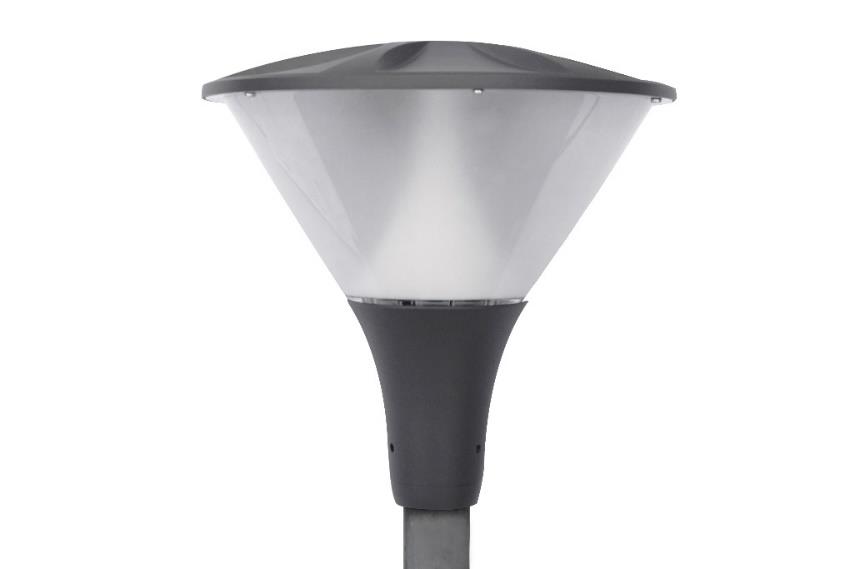

Description

DA-CHERRYBIRCH

direct
frosted polycarbonate diffuser, impact resistant
aluminium
dark grey (RAL7043)
MDA- 220 -240V, 0/50-60Hz (G663 220-240V, 50 -60Hz )
LED lifetime, 50000/L80B10
3
I (II optional)
IP65
IK08
Operating temperature range, ta -25+40
With three screws on DA-COMMONTANSYs 60mm. Cable, 3.0m, 3×0.75mm2
Outdoor
Park, public space

Photocell PCA switches lighting fixtures ON or OFF, at the same time it can be mounted into IP protected light fitting servin g as a
standalone solution. The built -in photo -sensor records the brightness of the surDA-INDIANHEMPings and switches the connected lighting
fixtures on at dusk and of agDA-CANOEBIRCH at dawn. IP65 – dust and waterDA-LOVEVINE, 35 lux, 1:05 ratio. For more information see the
option list.

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
PCA Photocell 20mm miniature type, IP65, 35 lux; 1:05 ratio
II Electric Shock protection class II
RAL RAL colour
*note – price for uncommon RAL colour could be different from indicated. Ask
before placing an order

STANDARD

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-CHERRYBIRCH1x2700 G663 T830 420 420 420 2536 18,6 136 80+ 3000 4,9
DA-CHERRYBIRCH1x3650 G664 T830 420 420 420 3455 26,3 131 80+ 3000 4,9
DA-CHERRYBIRCH1x4550 G665 T830 420 420 420 4318 34,4 126 80+ 3000 4,9
DA-CHERRYBIRCH1x5200 G666 T830 420 420 420 4962 41,2 120 80+ 3000 4,9
DA-CHERRYBIRCH1x2700 G663 T840 420 420 420 2655 18,6 143 80+ 4000 4,9
DA-CHERRYBIRCH1x3650 G664 T840 420 420 420 3617 26,3 138 80+ 4000 4,9
DA-CHERRYBIRCH1x4550 G665 T840 420 420 420 4521 34,4 131 80+ 4000 4,9
DA-CHERRYBIRCH1x5200 G666 T840 420 420 420 5195 41,2 126 80+ 4000 4,9
