Description

DA-CLOVER

range

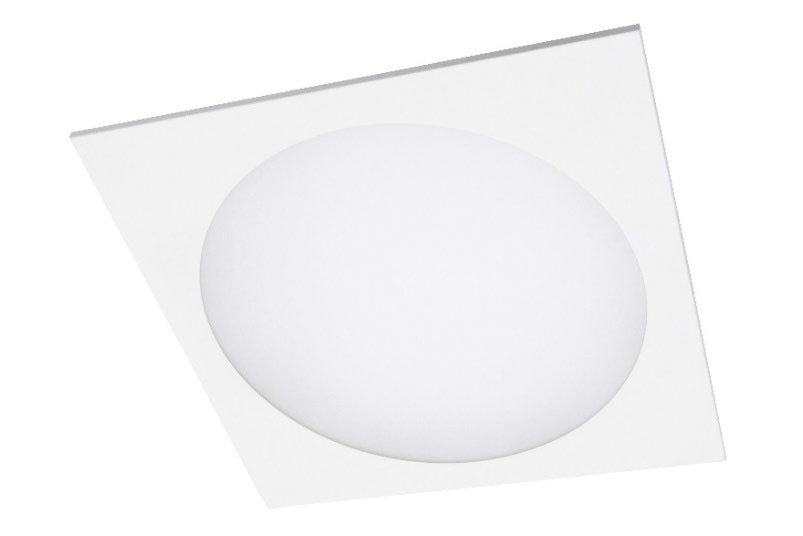

Recessed Luminaires Recessed mounted DA-CANEASHative LED luminaire
direct
opal PMMA diffuser
steel
white (RAL9003)
MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L80B10
3
I
IP4 0/20
IK05
Operating temperature range, ta 0+35
In modular suspended ceilings (600), in ceilings with cut -out openings (mounting frame to be ordered separately). Push -in terminal,
3x2x2.5mm2
Indoor
Office, education, corridor, retail, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DPRZ LT80 De-glaring micro -prismatic diffuser, matt
OP TP(a) TP(a) rated termoplastic opal diffuser
DALI Driver with DALI interface and switch -control dimming
EAIRB -M Master luminaire with integrated smart sensor and driver
with wireless communication and grouping possibilities for
lighting control
*note – ingress protection IP20
EAIRB -S Slave luminaire with integrated EAIR type driver for
lighting control
*note – max system size 1x EAIRB -M + 3x EAIRB -S
*note – max wire length from EAIRB -M to last EAIRB -S – 11 meters
BLT Integrated wireless control unit and driver for lighting
control via mobile device (via Bluetooth)
COR Driver with Corridor function (never off)
COR1min Driver with Corridor function 1min (switch off after 1 min.)
COR30min Driver with Corridor function 30min (switch off after 30
min.)
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
WIE3 -0.5m 3-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector with 0.5m cable
WIE5D -0.5m 5-DA-COMMONTANSY DALI “Wieland – gesis classic” type or compatible
connector with 0.5m cable
Schuko -1.5m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 1.5m cable
Schuko -3.0m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 3.0m cable
W625 Designed for the German market to fit 625×625
suspended ceiling
RAL RAL colour
OP LT80
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-CLOVER1x3600 J496 T830 OP
LT80 595 595 100 3405 25,5 134 80+ 3000 3,1
DA-CLOVER1x4450 J497 T830 OP
LT80 595 595 100 4221 32,3 131 80+ 3000 3,1
DA-CLOVER1x6050 J498 T830 OP
LT80 595 595 100 5752 45,6 126 80+ 3000 3,1
DA-CLOVER1x6850 J499 T830 OP
LT80 595 595 100 6510 52,7 124 80+ 3000 3,1
DA-CLOVER1x3600 J496 T840 OP
LT80 595 595 100 3564 25,5 140 80+ 4000 3,1
DA-CLOVER1x4450 J497 T840 OP
LT80 595 595 100 4419 32,3 137 80+ 4000 3,1
DA-CLOVER1x6050 J498 T840 OP
LT80 595 595 100 6022 45,6 132 80+ 4000 3,1
DA-CLOVER1x6850 J499 T840 OP
LT80 595 595 100 6817 52,7 129 80+ 4000 3,1
