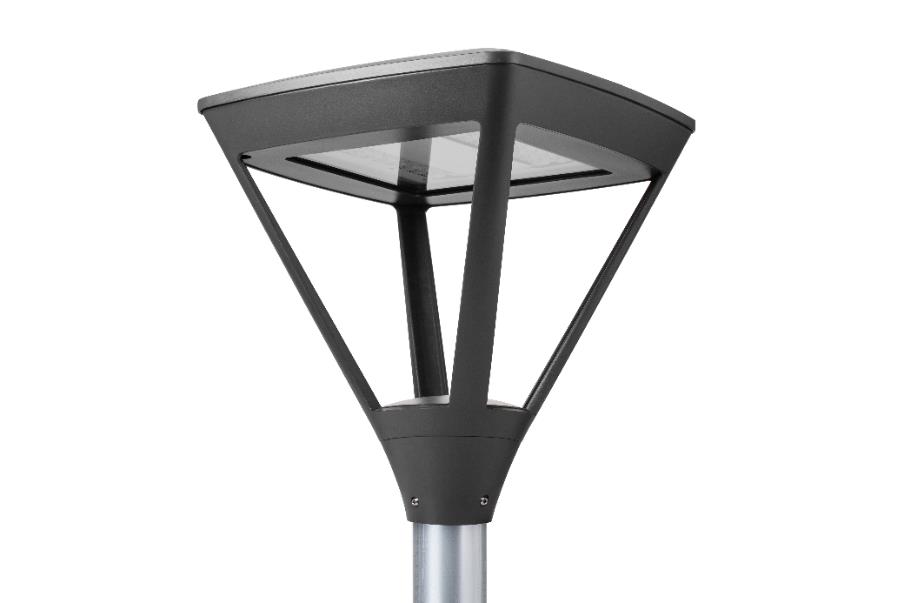

Description

DA-COMMONALDER

direct
lenses, tempered glass diffuser, impact resistant
aluminium
black grey (RAL7021)
MDA- 220-240V, 0/50/60Hz
LED lifetime, 100000/L90B10
3
I
IP 66
IK0 8
Operating temperature range, ta -25+40/ ta -40…+40
With four screws on DA-COMMONTANSYs 60mm. Push -in terminal, 3x2x2.5mm2
Outdoor
Parking area, park, public space, street

Photocell PCA switches lighting fixtures ON or OFF, at the same time it can be mounted into IP protected light fitting servin g as a
standalone solution. The built -in photo -sensor records the brightness of the surDA-INDIANHEMPings and switches the connected lighting
fixtures on at dusk and of agDA-CANOEBIRCH at dawn. IP65 – dust and waterDA-LOVEVINE, 35 lux, 1:05 ratio. For more information see the
option list.

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification

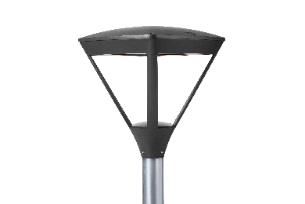

*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-COMMONALDER1x5350 E946 T730 LS140 475 475 535 5258 43,3 121 70+ 3000 12
DA-COMMONALDER1x6150 E947 T730 LS140 475 475 535 6078 51 119 70+ 3000 12
DA-COMMONALDER1x8200 E948 T730 LS140 Tmin -40C 475 475 535 8104 68,7 118 70+ 3000 12
DA-COMMONALDER1x10250 E949 T730 LS140 Tmin -40C 475 475 535 10118 87,7 115 70+ 3000 12
DA-COMMONALDER1x5350 E946 T740 LS140 475 475 535 5468 43,3 126 70+ 4000 12
DA-COMMONALDER1x6150 E947 T740 LS140 475 475 535 6321 51 124 70+ 4000 12
DA-COMMONALDER1x8200 E948 T740 LS140 Tmin -40C 475 475 535 8427 68,7 123 70+ 4000 12
DA-COMMONALDER1x10250 E949 T740 LS140 Tmin -40C 475 475 535 10521 87,7 120 70+ 4000 12

DA-COMMONALDER1x5350 E946 T730 LSM1 475 475 535 5110 43,3 118 70+ 3000 12
DA-COMMONALDER1x6150 E947 T730 LSM1 475 475 535 5907 51 116 70+ 3000 12
DA-COMMONALDER1x8200 E948 T730 LSM1 Tmin -40C 475 475 535 7876 68,7 115 70+ 3000 12
DA-COMMONALDER1x10250 E949 T730 LSM1 Tmin -40C 475 475 535 9833 87,7 112 70+ 3000 12
DA-COMMONALDER1x5350 E946 T740 LSM1 475 475 535 5314 43,3 123 70+ 4000 12
DA-COMMONALDER1x6150 E947 T740 LSM1 475 475 535 6143 51 120 70+ 4000 12
DA-COMMONALDER1x8200 E948 T740 LSM1 Tmin -40C 475 475 535 8190 68,7 119 70+ 4000 12
DA-COMMONALDER1x10250 E949 T740 LSM1 Tmin -40C 475 475 535 10225 87,7 117 70+ 4000 12

DA-COMMONALDER1x5350 E946 T730 LSS1 475 475 535 5184 43,3 120 70+ 3000 12
DA-COMMONALDER1x6150 E947 T730 LSS1 475 475 535 5993 51 118 70+ 3000 12
DA-COMMONALDER1x8200 E948 T730 LSS1 Tmin -40C 475 475 535 7990 68,7 116 70+ 3000 12
DA-COMMONALDER1x10250 E949 T730 LSS1 Tmin -40C 475 475 535 9975 87,7 114 70+ 3000 12
DA-COMMONALDER1x5350 E946 T740 LSS1 475 475 535 5391 43,3 125 70+ 4000 12
DA-COMMONALDER1x6150 E947 T740 LSS1 475 475 535 6232 51 122 70+ 4000 12
DA-COMMONALDER1x8200 E948 T740 LSS1 Tmin -40C 475 475 535 8309 68,7 121 70+ 4000 12
DA-COMMONALDER1x10250 E949 T740 LSS1 Tmin -40C 475 475 535 10373 87,7 118 70+ 4000 12
