Description

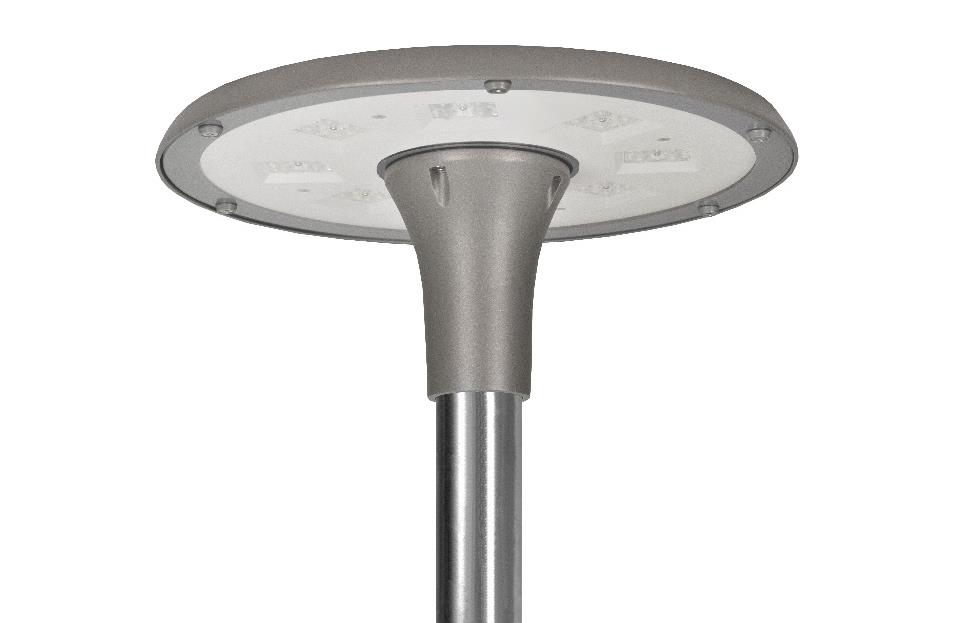

DA-COMMONDAISY

direct
lenses, tempered glass diffuser, impact resistant
aluminium
Light grey, RAL 9006
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 100000/L90B10
5
I
IP66
IK08
Operating temperature range, ta -40…+40
With two screws on DA-COMMONTANSYs 60mm. Cable, 3.0m, 3×0.75mm2
Outdoor
Park, public space

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing an d
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T730 Colour temperature 3000K, CRI 70+
T740 Colour temperature 4000K, CRI 70+
SHADE Deglaring DA-CANEASHative shade for DA-COMMONDAISY LED luminaire
DALI Driver with DALI interface and switch -control dimming
ADIM Driver with autonomous two -level dimming PCA Photocell 20mm miniature type, IP65, 35 lux; 1:05 ratio
II Electric Shock protection class II
RAL RAL colour
*note – price for uncommon RAL colour could be different from indicated. Ask
before placing an order
LS140

Product Length,
mm Width,
mm Height
, mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weigh
t, kg
DA-COMMONDAISY1x5050 J455 T740 LS140 500 500 235 5009 34,3 146 70+ 4000 10,0
DA-COMMONDAISY1x7100 J456 T740 LS140 500 500 235 7073 48,7 145 70+ 4000 10,0
DA-COMMONDAISY1x9700 J457 T740 LS140 500 500 235 9663 68 142 70+ 4000 10,0
