Description

DA-CORNEL

direct
opal PMMA diffuser
steel
white (RAL9003)
MDA- 220-240V, 0/50/60Hz
LED lifetime, 50000/L80B10
3
I
IP20
Operating temperature range, ta 0+35
In ceilings with cut -out openings (mounting brackets included). Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, corridor, retail, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification

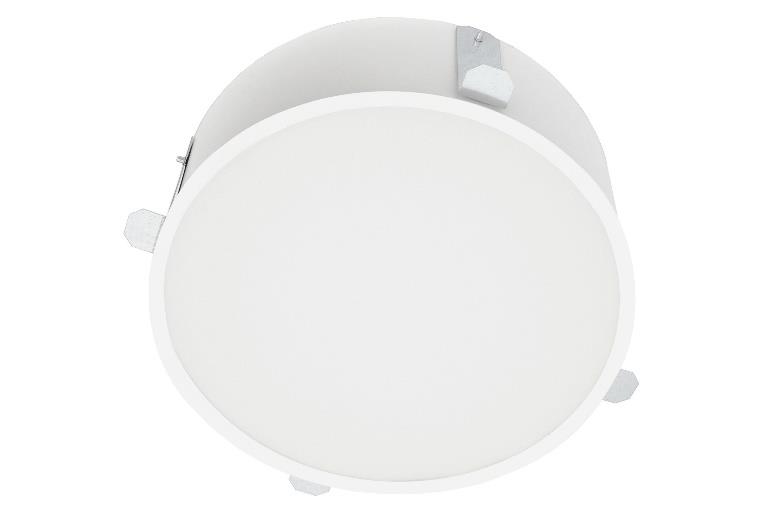

*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
OP LT80 Opal diffuser with high light transmittance
OP TP(a) TP(a) rated termoplastic opal diffuser
DALI Driver with DALI interface and switch -control dimming
BLT Integrated wireless control unit and driver for lighting
control via mobile device (via Bluetooth)
MW Integrated microwave (MW) motion sensor with on -off
control EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
RAL RAL colour

OP LT80

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-CORNEL1x1800 D083 T830 OP LT80 326 326 143 1684 15,7 107 80+ 3000 4,0
DA-CORNEL1x2450 D084 T830 OP LT80 326 326 143 2315 23 101 80+ 3000 4,0
DA-CORNEL1x3600 D085 T830 OP LT80 476 476 143 3406 31,7 107 80+ 3000 6,8
DA-CORNEL1x4150 D086 T830 OP LT80 476 476 143 3936 37,7 104 80+ 3000 6,8
DA-CORNEL1x5300 D087 T830 OP LT80 624 624 153 5053 46,5 109 80+ 3000 10,0
DA-CORNEL1x7300 D088 T830 OP LT80 624 624 153 6946 66,6 104 80+ 3000 10,0
DA-CORNEL1x8850 D089 T830 OP LT80 922 922 153 8439 81,7 103 80+ 3000 14,0
DA-CORNEL1x11700 D090 T830 OP LT80 922 922 153 11134 110,4 101 80+ 3000 14,0
DA-CORNEL1x1800 D083 T840 OP LT80 326 326 143 1764 15,7 112 80+ 4000 4,0
DA-CORNEL1x2450 D084 T840 OP LT80 326 326 143 2424 23 105 80+ 4000 4,0
DA-CORNEL1x3600 D085 T840 OP LT80 476 476 143 3566 31,7 112 80+ 4000 6,8
DA-CORNEL1x4150 D086 T840 OP LT80 476 476 143 4121 37,7 109 80+ 4000 6,8
DA-CORNEL1x5300 D087 T840 OP LT80 624 624 153 5291 46,5 114 80+ 4000 10,0
DA-CORNEL1x7300 D088 T840 OP LT80 624 624 153 7273 66,6 109 80+ 4000 10,0
DA-CORNEL1x8850 D089 T840 OP LT80 922 922 153 8835 81,7 108 80+ 4000 14,0
DA-CORNEL1x11700 D090 T840 OP LT80 922 922 153 11657 110,4 106 80+ 4000 14,0
