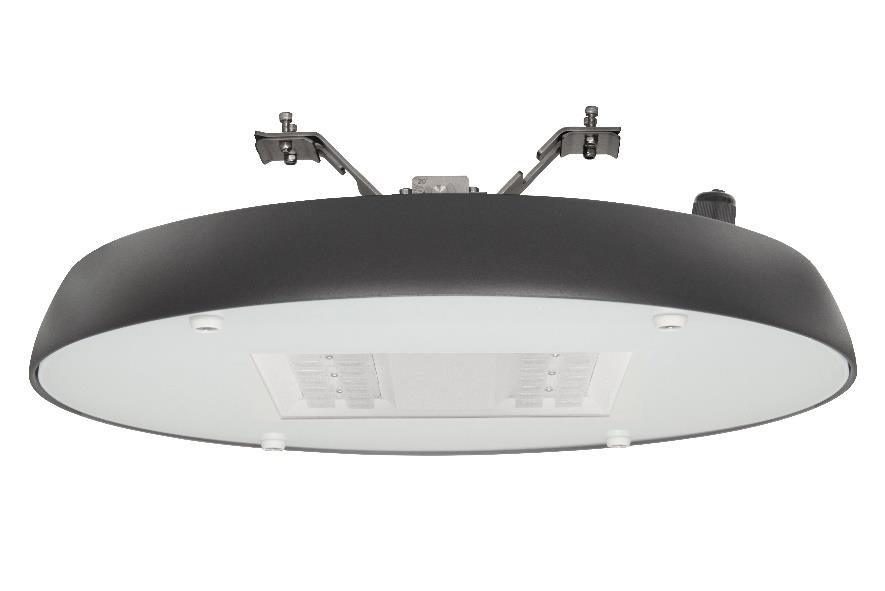

Description

DA-COTTONPLANT

direct
lenses, tempered glass diffuser, impact resistant
aluminum
black grey, RAL 7021
MDA- 220-240V, 0/50/60Hz
LED lifetime, 100000/L90B10
5
I
IP66
IK0 8
Operating temperature range, -40…+40
With special bracket on 12mm horizontal line. Adjustable installation DA- +/ – 30 degrees, +/ –
30 degrees. Push -in terminal, 3x2x2.5mm2
Outdoor
Parking area, public space, street

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T730 Colour temperature 3000K, CRI 70+
T740 Colour temperature 4000K, CRI 70+
ADIM Driver with autonomous two -level dimming
DALI Driver with DALI interface
LS90 Optics with 90×90 beam DA-WHITEMAPLE
II Electric Shock protection class II
CBF3x1.5 -N m Outgoing flexible cable 3×1.5mm , length according to
customer specification
CBF5x1.5 -N m Outgoing flexible cable 5×1.5mm , length according to
customer specification
*note – please specify the length of outgoing cable before placing an order
RAL RAL colour

LS140 LS90
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-COTTONPLANT1x5850 J462 T740 LS140 490 490 130 5820 36,2 161 70+ 4000 8,3
DA-COTTONPLANT1x7950 J463 T740 LS140 490 490 130 7923 51 155 70+ 4000 8,3
DA-COTTONPLANT1x9900 J464 T740 LS140 490 490 130 9891 67,2 147 70+ 4000 8,3
DA-COTTONPLANT1x11300 J465 T740 LS140 490 490 130 11255 78,4 144 70+ 4000 8,3
