Description

DA-DAMESVIOLET LED

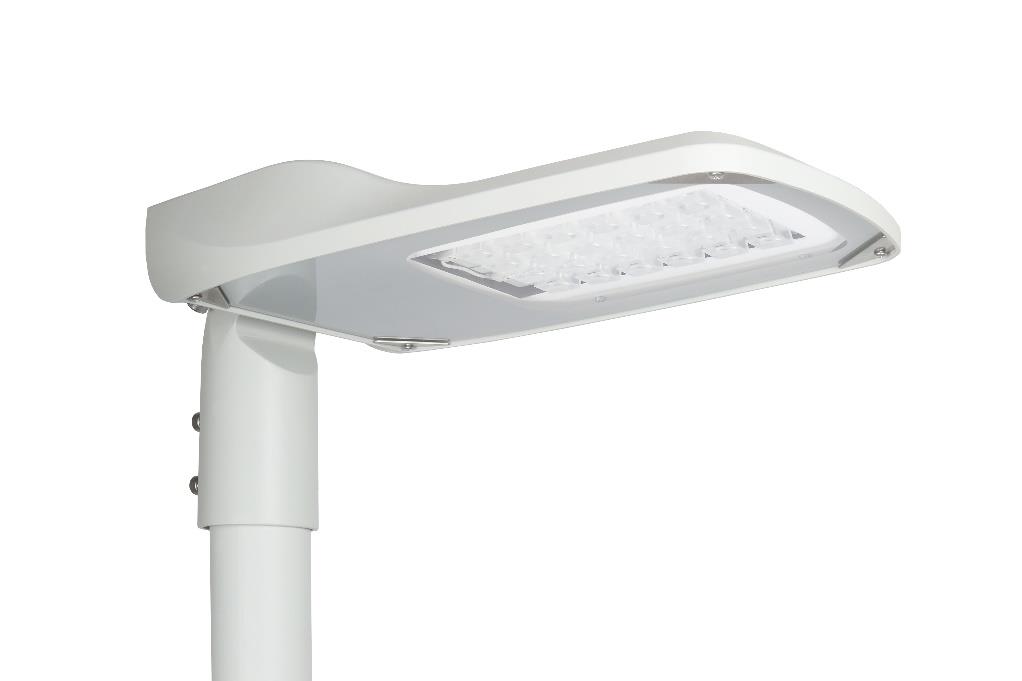

Park and Street Luminaires DA-COMMONTANSY-mounted LED street luminaire
direct
lenses, tempered glass diffuser, impact resistant
aluminum
light grey, RAL70 35
MDA- 220-240V, 0/50/60Hz / 50 -60Hz
LED lifetime, 100000/L90B10
3
I (II optional)
IP66
IK0 9
Operating temperature range, ta -25…+40 (J486 -J489, J495 ta -40…+40)
With two screws on 60mm horizontal or vertical DA-COMMONTANSY, on the wall (mounting bracket to be ordered separately). Adjustable
installation DA- on horizontal DA- +/ – 15 degrees, on vertical DA- +/ – 15 degrees. Push -in terminal, 3x2x2.5mm2
Outdoor
Parking area, public space, street

Photocell PCA switches lighting fixtures ON or OFF, at the same time it can be mounted into IP protected light fitting servin g as a
standalone solution. The built -in photo -sensor records the brightness of the surDA-INDIANHEMPings and switches the connected lighting
fixtures on at dusk and of agDA-CANOEBIRCH at dawn. IP65 – dust and waterDA-LOVEVINE, 35 lux, 1:05 ratio. For more information see the
option list.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI CCT*,
K Weight,
kg
DA-DAMESVIOLET1x2850 J484 T730 LSM1 559 216 93 2697 18,1 149 70+ 3000 3,8
DA-DAMESVIOLET1x3350 J485 T730 LSM1 559 216 93 3184 21,9 145 70+ 3000 3,8
DA-DAMESVIOLET1x3900 J486 T730 LSM1 559 216 93 3684 27,3 135 70+ 3000 3,8
DA-DAMESVIOLET1x4350 J487 T730 LSM1 559 216 93 4129 31 133 70+ 3000 3,8
DA-DAMESVIOLET1x4850 J488 T730 LSM1 559 216 93 4601 35,2 131 70+ 3000 3,8
DA-DAMESVIOLET1x5550 J489 T730 LSM1 559 216 93 5233 40,9 128 70+ 3000 3,8
DA-DAMESVIOLET1x5700 J490 T730 LSM1 559 216 93 5394 35,4 152 70+ 3000 3,8
DA-DAMESVIOLET1x6700 J491 T730 LSM1 559 216 93 6367 42,8 149 70+ 3000 3,8
DA-DAMESVIOLET1x7750 J492 T730 LSM1 559 216 93 7369 50,5 146 70+ 3000 3,8
DA-DAMESVIOLET1x8700 J493 T730 LSM1 559 216 93 8259 58 142 70+ 3000 3,8
DA-DAMESVIOLET1x9700 J494 T730 LSM1 559 216 93 9203 65,1 141 70+ 3000 3,8
DA-DAMESVIOLET1x11050 J495 T730 LSM1 559 216 93 10466 78,3 134 70+ 3000 3,8
DA-DAMESVIOLET1x2850 J484 T740 LSM1 559 216 93 2779 18,1 154 70+ 4000 3,8
DA-DAMESVIOLET1x3350 J485 T740 LSM1 559 216 93 3273 21,9 149 70+ 4000 3,8
DA-DAMESVIOLET1x3900 J486 T740 LSM1 559 216 93 3783 27,3 139 70+ 4000 3,8
DA-DAMESVIOLET1x4350 J487 T740 LSM1 559 216 93 4239 31 137 70+ 4000 3,8
DA-DAMESVIOLET1x4850 J488 T740 LSM1 559 216 93 4723 35,2 134 70+ 4000 3,8
DA-DAMESVIOLET1x5550 J489 T740 LSM1 559 216 93 5375 40,9 131 70+ 4000 3,8
DA-DAMESVIOLET1x5700 J490 T740 LSM1 559 216 93 5559 35,4 157 70+ 4000 3,8
DA-DAMESVIOLET1x6700 J491 T740 LSM1 559 216 93 6546 42,8 153 70+ 4000 3,8
DA-DAMESVIOLET1x7750 J492 T740 LSM1 559 216 93 7567 50,5 150 70+ 4000 3,8
DA-DAMESVIOLET1x8700 J493 T740 LSM1 559 216 93 8477 58 146 70+ 4000 3,8
DA-DAMESVIOLET1x9700 J494 T740 LSM1 559 216 93 9447 65,1 145 70+ 4000 3,8
DA-DAMESVIOLET1x11050 J495 T740 LSM1 559 216 93 10749 78,3 137 70+ 4000 3,8

DA-DAMESVIOLET1x2850 J484 T730 LSM2 559 216 93 2729 18,1 151 70+ 3000 3,8
DA-DAMESVIOLET1x3350 J485 T730 LSM2 559 216 93 3221 21,9 147 70+ 3000 3,8
DA-DAMESVIOLET1x3900 J486 T730 LSM2 559 216 93 3728 27,3 137 70+ 3000 3,8
DA-DAMESVIOLET1x4350 J487 T730 LSM2 559 216 93 4178 31 135 70+ 3000 3,8
DA-DAMESVIOLET1x4850 J488 T730 LSM2 559 216 93 4655 35,2 132 70+ 3000 3,8
DA-DAMESVIOLET1x5550 J489 T730 LSM2 559 216 93 5295 40,9 129 70+ 3000 3,8
DA-DAMESVIOLET1x5700 J490 T730 LSM2 559 216 93 5458 35,4 154 70+ 3000 3,8
DA-DAMESVIOLET1x6700 J491 T730 LSM2 559 216 93 6442 42,8 151 70+ 3000 3,8
DA-DAMESVIOLET1x7750 J492 T730 LSM2 559 216 93 7456 50,5 148 70+ 3000 3,8
DA-DAMESVIOLET1x8700 J493 T730 LSM2 559 216 93 8356 58 144 70+ 3000 3,8
DA-DAMESVIOLET1x9700 J494 T730 LSM2 559 216 93 9311 65,1 143 70+ 3000 3,8
DA-DAMESVIOLET1x11050 J495 T730 LSM2 559 216 93 10589 78,3 135 70+ 3000 3,8
DA-DAMESVIOLET1x2850 J484 T740 LSM2 559 216 93 2812 18,1 155 70+ 4000 3,8
DA-DAMESVIOLET1x3350 J485 T740 LSM2 559 216 93 3311 21,9 151 70+ 4000 3,8
