Description

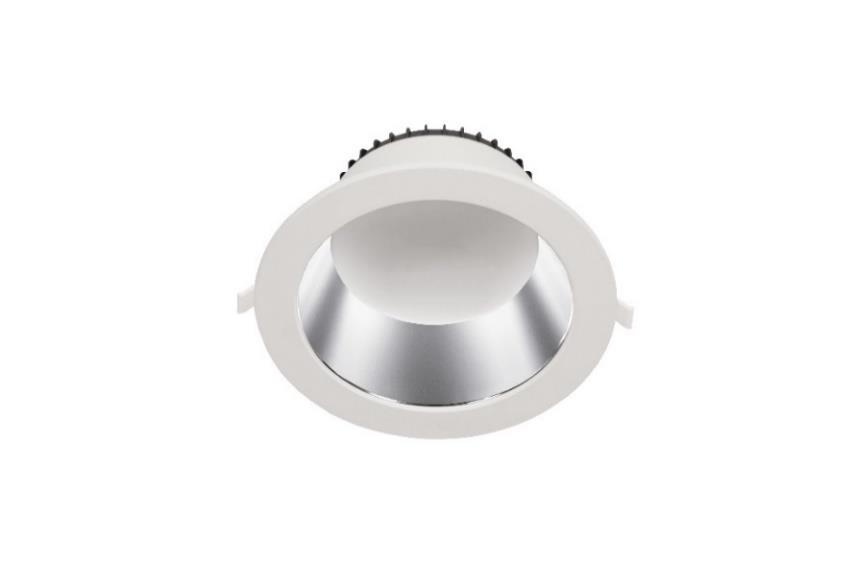

DA-DUCKRETTEN P LED

direct
faceted aluminium reflector, 60 / matt aluminium reflector, 80 , low glare, opal PMMA diffuser
aluminium
white, RAL9016
MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L80B10
6
II
IP44
IK0 4
Operating temperature range, ta 0…+35
In ceilings with cut -out openings (mounting brackets included). Push -in terminal, 2x1x1.5mm2
Indoor
Office, education, hotel, corridor, bathroom, retail, showroom, exhibition, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-DUCKRETTEN P LED1x950 J721 T840 R60 114 114 66 1021 10,2 100 80+ 4000 0,3
DA-DUCKRETTEN P LED1x1900 G986 T840 R60 174 174 87 2100 18,8 112 80+ 4000 0,4
DA-DUCKRETTEN P LED1x2550 G987 T840 R60 232 232 110 2520 28 90 80+ 4000 0,7
DA-DUCKRETTEN P LED1x3350 J722 T840 R60 232 232 110 3325 35 95 80+ 4000 0,7

DA-DUCKRETTEN P LED1x1100 J723 T840 R80 114 114 66 1326 10,1 131 80+ 4000 0,3
DA-DUCKRETTEN P LED1x2400 G986 T840 R80 174 174 87 2730 18,5 148 80+ 4000 0,4
DA-DUCKRETTEN P LED1x3350 G987 T840 R80 232 232 110 3846 27,9 138 80+ 4000 0,7
DA-DUCKRETTEN P LED1x4050 J724 T840 R80 232 232 110 4414 33,3 133 80+ 4000 0,7

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
T857 Colour temperature 5700K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous
testing system, 3 hours
EM3D Emergency version 3 hours with DALI interface
WIE3 -0.5m 3-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector with 0.5m cable WIE5D -0.5m 5-DA-COMMONTANSY DALI “Wieland – gesis classic” type or
compatible connector with 0.5m cable
QBX2 -0.1m 2-DA-COMMONTANSY quick connection box on 0.1m cable, Push -in
terminal, 3x2x2.5mm2
Europlug -1.5m 2-DA-COMMONTANSY “Europlug” type plug with 2×1.0mm 1.5m cable
Europlug -3.0m 2-DA-COMMONTANSY “Europlug” type plug with 2×1.0mm 3.0m cable
RND BLACK DA-INDIANHEMP luminaire frame in black

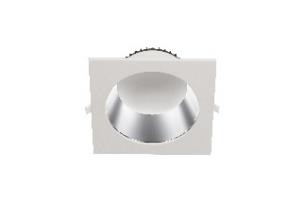

SQ WHITE Square luminaire frame in white
SQ BLACK Square luminaire frame in black

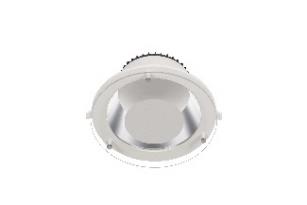

GLASS WHITE DA-INDIANHEMP luminaire frame in white, with dropped down
glass cover
GLASS BLACK DA-INDIANHEMP luminaire frame in black, with dropped down
glass cover
R60 R80
