Description

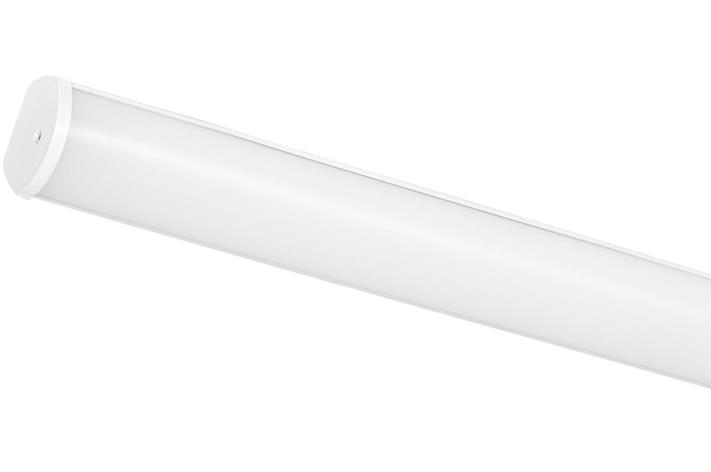

DA-DYERSOAK

direct
translucent micro -linear polycarbonate diffuser
steel
white, RAL9003
MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L80B10
3
I (II optional)
IP54
IK05
D
Glow wire test, 850
Operating temperature range, ta -15+35
On ceiling or wall. Push -in terminal, 5x2x2.5mm2
Indoor
Office, education, hotel, corridor, staircase, healthcare, bathroom, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
COR Driver with Corridor function (never off)
COR1min Driver with Corridor function 1min (switch off after 1
min.)
COR30min Driver with Corridor function 30min (switch off after 30
min.)
MW Integrated microwave (MW) motion sensor with on -off
control
MWRFMD Built-in microwave motion sensor with integrated
wireless transceiver. Sensor can serve as both master
and slave. Staircase, Corridor, dimming
control.
MWRFM Built-in microwave motion sensor with integrated
wireless transceiver. Sensor can serve as both master
and slave. Staircase, Corridor. MWRFSD Built-in wireless receiver for receiving master luminaire
control signals. Staircase, Corridor, dimming
control.
MWRFS Built-in wireless receiver for receiving master luminaire
control signals. Staircase, Corridor.
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous
testing system, 3 hours
EM3D Emergency version 3 hours with DALI interface
*note – Operating temperature range for Luminaires with EM option, ta 0…
+35
*note – EM3B/A/ H113; H196
II Electric shock protection class II
2Gr 2pcs extra sealing grommets for cable entry through
end caps included into luminaire set
RAL RAL colour

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-DYERSOAK1x2150 H113 T830 MPRZ 615 97 72 2046 15,5 132 80+ 3000 1,5
DA-DYERSOAK1x2550 H196 T830 MPRZ 615 97 72 2412 18,8 128 80+ 3000 1,5
DA-DYERSOAK1x3550 H114 T830 MPRZ 1175 97 72 3376 25,7 131 80+ 3000 2,3
DA-DYERSOAK1x5100 H115 T830 MPRZ 1175 97 72 4824 35,5 136 80+ 3000 2,3
DA-DYERSOAK1x4450 H200 T830 MPRZ 1455 97 72 4220 31,8 133 80+ 3000 2,8
DA-DYERSOAK1x6350 H116 T830 MPRZ 1455 97 72 6030 45,3 133 80+ 3000 2,8
DA-DYERSOAK1x2150 H113 T840 MPRZ 1G
2Gr 615 97 72 2142 15,5 138 80+ 4000 1,5
DA-DYERSOAK1x2550 H196 T840 MPRZ 615 97 72 2525 18,6 136 80+ 4000 1,5
DA-DYERSOAK1x3550 H114 T840 MPRZ
1G 2Gr 1175 97 72 3534 25,7 137 80+ 4000 2,3
DA-DYERSOAK1x5100 H115 T840 MPRZ
1G 2Gr 1175 97 72 5051 35,5 142 80+ 4000 2,3
DA-DYERSOAK1x4450 H200 T840 MPRZ 1455 97 72 4418 31,8 139 80+ 4000 2,8
DA-DYERSOAK1x6350 H116 T840 MPRZ
1G 2Gr 1455 97 72 6313 45,3 139 80+ 4000 2,8
