Description

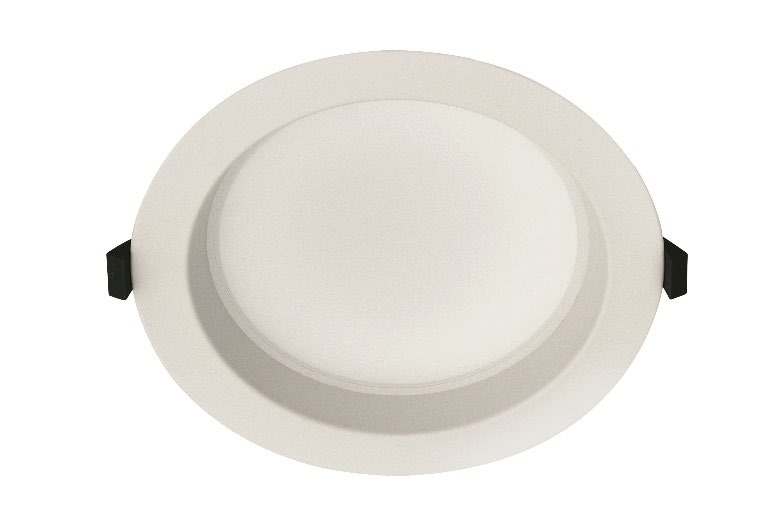

DA-FALSEALDER P LED

direct
opal polycarbonate diffuser
aluminium
white (RAL9016)
MDA- 220 -240V, 50/60Hz
LED lifetime, 50000/L70B50 5
I I
IP44
IK0 4
Operating temperature range, ta 0…+35
In ceilings with cut -out openings (mounting brackets included). Cable, 0.1m, 2×0.75mm2
Indoor
Office, education, hotel, corridor, bathroom, retail, showroom, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface WIE3 -0.5m 3-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector with 0.5m cable
WIE5D -0.5m 5-DA-COMMONTANSY DALI “Wieland – gesis classic” type or compatible
connector with 0.5m cable
QBX2 -0.1m 2-DA-COMMONTANSY quick connection box on 0.1m cable, Push -in
terminal, 2x2x2.5mm2
Europlug -1.5m 2-DA-COMMONTANSY “Europlug” type plug with 2×1.0mm 1.5m cable
Europlug -3.0m 2-DA-COMMONTANSY “Europlug” type plug with 2×1.0mm 3.0m cable

OP

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-FALSEALDER P LED1x1000 E899 T830 OP 113 113 55 1000 10 100 80+ 3000 0,3
DA-FALSEALDER P LED1x1400 E900 T830 OP 143 143 59 1400 14 100 80+ 3000 0,4
DA-FALSEALDER P LED1x2000 E902 T830 OP 200 200 68 2000 20 100 80+ 3000 0,7
DA-FALSEALDER P LED1x1000 E899 T840 OP 113 113 55 1025 10 103 80+ 4000 0,3
DA-FALSEALDER P LED1x1400 E900 T840 OP 143 143 59 1435 14 103 80+ 4000 0,4
DA-FALSEALDER P LED1x2000 E902 T840 OP 200 200 68 2050 20 103 80+ 4000 0,7
