Description

DA-FALSEBOX

direct
opal micro -linear polycarbonate diffuser, matt micro -prismatic polycarbonate diffuser, low glare
steel
white (RAL9003)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 50000/L80B10
3
I
IP44
IK0 4
Operating temperature range, ta -10+40
On ceiling or wall. Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, corridor, staircase, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification

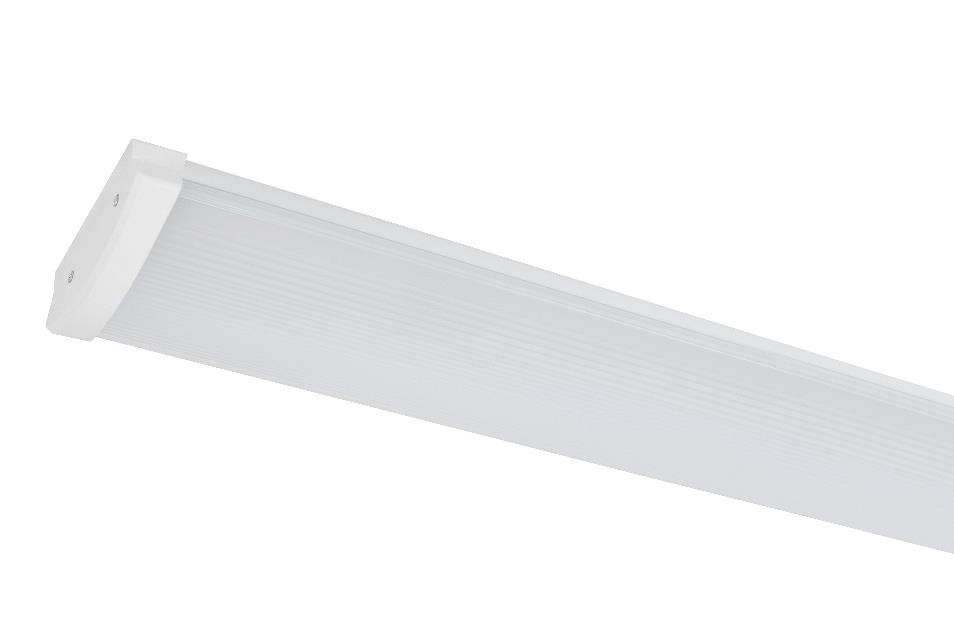

*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DPRZ De-glaring micro -prismatic diffuser
*note – minimum order quantities may apply
DALI Driver with DALI interface and switch -control dimming
COR Driver with Corridor function (never off)
COR1min Driver with Corridor function 1min (switch off after 1 min.)
COR30min Driver with Corridor function 30min (switch off after 30
min.)
MW Integrated microwave (MW) motion sensor with on -off
control
EM3 Emergency version 3 hours
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
*note – Operating temperature range for Luminaires with EM option, ta 0…
+35
5TB 5-DA-COMMONTANSY terminal block in middle of luminaire for easy
through wiring
1LIN Through wiring 3×1.5 mm with two push -in terminal
blocks 3LIN Through wiring 5×1.5 mm with two push -in terminal
blocks
1LIN2.5 Through wiring 3×2.5 mm with two push -in terminal
blocks
3LIN2.5 Through wiring 5×2.5 mm with two push -in terminal
blocks
*note – LIN options applicable for models longer than 800mm, for shorter
models 5TB option
2G StrDA-CANOEBIRCH relief for power supply cable, 2pcs
II Electric shock protection class II
2Gr Pre-drilled end caps with extra sealing grommets included
RAL RAL colour
*note – thermoplastic end covers are only available in white, light grey and
black colours

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-FALSEBOX2x1700 H220 T830 OP LT80 1182 146 60 3187 23,7 134 80+ 3000 3,0
DA-FALSEBOX2x2000 H221 T830 OP LT80 1182 146 60 3790 28,5 133 80+ 3000 3,0
DA-FALSEBOX2x2300 H222 T830 OP LT80 1182 146 60 4342 33,6 129 80+ 3000 3,0
DA-FALSEBOX2x2100 H223 T830 OP LT80 1462 146 60 3983 29,7 134 80+ 3000 3,8
DA-FALSEBOX2x2500 H224 T830 OP LT80 1462 146 60 4738 35,6 133 80+ 3000 3,8
DA-FALSEBOX2x2850 H225 T830 OP LT80 1462 146 60 5428 41,9 130 80+ 3000 3,8
DA-FALSEBOX2x1700 H220 T840 OP LT80 1182 146 60 3336 23,7 141 80+ 4000 3,0
DA-FALSEBOX2x2000 H221 T840 OP LT80 1182 146 60 3968 28,5 139 80+ 4000 3,0
DA-FALSEBOX2x2300 H222 T840 OP LT80 1182 146 60 4546 33,6 135 80+ 4000 3,0
DA-FALSEBOX2x2100 H223 T840 OP LT80 1462 146 60 4171 29,7 140 80+ 4000 3,8
DA-FALSEBOX2x2500 H224 T840 OP LT80 1462 146 60 4960 35,6 139 80+ 4000 3,8
DA-FALSEBOX2x2850 H225 T840 OP LT80 1462 146 60 5683 41,9 136 80+ 4000 3,8
