Description

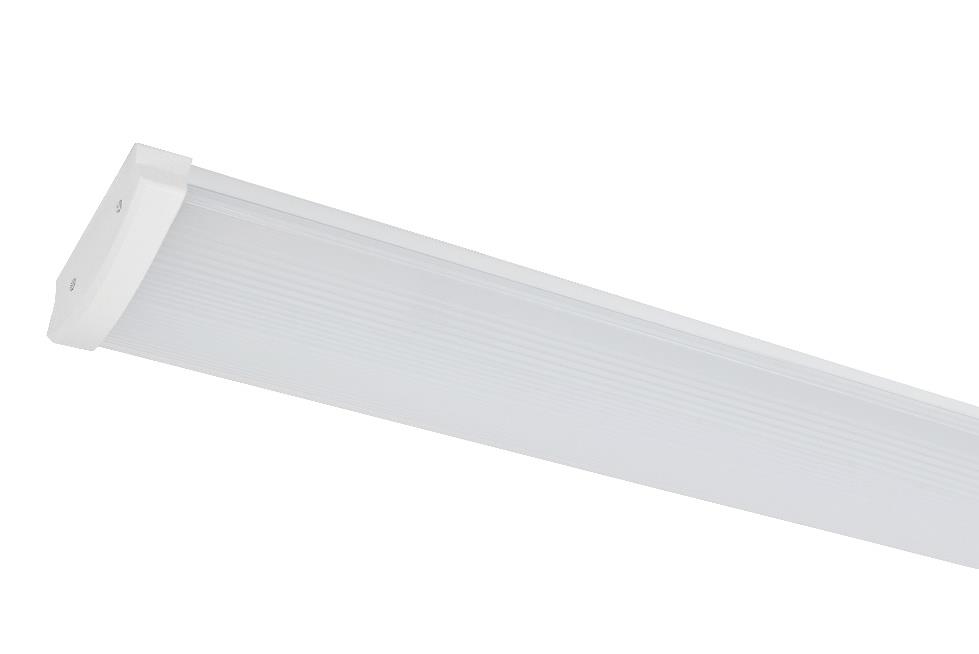

DA-FALSEBOX LED

direct
opal micro -linear polycarbonate diffuser , matt micro -prismatic polycarbonate diffuser, low glare
steel
white (RAL9003)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP44
IK0 4
Operating temperature range, ta -10+40
On ceiling or wall. Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, corridor, staircase, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-FALSEBOX2x950 G938 T830 OP LT80 622 146 60 1799 12,7 142 80+ 3000 1,9
DA-FALSEBOX2x1150 G939 T830 OP LT80 622 146 60 2140 15,4 139 80+ 3000 1,9
DA-FALSEBOX2x1300 G940 T830 OP LT80 622 146 60 2461 17,9 137 80+ 3000 1,9
DA-FALSEBOX2x1650 G941 T830 OP LT80 622 146 60 3094 23,7 131 80+ 3000 1,9
DA-FALSEBOX2x1900 G942 T830 OP LT80 1182 146 60 3599 24,4 148 80+ 3000 3,0
DA-FALSEBOX2x2300 G943 T830 OP LT80 1182 146 60 4279 29,1 147 80+ 3000 3,0
DA-FALSEBOX2x2600 G944 T830 OP LT80 1182 146 60 4922 34,1 144 80+ 3000 3,0
DA-FALSEBOX2x3300 G945 T830 OP LT80 1182 146 60 6189 44,3 140 80+ 3000 3,0
DA-FALSEBOX2x2400 G946 T830 OP LT80 1462 146 60 4499 29,8 151 80+ 3000 3,8
DA-FALSEBOX2x2850 G947 T830 OP LT80 1462 146 60 5349 36,0 149 80+ 3000 3,8
DA-FALSEBOX2x3250 G948 T830 OP LT80 1462 146 60 6153 41,8 147 80+ 3000 3,8
DA-FALSEBOX2x4100 G949 T830 OP LT80 1462 146 60 7736 54,2 143 80+ 3000 3,8
DA-FALSEBOX2x950 G938 T840 OP LT80 622 146 60 1897 12,7 149 80+ 4000 1,9
DA-FALSEBOX2x1150 G939 T840 OP LT80 622 146 60 2255 15,2 148 80+ 4000 1,9
DA-FALSEBOX2x1300 G940 T840 OP LT80 622 146 60 2594 17,3 150 80+ 4000 1,9
DA-FALSEBOX2x1650 G941 T840 OP LT80 622 146 60 3262 23,5 139 80+ 4000 1,9
DA-FALSEBOX2x1900 G942 T840 OP LT80 1182 146 60 3794 24,4 155 80+ 4000 3,0
DA-FALSEBOX2x2300 G943 T840 OP LT80 1182 146 60 4511 29,1 155 80+ 4000 3,0
DA-FALSEBOX2x2600 G944 T840 OP LT80 1182 146 60 5189 34,1 152 80+ 4000 3,0
DA-FALSEBOX2x3300 G945 T840 OP LT80 1182 146 60 6523 44,3 147 80+ 4000 3,0
DA-FALSEBOX2x2400 G946 T840 OP LT80 1462 146 60 4742 29,8 159 80+ 4000 3,8
DA-FALSEBOX2x2850 G947 T840 OP LT80 1462 146 60 5638 36,0 157 80+ 4000 3,8
DA-FALSEBOX2x3250 G948 T840 OP LT80 1462 146 60 6486 41,8 155 80+ 4000 3,8
DA-FALSEBOX2x4100 G949 T840 OP LT80 1462 146 60 8154 54,2 150 80+ 4000 3,8
