Description

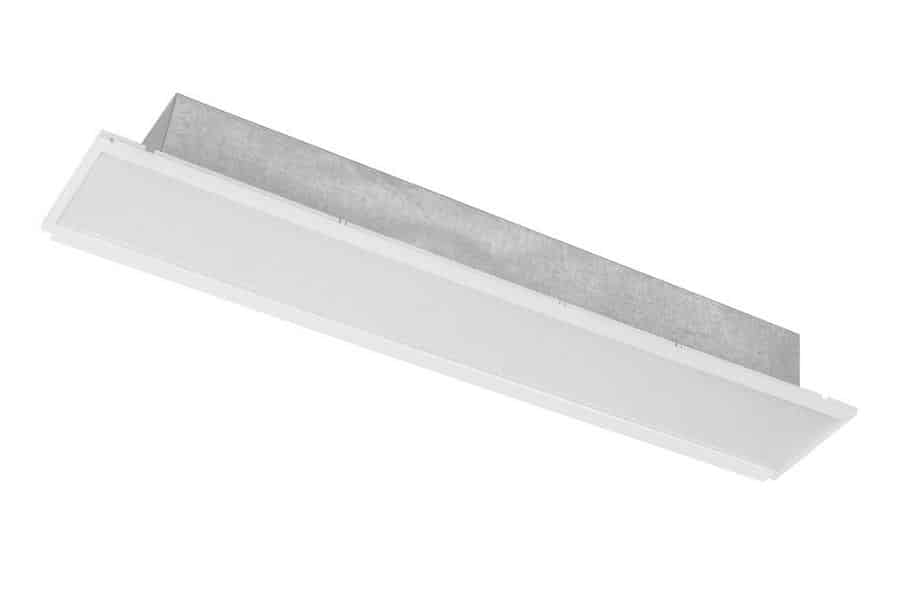

DA-FENNEL

direct
matt micro -prismatic PMMA diffuser, translucent micro -prismatic diffuser
steel
white, RAL9003
MDA- 220 -240V, 50/60Hz
LED lifetime, 100000/L80B10
3
I
IP4 0/20
IK0 2
Operating temperature range, ta 0+35

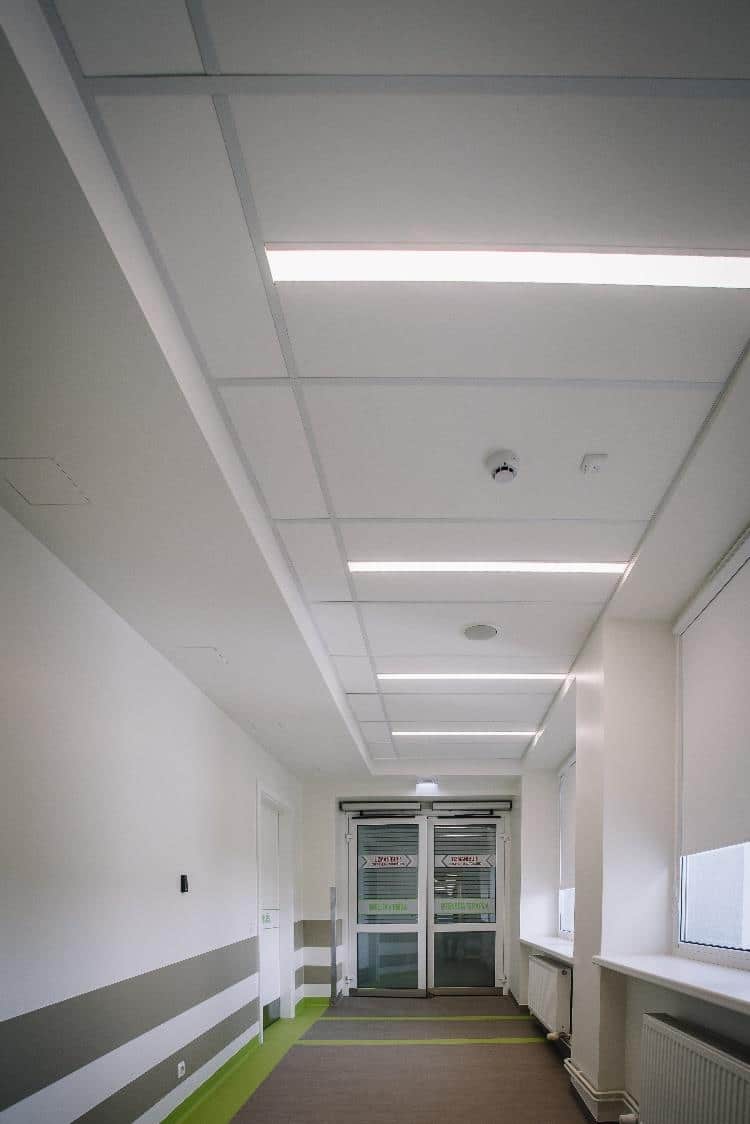

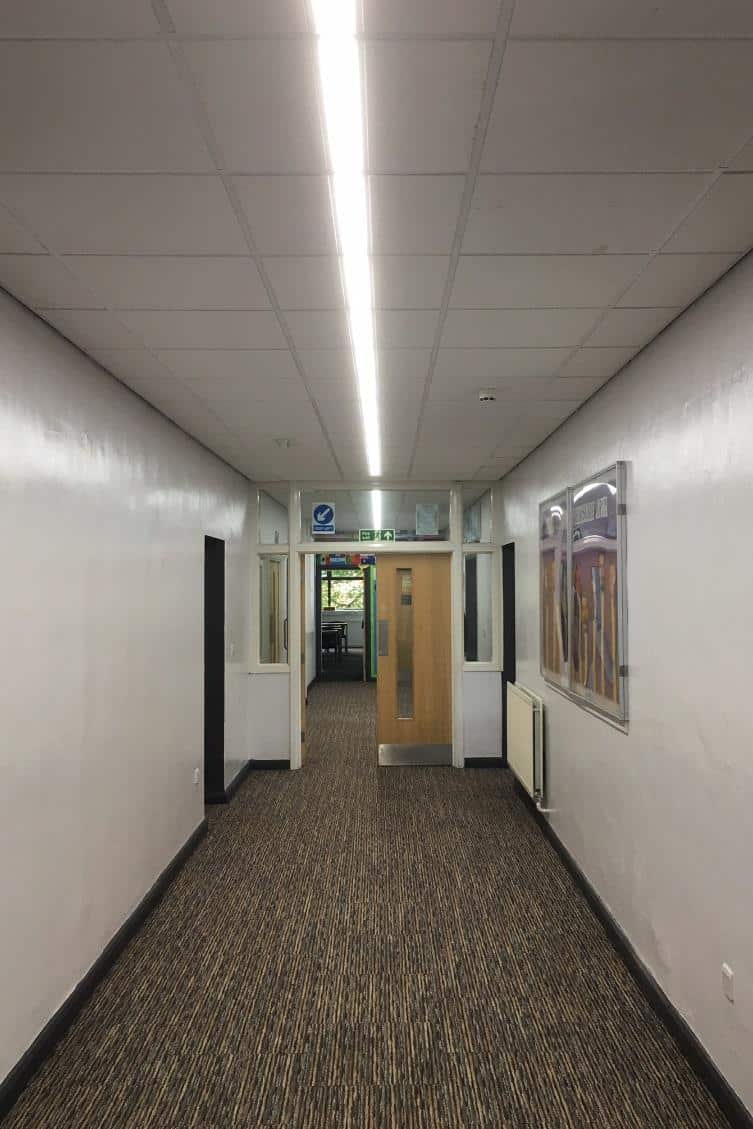

In modular suspended ceilings. Luminaire from two parts and single gearbox can be installed into every next tile, or optionally into
every forth tile. Push -in terminal, 3x2x2.5mm2
Indoor

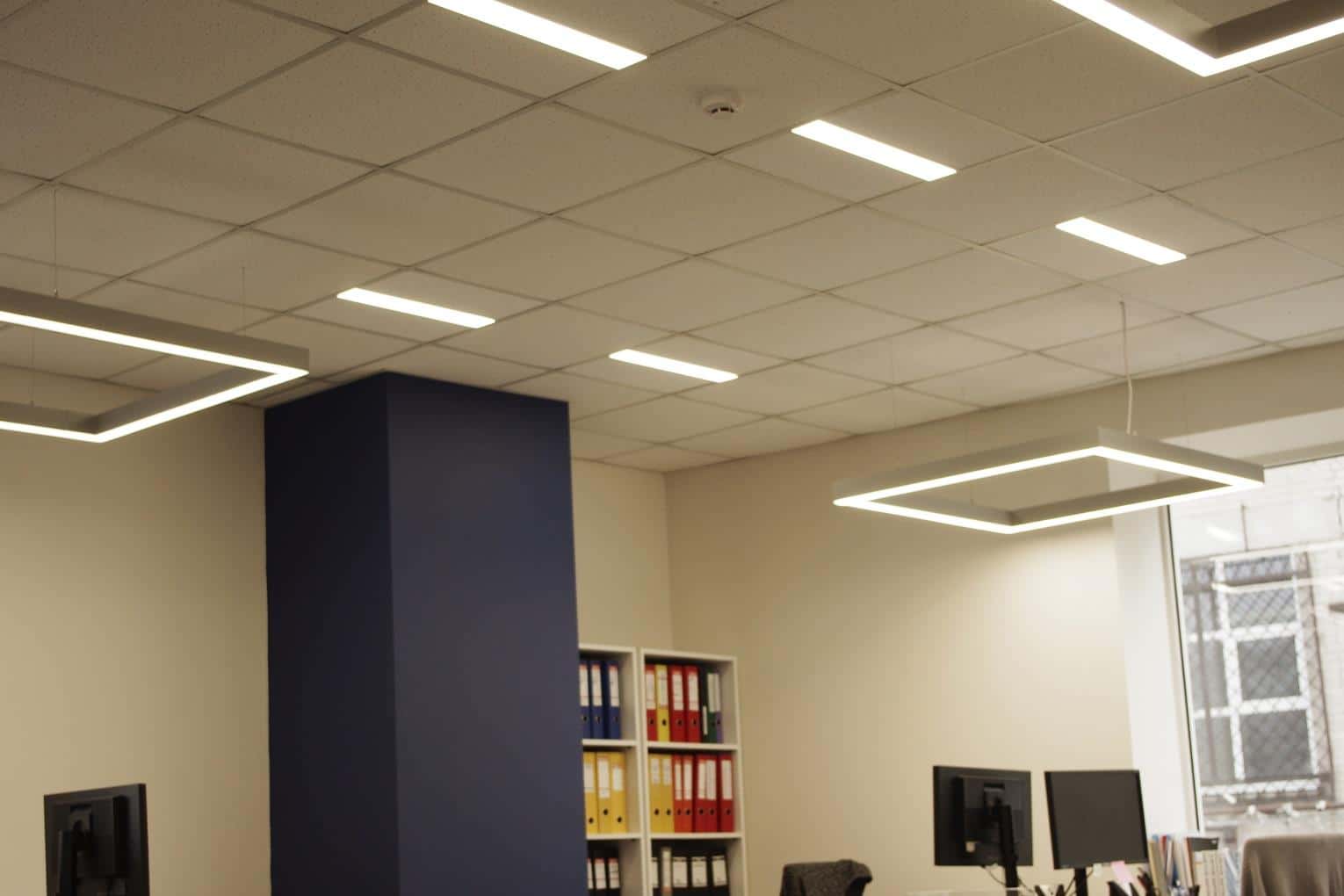

Office, education, corridor, retail, public place

Sensors ensure lighting is only on when and where it is needed. The sensors can bring huge benefits in terms of energy
management as they enable sunlight harvesting, automatic dimming, and sensing the presence of people. The lighting is only on
when actually required so cost savings are considerable. Energy saving – typically between 30% and 50%. are ideal
for all office areas including work spaces, conference rooms, corridors, break -out rooms, administrative areas, stairwells and similar
applications in schools and hospitals. For more information see the option list and energy saving solutions

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-FENNEL2x1x1950 G920 T830 DPRZ LT80
LO1 2×595 123 72 3782 25,9 146 80+ 3000 2,55
DA-FENNEL2x1x2700 G921 T830 DPRZ LT80
LO2 2×595 123 72 5240 37,6 139 80+ 3000 2,55
DA-FENNEL1x1950 G922 T830 DPRZ LT80 LO1 595 123 72 1891 13,8 137 80+ 3000 1,64
DA-FENNEL1x2700 G923 T830 DPRZ LT80 LO2 595 123 72 2620 18,8 139 80+ 3000 1,64
DA-FENNEL1x3850 G924 T830 DPRZ LT80 LO1 1195 123 72 3782 25,9 146 80+ 3000 2,4
DA-FENNEL1x5350 G925 T830 DPRZ LT80 LO2 1195 123 72 5240 37,6 139 80+ 3000 2,4
DA-FENNEL2x1x1950 G920 T840 DPRZ LT80
LO1 2×595 123 72 3986 25,9 154 80+ 4000 2,55
DA-FENNEL2x1x2700 G921 T840 DPRZ LT80
LO2 2×595 123 72 5523 37,6 147 80+ 4000 2,55
DA-FENNEL1x1950 G922 T840 DPRZ LT80 LO1 595 123 72 1993 13,7 145 80+ 4000 1,64
DA-FENNEL1x2700 G923 T840 DPRZ LT80 LO2 595 123 72 2761 18,8 147 80+ 4000 1,64
DA-FENNEL1x3850 G924 T840 DPRZ LT80 LO1 1195 123 72 3986 25,9 154 80+ 4000 2,4
DA-FENNEL1x5350 G925 T840 DPRZ LT80 LO2 1195 123 72 5523 37,6 147 80+ 4000 2,4

DA-FENNEL2x1x2150 G920 T830 MPRZ LT92
LO1 2×595 123 72 4097 25,9 158 80+ 3000 2,55
DA-FENNEL2x1x3000 G921 T830 MPRZ LT92
LO2 2×595 123 72 5677 37,6 151 80+ 3000 2,55
DA-FENNEL1x2150 G922 T830 MPRZ LT92 LO1 595 123 72 2048 13,8 148 80+ 3000 1,64
DA-FENNEL1x3000 G923 T830 MPRZ LT92 LO2 595 123 72 2838 18,8 151 80+ 3000 1,64
DA-FENNEL1x4300 G924 T830 MPRZ LT92 LO1 1195 123 72 4097 25,9 158 80+ 3000 2,4
DA-FENNEL1x5950 G925 T830 MPRZ LT92 LO2 1195 123 72 5677 37,6 151 80+ 3000 2,4
DA-FENNEL2x1x2150 G920 T840 MPRZ LT92
LO1 2×595 123 72 4319 25,9 167 80+ 4000 2,55
