Description

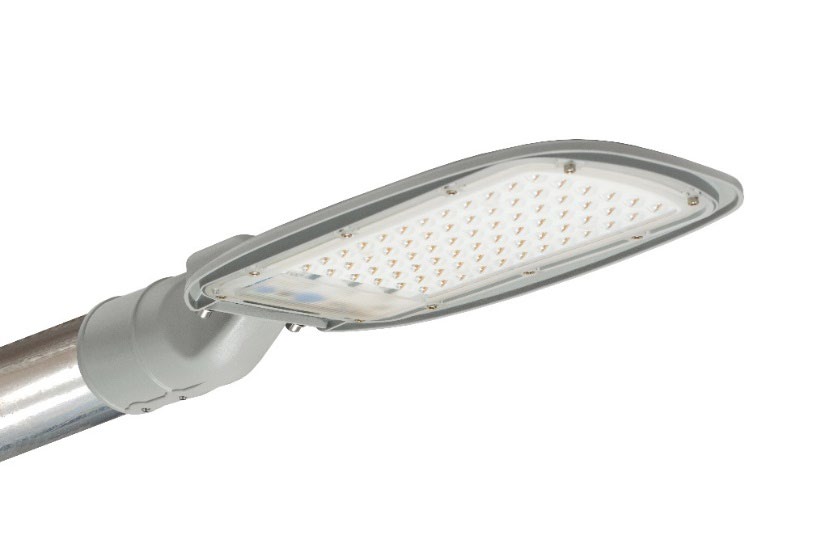

DA-GILLIFLOWER

direct
polycarbonate asymmetric street optics, UV stabilized, impact resistant
aluminium
light grey (RAL 7042)
MDA- 220-240V, 50/60Hz
LED lifetime, 50000/L70B50
5
I
IP65
IK0 8
Operating temperature range, ta -20+40
With two screws on 60mm horizontal or vertical DA-COMMONTANSY, on the wall (mounting bracket to be ordered separately). Cable, 0.45m,
3×1.00mm2
Outdoor
Parking area, public space

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T840 Colour temperature 4000K, CRI 80+ WALL MTG bracket (Street LED D60mm 1 0
P7035S)
Bracket for street luminaire installation onto wall,
DA-COMMONTANSY diameter D60mm, 10 DA-WHITEMAPLE, 1pcs
Power supply connector – IP66/IP68,
3×1.5mm2
Quick and easy to connect power supply
and luminaire cables connector – IP66/IP68,
3×1.5mm2, 4 50V/1 0A, 1pcs

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-GILLIFLOWER1x5000 H212 T840 447 166 72 5500 50 110 80+ 4000 1
DA-GILLIFLOWER1x3600 H241 T840 447 166 72 3600 30 120 80+ 4000 1,2
DA-GILLIFLOWER1x8400 H242 T840 545 225 72 8400 70 120 80+ 4000 2,37
STANDARD
