Description

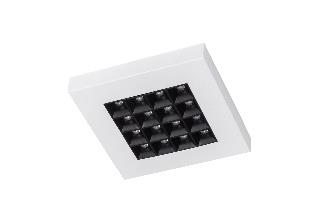

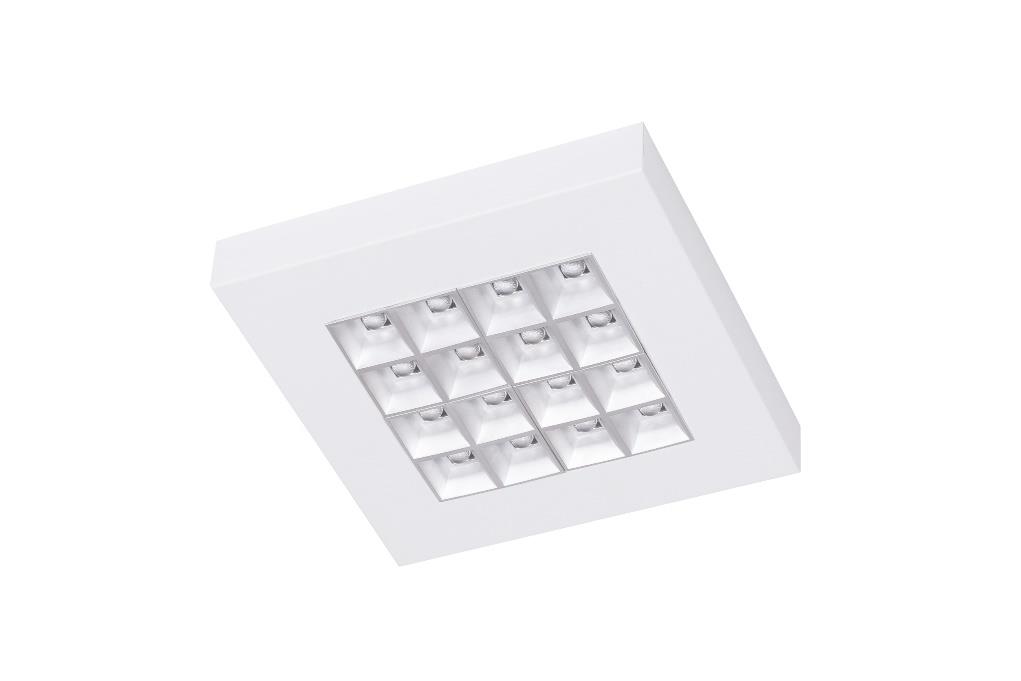

DA-GOLDENGLOW

direct
double parabolic reflector with lenses, low glare
steel
white, RAL 9003S
MDA- 220 -240V, 50 -60Hz
LED lifetime, 60000/L80B10
3
I
IP40
IK04
Operating temperature range, ta 0+35
On the ceiling. Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, hotel, corridor, bathroom, retail, showroom, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
WGC White gloss reflector with clear lens
BGC Black gloss reflector with clear lens
WMC White matt reflector with clear lens
BMC Black matt reflector with clear lens
DALI Driver with DALI interface and switch -control dimming
RAL RAL colour
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-GOLDENGLOW1x2300 J578 T830 WGC 255 255 37 2173 15,7 138 80+ 3000 1,4
DA-GOLDENGLOW1x2900 J579 T830 WGC 255 255 37 2535 18 141 80+ 3000 1,4
DA-GOLDENGLOW1x3800 J580 T830 WGC 255 255 37 3622 25,3 143 80+ 3000 1,4
DA-GOLDENGLOW1x2300 J578 T840 WGC 255 255 37 2050 15,7 131 80+ 4000 1,4
DA-GOLDENGLOW1x2900 J579 T840 WGC 255 255 37 2646 18 147 80+ 4000 1,4
DA-GOLDENGLOW1x3800 J580 T840 WGC 255 255 37 3777 25,3 149 80+ 4000 1,4
WGC BGC WMC BMC
