Description

DA-GREENASH

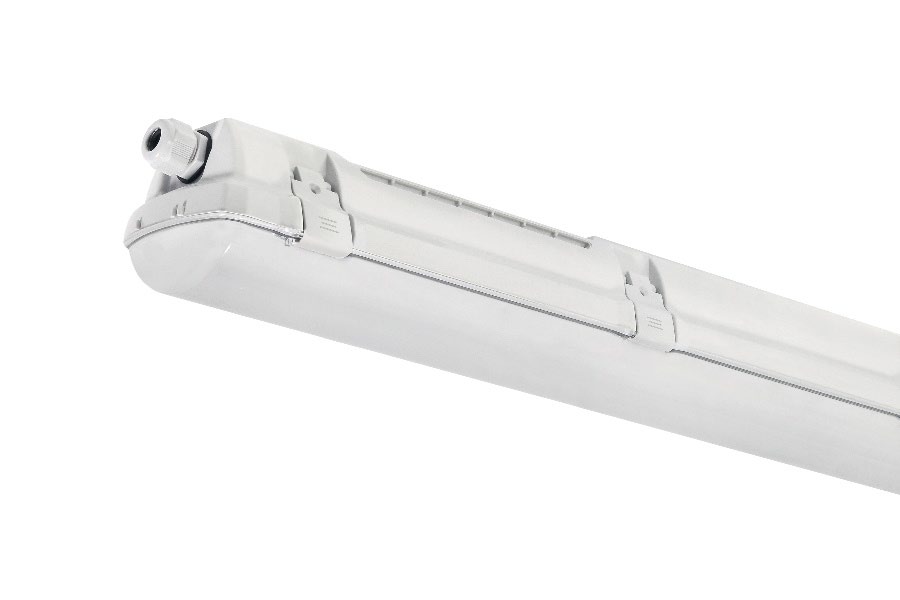

Luminaires Surface mounted or suspended waterDA-LOVEVINE, also available basic version
direct
opal polycarbonate diffuser, UV stable, impact resistant
polycarbonate
light grey
MDA- 220 -240V, 50 -60Hz / 220-240V, 0/50-60Hz , 220 -240V, 0/50 -60Hz
LED lifetime, 100000/L80B10, 50000/L80B10 3
I
IP66
IK10
Operating temperature range, ta -20…+35/+40, ta -20…+35
On the ceiling or wall (mounting brackets included), or suspended (hooks included). Push -in terminal, 3x2x2.5mm2
Indoor/outdoor with roof

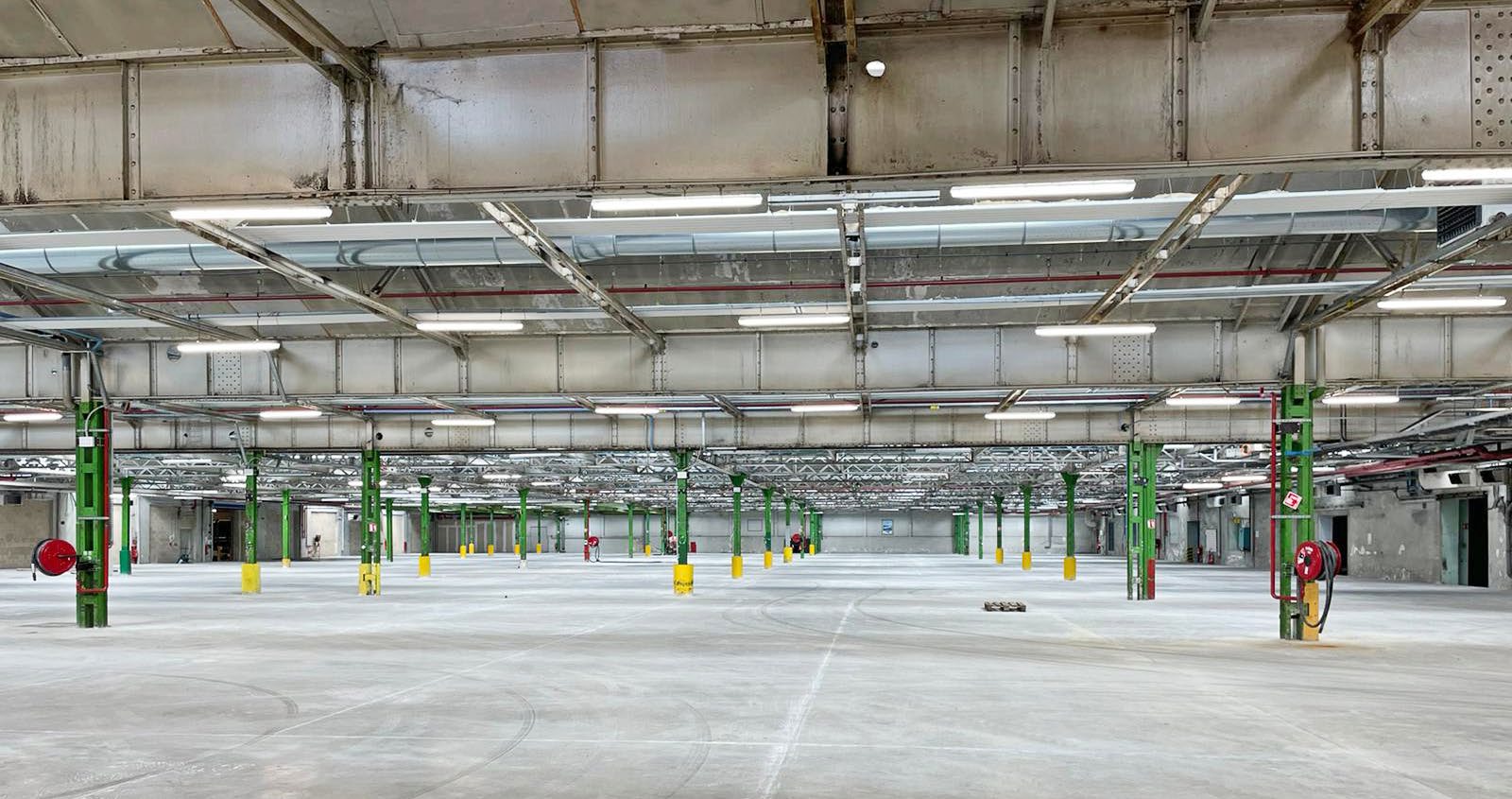

Industry, warehouse, hall, sports, public place, parking area, transport terminal, parking area

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-GREENASH1x1500 J738 T840 PC/PC OP 615 98 84 1464 9,3 157 80+ 4000 0,9
DA-GREENASH1x1700 J739 T840 PC/PC OP 615 98 84 1654 10,8 153 80+ 4000 0,9
DA-GREENASH1x2200 J740 T840 PC/PC OP 615 98 84 2197 14,0 157 80+ 4000 0,9
DA-GREENASH1x2500 J741 T840 PC/PC OP 615 98 84 2481 15,7 158 80+ 4000 0,9
DA-GREENASH1x2950 J742 T840 PC/PC OP 615 98 84 2929 18,2 161 80+ 4000 0,9
DA-GREENASH1x3350 J743 T840 PC/PC OP 615 98 84 3307 20,7 160 80+ 4000 0,9
DA-GREENASH1x3700 J744 T840 PC/PC OP 615 98 84 3661 22,2 165 80+ 4000 0,9
DA-GREENASH1x4150 J745 T840 PC/PC OP 615 98 84 4134 25,8 160 80+ 4000 0,9
DA-GREENASH1x4400 J746 T840 PC/PC OP 615 98 84 4393 26,3 167 80+ 4000 0,9
DA-GREENASH1x5000 J747 T840 PC/PC OP 615 98 84 4961 30,3 164 80+ 4000 0,9
DA-GREENASH1x2950 J748 T840 PC/PC OP 1175 98 84 2929 18,0 163 80+ 4000 1,7
DA-GREENASH1x3350 J749 T840 PC/PC OP 1175 98 84 3307 20,9 158 80+ 4000 1,7
DA-GREENASH1x4400 J750 T840 PC/PC OP 1175 98 84 4393 26,3 167 80+ 4000 1,7
DA-GREENASH1x5000 J751 T840 PC/PC OP 1175 98 84 4961 30,3 164 80+ 4000 1,7
DA-GREENASH1x5900 J752 T840 PC/PC OP 1175 98 84 5858 33,6 174 80+ 4000 1,7
DA-GREENASH1x6650 J753 T840 PC/PC OP 1175 98 84 6615 38,6 171 80+ 4000 1,7
DA-GREENASH1x7350 J754 T840 PC/PC OP 1175 98 84 7322 41,5 176 80+ 4000 1,7
DA-GREENASH1x8300 J755 T840 PC/PC OP 1175 98 84 8269 47,2 175 80+ 4000 1,7
DA-GREENASH1x8800 J756 T840 PC/PC OP 1175 98 84 8787 49,3 178 80+ 4000 1,7
DA-GREENASH1x9950 J757 T840 PC/PC OP 1175 98 84 9922 56,7 175 80+ 4000 1,7
DA-GREENASH1x5500 J758 T840 PC/PC OP 1455 98 84 5492 31,5 174 80+ 4000 2,0
DA-GREENASH1x6250 J759 T840 PC/PC OP 1455 98 84 6202 36,2 171 80+ 4000 2,0
DA-GREENASH1x7350 J760 T840 PC/PC OP 1455 98 84 7322 41,5 176 80+ 4000 2,0
DA-GREENASH1x8300 J761 T840 PC/PC OP 1455 98 84 8269 47,2 175 80+ 4000 2,0
DA-GREENASH1x9200 J762 T840 PC/PC OP 1455 98 84 9153 51,3 178 80+ 4000 2,0
DA-GREENASH1x10350 J763 T840 PC/PC OP 1455 98 84 10336 59,0 175 80+ 4000 2,0
DA-GREENASH1x11000 J764 T840 PC/PC OP 1455 98 84 10983 61,6 178 80+ 4000 2,0
DA-GREENASH1x12450 J765 T840 PC/PC OP 1455 98 84 12403 70,9 175 80+ 4000 2,0

DA-GREENASH1x1950 H227 T840 PC/PC OP 615 98 84 1916 12,8 150 80+ 4000 0,9
DA-GREENASH1x2600 H228 T840 PC/PC OP 615 98 84 2555 17,1 149 80+ 4000 0,9
DA-GREENASH1x3200 H229 T840 PC/PC OP 615 98 84 3194 21,4 149 80+ 4000 0,9
DA-GREENASH1x3850 H230 T840 PC/PC OP 615 98 84 3833 25,7 149 80+ 4000 0,9
DA-GREENASH1x2600 H231 T840 PC/PC OP 1175 98 84 2556 17,1 149 80+ 4000 1,7
DA-GREENASH1x3850 H232 T840 PC/PC OP 1175 98 84 3832 25,7 149 80+ 4000 1,7
DA-GREENASH1x5150 H233 T840 PC/PC OP 1175 98 84 5109 33,5 153 80+ 4000 1,7
DA-GREENASH1x6400 H234 T840 PC/PC OP 1175 98 84 6387 41,9 152 80+ 4000 1,7
DA-GREENASH1x7700 H235 T840 PC/PC OP 1175 98 84 7665 50,3 152 80+ 4000 1,7
DA-GREENASH1x3200 H236 T840 PC/PC OP 1455 98 84 3195 21,4 149 80+ 4000 2,0
DA-GREENASH1x4800 H237 T840 PC/PC OP 1455 98 84 4790 31,4 153 80+ 4000 2,0
DA-GREENASH1x6400 H238 T840 PC/PC OP 1455 98 84 6387 41,9 152 80+ 4000 2,0
DA-GREENASH1x8000 H239 T840 PC/PC OP 1455 98 84 7984 52,3 153 80+ 4000 2,0
DA-GREENASH1x9600 H240 T840 PC/PC OP 1455 98 84 8955 59,7 150 80+ 4000 2,0
