Description

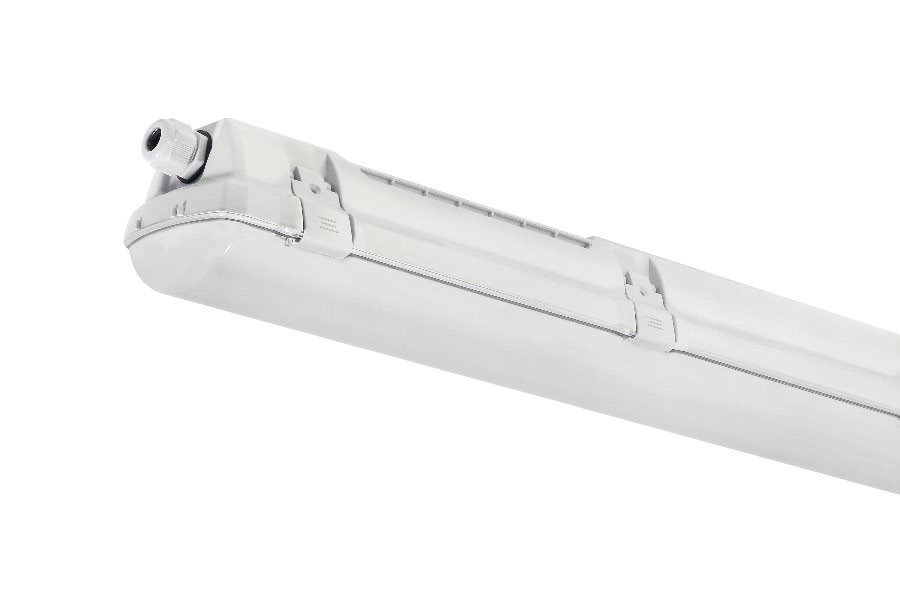

DA-GREENASH O LED

Luminaires Surface mounted or suspended waterDA-LOVEVINE
direct
polycarbonate diffuser with with narrow beam (ceiling height 7,5…12m), J585 -J588; wide beam (ceiling
height 2,5…4m) J585 -J596, UV stable, impact resistant
polycarbonate
light grey
MDA- 220-240V, 0/50 -60Hz
LED lifetime, 100000/L80B50
3
I
IP66
IK10
Operating temperature range, ta -25…+45/+50
On the ceiling or wall (mounting brackets included), or suspended (hooks included). Push -in terminal, 3x2x2.5 mm2
Indoor/outdoor with roof

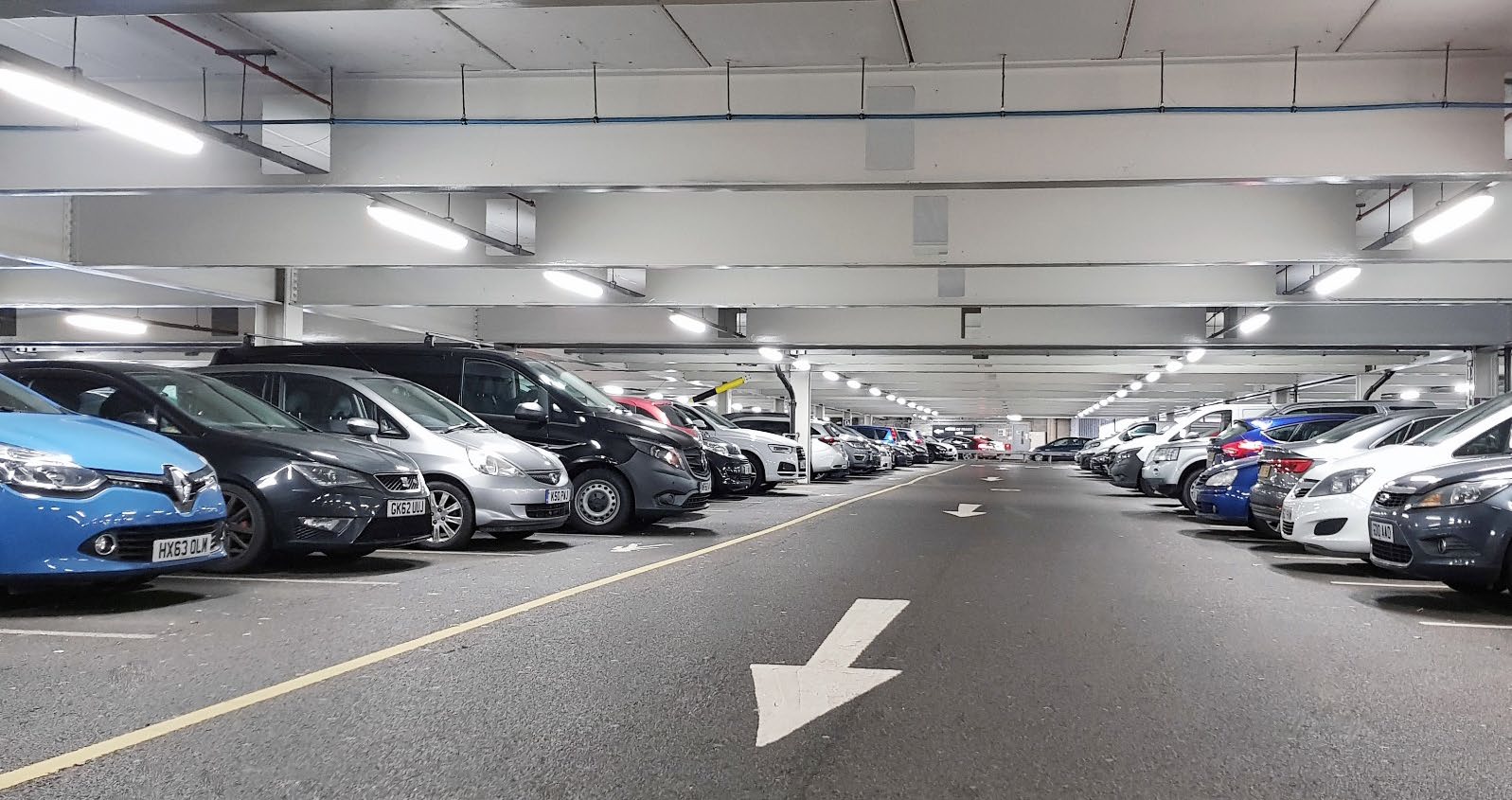

Industry, warehouse, hall, sports, public place, parking area, transport terminal, parking area

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-GREENASH O LED1x4000 J585 T840 PC/PC
L40x105 1175 98 84 3960 27 147 80+ 4000 1,7
DA-GREENASH O LED1x5700 J586 T840 PC/PC
L40x105 1175 98 84 5700 38 150 80+ 4000 1,7
DA-GREENASH O LED1x4950 J587 T840 PC/PC
L40x105 1455 98 84 4930 33 149 80+ 4000 2,0
DA-GREENASH O LED1x7050 J588 T840 PC/PC
L40x105 1455 98 84 7040 45 156 80+ 4000 2,0

DA-GREENASH O LED1x2400 J589 T840 PC/PC
L120x105 1175 98 84 2400 16 150 80+ 4000 1,7
DA-GREENASH O LED1x2900 J590 T840 PC/PC
L120x105 1175 98 84 2890 20 145 80+ 4000 1,7
DA-GREENASH O LED1x4050 J591 T840 PC/PC
L120x105 1175 98 84 4050 27 150 80+ 4000 1,7
DA-GREENASH O LED1x5850 J592 T840 PC/PC
L120x105 1175 98 84 5820 38 153 80+ 4000 1,7
DA-GREENASH O LED1x3050 J593 T840 PC/PC
L120x105 1455 98 84 3010 20 151 80+ 4000 2,0
DA-GREENASH O LED1x3650 J594 T840 PC/PC
L120x105 1455 98 84 3610 24 150 80+ 4000 2,0
DA-GREENASH O LED1x5050 J595 T840 PC/PC
L120x105 1455 98 84 5040 33 153 80+ 4000 2,0
DA-GREENASH O LED1x7200 J596 T840 PC/PC
L120x105 1455 98 84 7200 45 160 80+ 4000 2,0
