Description

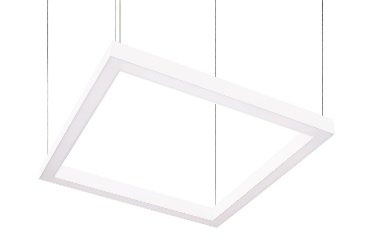

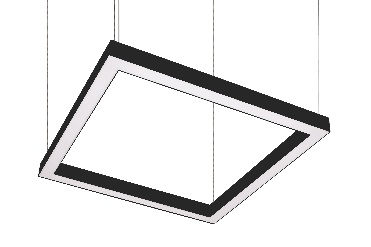

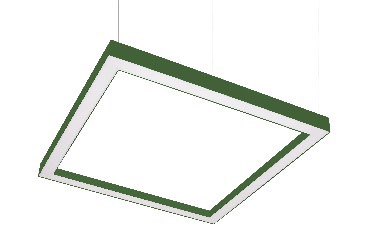

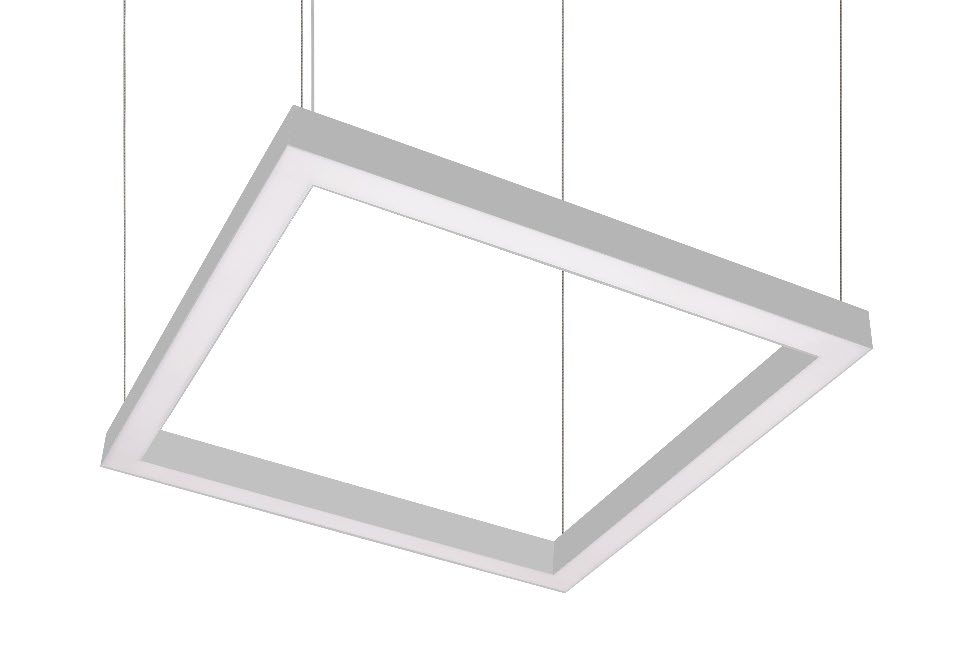

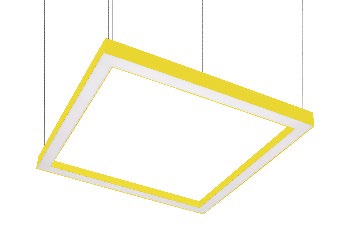

DA-HOGWEED

direct (optional direct/indirect LG3 versions)
opal polycarbanate diffuser/ matt micro- prismatic polycarbanate diffuser, low glare
aluminium
light grey (RAL9006)
MDA- 220-240V, 0/50/60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK05
Operating temperature range, ta 0 +35
Suspended (wire, cable and cap to be ordered separately). Cable 2.0m, 3×0.75mm2, transparent
Indoor

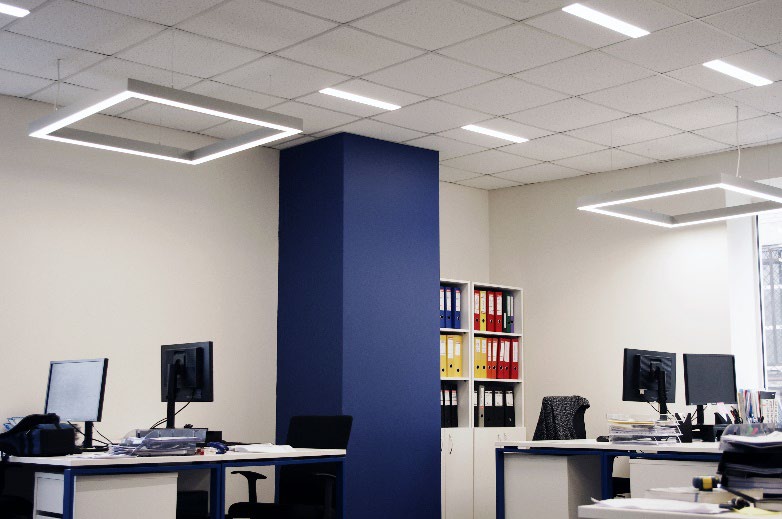

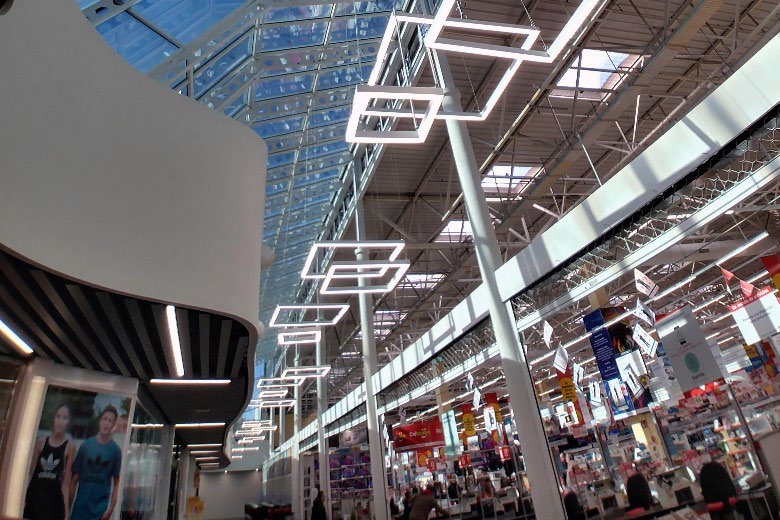

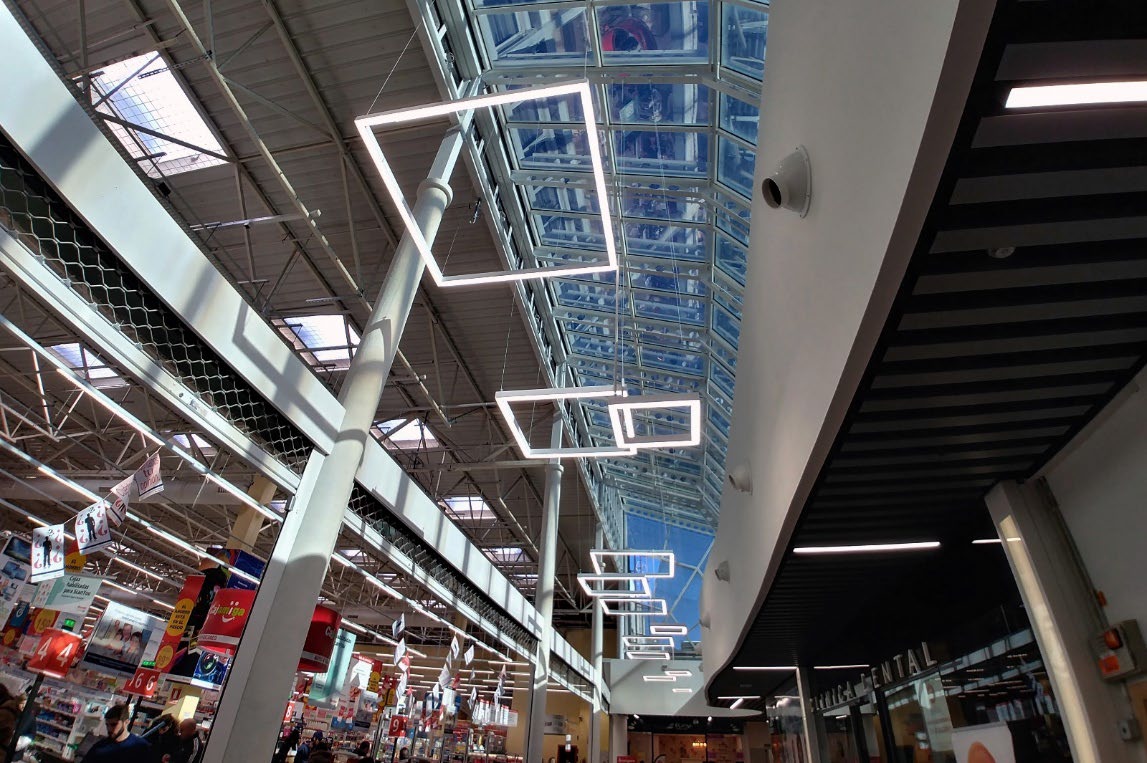

Office, education, hotel, retail, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appe arance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-HOGWEED1x3250 J344 T840 OP 620 620 68 3214 24,8 130 80+ 4000 4,6
DA-HOGWEED1x4400 J345 T840 OP 620 620 68 4380 34,7 126 80+ 4000 4,6
DA-HOGWEED1x6050 J346 T840 OP 620 620 68 6021 50,9 118 80+ 4000 4,6
DA-HOGWEED1x4550 D906 T840 OP 900 900 68 4542 36,4 125 80+ 4000 6,6
DA-HOGWEED1x6200 D907 T840 OP 900 900 68 6181 52,5 118 80+ 4000 6,6
DA-HOGWEED1x8400 D908 T840 OP 900 900 68 8383 77,8 108 80+ 4000 6,6
DA-HOGWEED1x6100 D909 T840 OP 1180 1180 68 6056 48,5 125 80+ 4000 8,8
DA-HOGWEED1x8250 D910 T840 OP 1180 1180 68 8241 70,0 118 80+ 4000 8,8
DA-HOGWEED1x11200 D911 T840 OP 1180 1180 68 11177 103,7 108 80+ 4000 8,8

DA-HOGWEED1x2850 J344 T840 DPRZ LT80 620 620 68 2807 24,8 113 80+ 4000 4,6
DA-HOGWEED1x3850 J345 T840 DPRZ LT80 620 620 68 3825 34,7 110 80+ 4000 4,6
DA-HOGWEED1x5300 J346 T840 DPRZ LT80 620 620 68 5258 50,9 103 80+ 4000 4,6
DA-HOGWEED1x4550 D906 T840 DPRZ LT80 900 900 68 3765 36,4 103 80+ 4000 6,6
DA-HOGWEED1x6200 D907 T840 DPRZ LT80 900 900 68 5124 52,5 98 80+ 4000 6,6
DA-HOGWEED1x8400 D908 T840 DPRZ LT80 900 900 68 6949 77,8 89 80+ 4000 6,6
DA-HOGWEED1x6100 D909 T840 DPRZ LT80 1180 1180 68 5020 48,5 103 80+ 4000 8,8
DA-HOGWEED1x8250 D910 T840 DPRZ LT80 1180 1180 68 6832 70,0 98 80+ 4000 8,8
DA-HOGWEED1x11200 D911 T840 DPRZ LT80 1180 1180 68 9265 103,7 89 80+ 4000 8,8
