Description

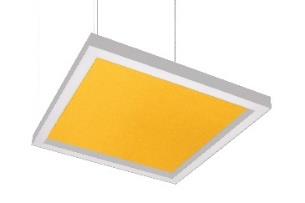

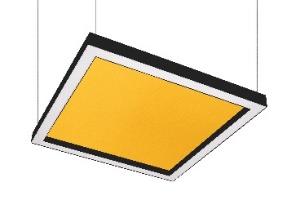

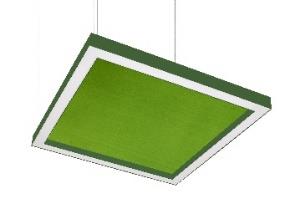

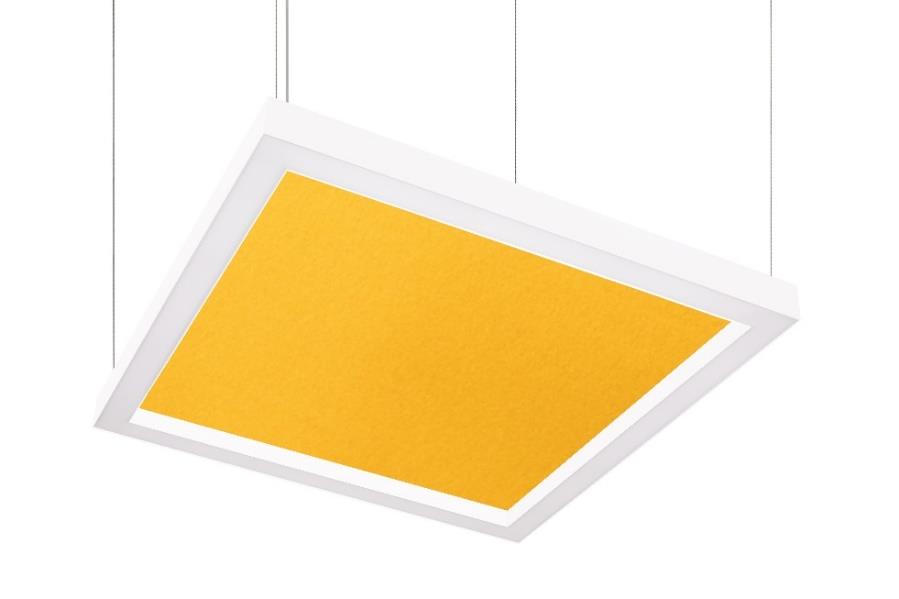

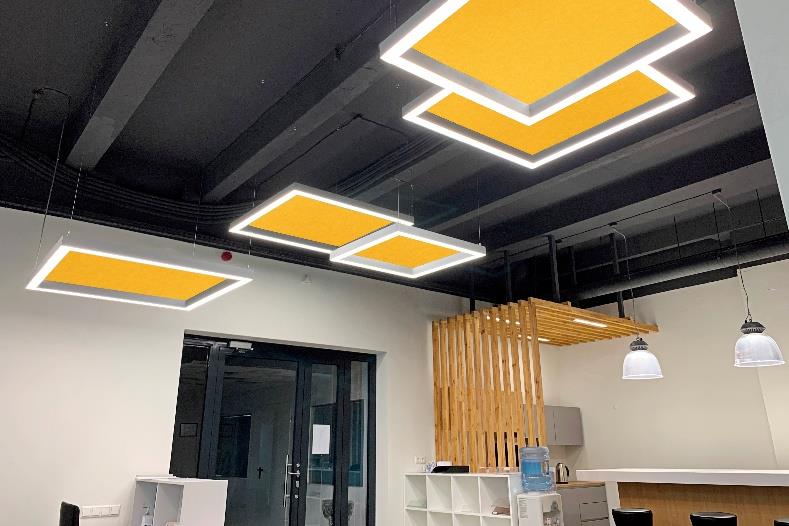

DA-HOGWEED A LED

direct
opal polycarbonate diffuser
aluminium
white, RAL9003S
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK05
Operating temperature range, ta 15…+35
Suspended (wire and cap to be ordered separately). Cable 2.0m, 3×0.75mm2, transparent
Indoor

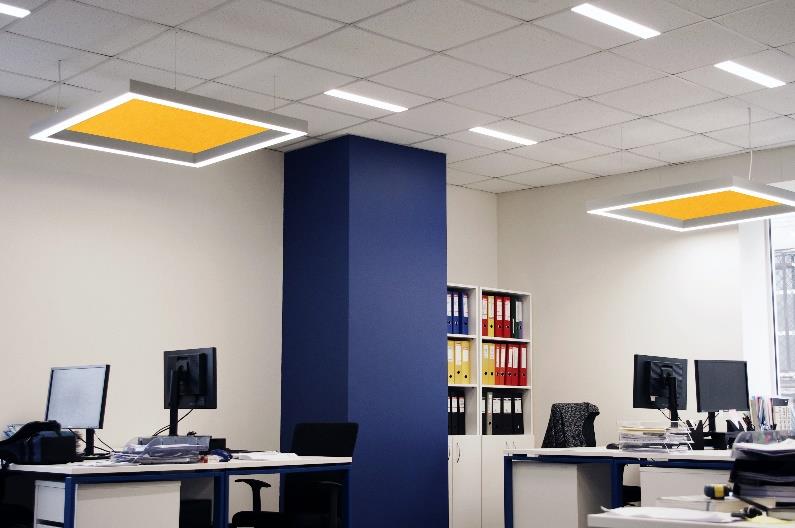

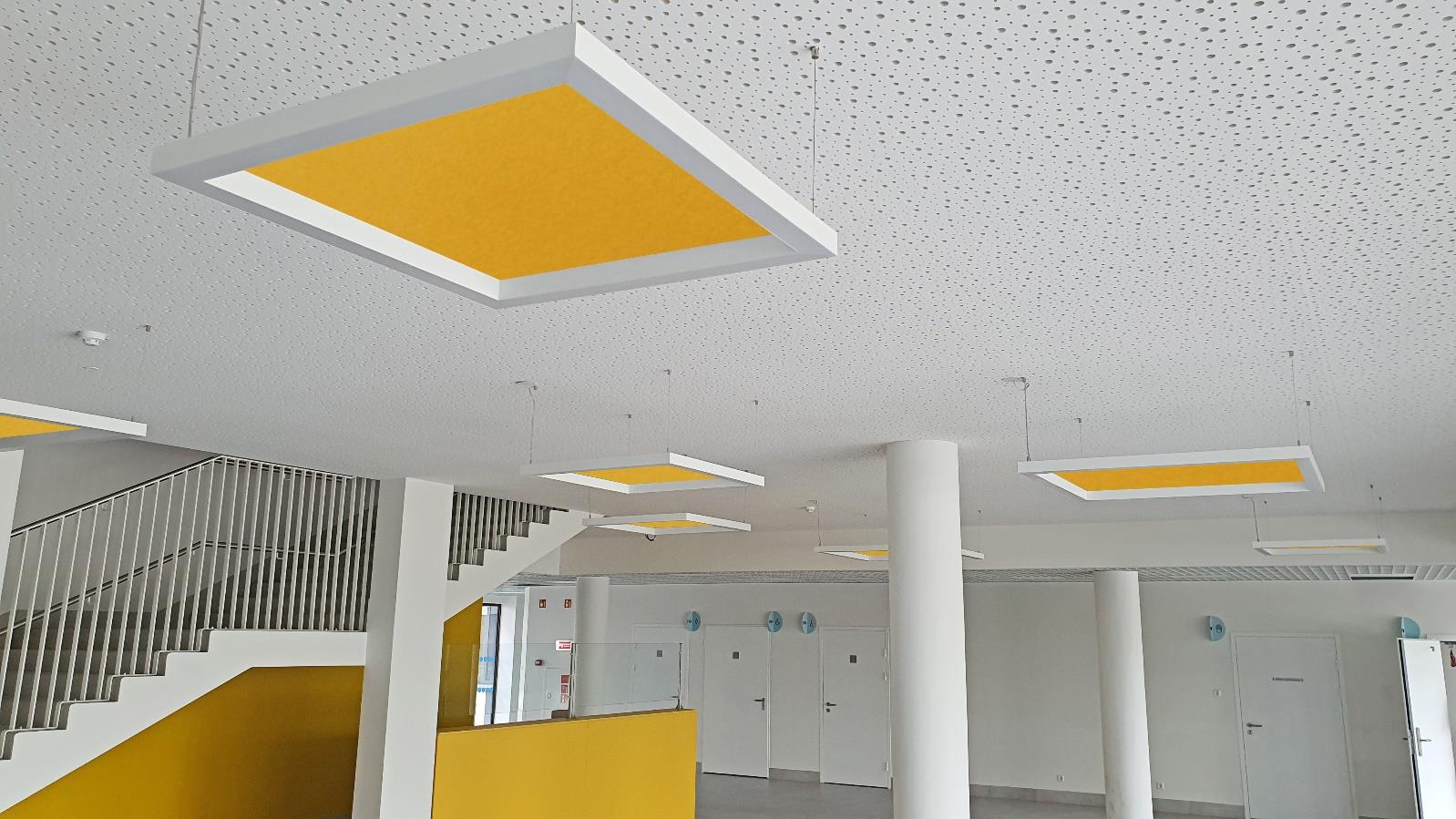

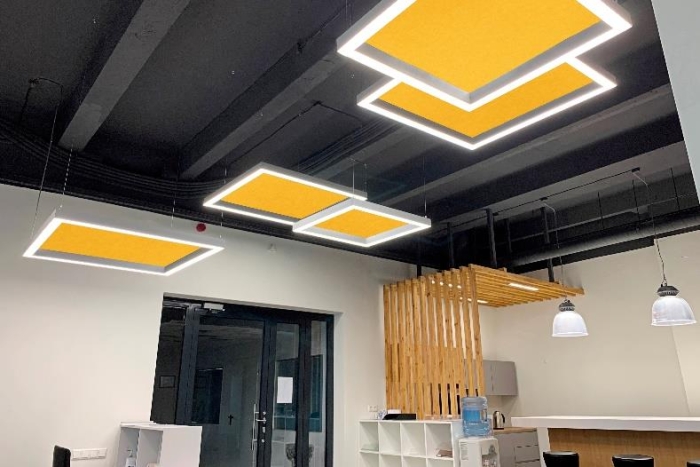

Office, education, hotel, retail, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selecte d and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DPRZ LT80 De-glaring micro -prismatic diffuser, matt
DALI Driver with DALI interface and switch -control dimming
SR Luminaire for surface mounting
RAL RAL colour
M… (felt color code) With Fabric cover, height 100mm

OP DPRZ LT80

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-HOGWEED A LED1x3250 J347 T840 OP
M… (felt color code) 620 620 68 3214 24,8 130 80+ 4000 5,6
DA-HOGWEED A LED1x4400 J348 T840 OP
M… (felt color code) 620 620 68 4380 34,7 126 80+ 4000 5,6
DA-HOGWEED A LED1x6050 J349 T840 OP
M… (felt color code) 620 620 68 6021 50,9 118 80+ 4000 5,6
DA-HOGWEED A LED1x4750 J350 T840 OP
M… (felt color code) 900 900 68 4721 36,4 130 80+ 4000 9,1
DA-HOGWEED A LED1x6450 J351 T840 OP
M… (felt color code) 900 900 68 6425 52,5 122 80+ 4000 9,1
DA-HOGWEED A LED1x8750 J352 T840 OP
M… (felt color code) 900 900 68 8713 77,8 112 80+ 4000 9,1
DA-HOGWEED A LED1x6300 J353 T840 OP
M… (felt color code) 1180 1180 68 6295 48,5 130 80+ 4000 13,4
DA-HOGWEED A LED1x8600 J354 T840 OP
M… (felt color code) 1180 1180 68 8567 70,0 122 80+ 4000 13,4
DA-HOGWEED A LED1x11650 J355 T840 OP
M… (felt color code) 1180 1180 68 11618 103,7 112 80+ 4000 13,4
