Description

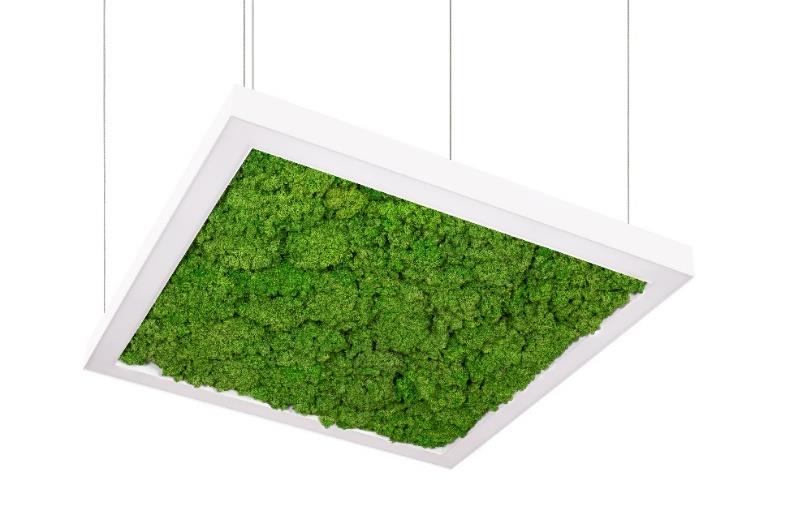

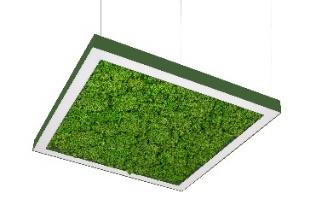

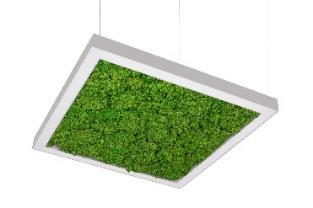

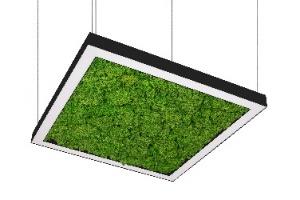

DA-HOGWEED G LED

direct
opal polycarbonate diffuser
aluminium
white RAL9003S
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK05
Operating temperature range, ta 15…+35
Suspended (wire and cap to be ordered separately). Cable 2.0m, 3×0.75mm2, transparent
Indoor

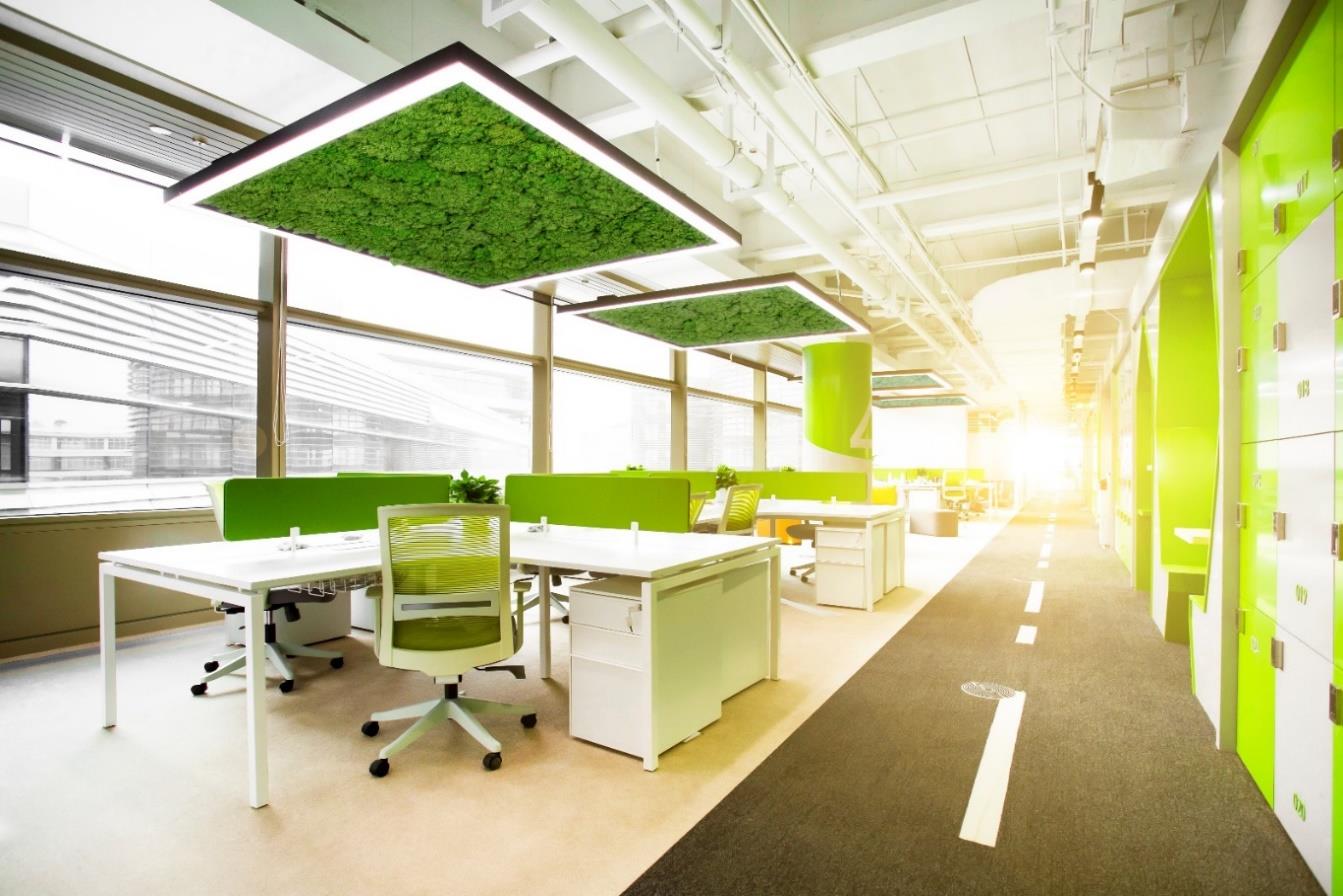

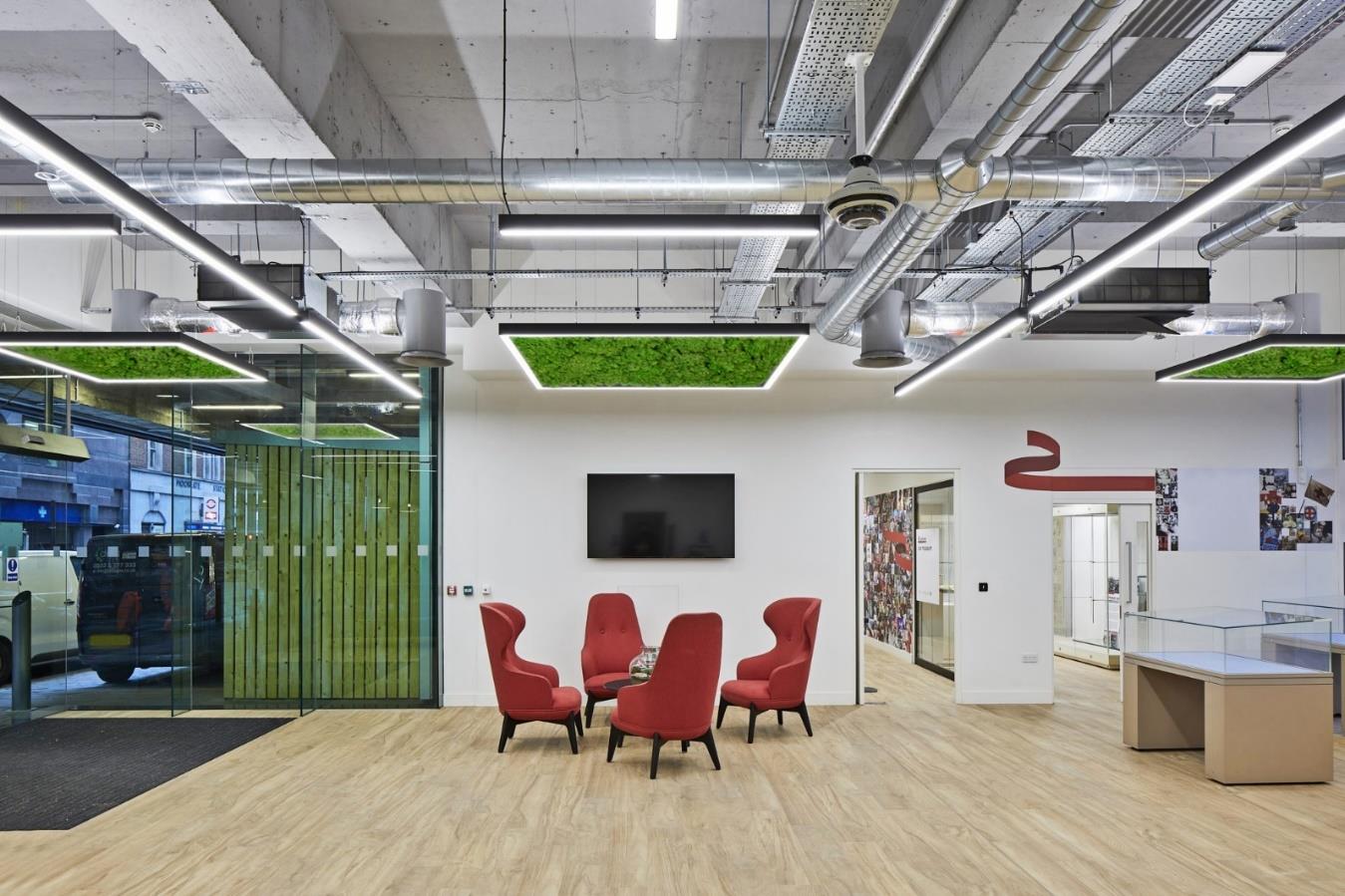

Office, education, hotel, retail, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DPRZ LT80 De-glaring micro -prismatic diffuser, matt
DALI Driver with DALI interface and switch -control dimming
SR Luminaire for surface mounting
RAL RAL colour

OP DPRZ LT80
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-HOGWEED G LED1x3250 J466 T840 OP 620 620 68 3214 24,8 130 80+ 4000 5,6
DA-HOGWEED G LED1x4400 J467 T840 OP 620 620 68 4380 34,7 126 80+ 4000 5,6
DA-HOGWEED G LED1x6050 J468 T840 OP 620 620 68 6021 50,9 118 80+ 4000 5,6
DA-HOGWEED G LED1x4750 J469 T840 OP 900 900 68 4721 36,4 130 80+ 4000 12,4
DA-HOGWEED G LED1x6450 J470 T840 OP 900 900 68 6425 52,5 122 80+ 4000 12,4
DA-HOGWEED G LED1x8750 J471 T840 OP 900 900 68 8713 77,8 112 80+ 4000 12,4
DA-HOGWEED G LED1x6300 J472 T840 OP 1180 1180 68 6295 48,5 130 80+ 4000 13,4
DA-HOGWEED G LED1x8600 J473 T840 OP 1180 1180 68 8567 70,0 122 80+ 4000 13,4
DA-HOGWEED G LED1x11650 J474 T840 OP 1180 1180 68 11618 103,7 112 80+ 4000 13,4
