Description

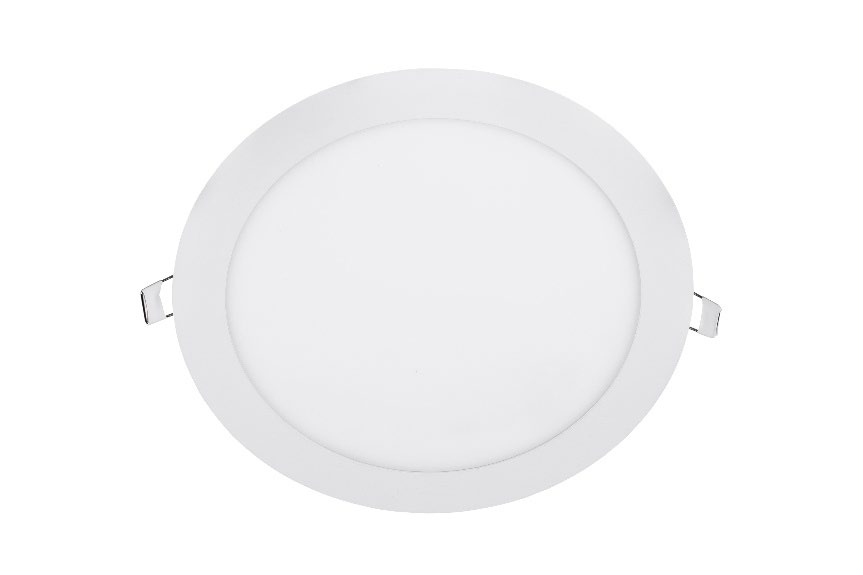

DA-INDIANHEMP P LED

direct
opal PMMA diffuser
aluminium
white (RAL9016)
MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L80B50
5
II
IP44
IK04
Operating temperature range, ta 0 +35
In ceilings with cut -out openings (mounting brackets included). Cable, 0.3m, 2×0.75mm2
105mm, 130mm, 155mm, 175mm, 205mm, 280mm
Indoor

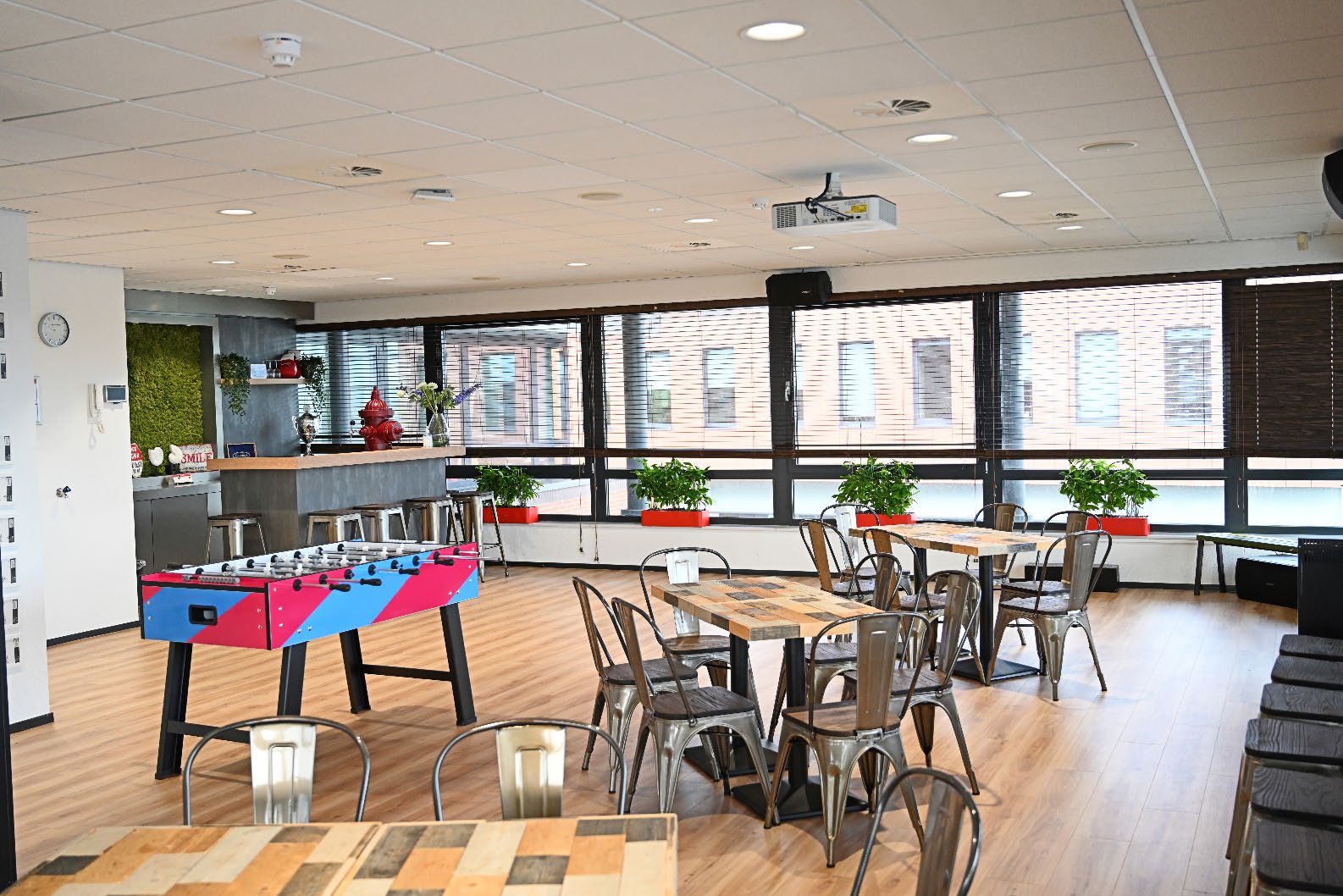

Office, education, hotel, corridor, bathroom, retail, showroom, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.
T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
WIE3 -0.5m 3-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector with 0.5m cable
WIE5D -0.5m 5-DA-COMMONTANSY DALI “Wieland – gesis classic” type or compatible
connector with 0.5m cable
QBX2 -0.1m 2-DA-COMMONTANSY quick connection box on 0.1m cable, Push -in
terminal, 2x2x2.5mm2
Europlug -1.5m 2-DA-COMMONTANSY “Europlug” type plug with 2×1.0mm 1.5m cable
Europlug -3.0m 2-DA-COMMONTANSY “Europlug” type plug with 2×1.0mm 3.0m cable

OP
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-INDIANHEMP P LED1x400 G286 T830 OP IP44 120 120 11 412 6 69 80+ 3000 0,2
DA-INDIANHEMP P LED1x750 G287 T830 OP IP44 145 145 11 778 9 86 80+ 3000 0,2
DA-INDIANHEMP P LED1x950 G288 T830 OP IP44 170 170 11 992 12 83 80+ 3000 0,3
DA-INDIANHEMP P LED1x1200 G599 T830 OP IP44 190 190 11 1314 15 88 80+ 3000 0,3
DA-INDIANHEMP P LED1x1450 G289 T830 OP IP44 220 220 11 1537 18 85 80+ 3000 0,4
DA-INDIANHEMP P LED1x2250 G580 T830 OP IP44 295 295 11 2097 24 87 80+ 3000 0,7
DA-INDIANHEMP P LED1x400 G286 T840 OP IP44 120 120 11 465 6 78 80+ 4000 0,2
DA-INDIANHEMP P LED1x750 G287 T840 OP IP44 145 145 11 812 9 90 80+ 4000 0,2
DA-INDIANHEMP P LED1x950 G288 T840 OP IP44 170 170 11 1036 12 86 80+ 4000 0,3
DA-INDIANHEMP P LED1x1200 G599 T840 OP IP44 190 190 11 1420 15 95 80+ 4000 0,3
DA-INDIANHEMP P LED1x1450 G289 T840 OP IP44 220 220 11 1685 18 94 80+ 4000 0,4
DA-INDIANHEMP P LED1x2250 G580 T840 OP IP44 295 295 11 2236 24 93 80+ 4000 0,7
