Description

DA-ITCHWEED

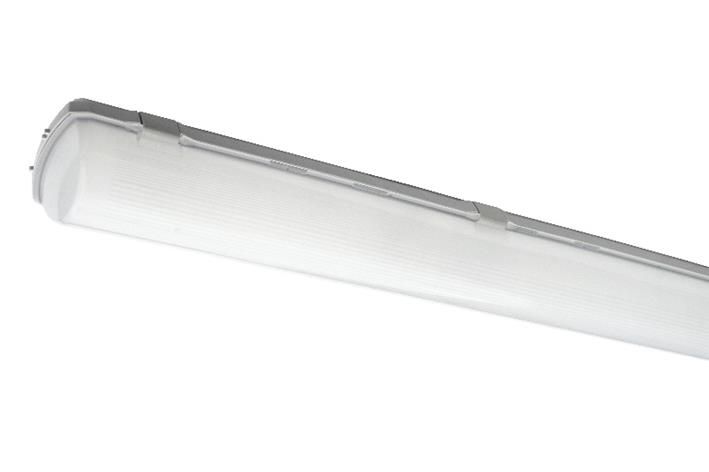

Luminaires Surface mounted waterDA-LOVEVINE luminaire for LED tubes
direct
opal polycarbonate diffuser, UV stable
polycarbonate
light grey
MDA- 220-240V, 50/60Hz
LED / LEDS / LEDD
3
I
IP 66
IK0 6
D
Operating temperature range, ta -20…+40
On the ceiling or wall (mounting brackets included), or suspended (hooks included). Push -in terminal, 3x2x2.5mm2
Indoor
Industry, warehouse, hall, sports, public place, parking area, transport terminal, parking area

* LED, LEDS, LEDD
* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

LED LED connection for LED bulbs LED type
LEDS LEDD connection for LED bulbs LEDD type
LEDD LEDS connection for LED bulbs LEDS type
ABS/ PMMA ABS/PMMA body made from acrylonitrile butadiene
styrene and diffuser from acrylic
ABS/ PC ABS/PC body made from acrylonitrile butadiene
styrene and diffuser from polycarbonate plastic
IC StDA-CANOEBIRCHless steel clips

Product Length, mm Width, mm Height, mm Light source (W)
and holder Weight, kg
DA-ITCHWEED 118 I14 LED ABS/PMMA 662 96 111 1xT8 LED (G13) 0,8
DA-ITCHWEED 218 I15 LED ABS/PMMA 662 146 111 2xT8 LED (G13) 1,1
DA-ITCHWEED 136 I16 LED ABS/PMMA 1272 96 111 1xT8 LED (G13) 1,6
DA-ITCHWEED 236 I17 LED ABS/PMMA 1272 146 111 2xT8 LED (G13) 2,1
DA-ITCHWEED 158 I18 LED ABS/PMMA 1572 96 111 1xT8 LED (G13) 1,9
DA-ITCHWEED 258 I19 LED ABS/PMMA 1572 146 111 2xT8 LED (G13) 2,5

DA-ITCHWEED 118 I14 LED ABS/PMMA IC 662 96 111 1xT8 LED (G13) 0,8
DA-ITCHWEED 218 I15 LED ABS/PMMA IC 662 146 111 2xT8 LED (G13) 1,1
DA-ITCHWEED 136 I16 LED ABS/PMMA IC 1272 96 111 1xT8 LED (G13) 1,6
DA-ITCHWEED 236 I17 LED ABS/PMMA IC 1272 146 111 2xT8 LED (G13) 2,1
DA-ITCHWEED 158 I18 LED ABS/PMMA IC 1572 96 111 1xT8 LED (G13) 1,9
DA-ITCHWEED 258 I19 LED ABS/PMMA IC 1572 146 111 2xT8 LED (G13) 2,5

DA-ITCHWEED 118 I14 LED ABS/PC 662 96 111 1xT8 LED (G13) 0,8
DA-ITCHWEED 218 I15 LED ABS/PC 662 146 111 2xT8 LED (G13) 1,1
DA-ITCHWEED 136 I16 LED ABS/PC 1272 96 111 1xT8 LED (G13) 1,6
DA-ITCHWEED 236 I17 LED ABS/PC 1272 146 111 2xT8 LED (G13) 2,1
DA-ITCHWEED 158 I18 LED ABS/PC 1572 96 111 1xT8 LED (G13) 1,9
DA-ITCHWEED 258 I19 LED ABS/PC 1572 146 111 2xT8 LED (G13) 2,5

DA-ITCHWEED 118 I14 LED ABS/PC IC 662 96 111 1xT8 LED (G13) 0,8
DA-ITCHWEED 218 I15 LED ABS/PC IC 662 146 111 2xT8 LED (G13) 1,1
DA-ITCHWEED 136 I16 LED ABS/PC IC 1272 96 111 1xT8 LED (G13) 1,6
DA-ITCHWEED 236 I17 LED ABS/PC IC 1272 146 111 2xT8 LED (G13) 2,1
DA-ITCHWEED 158 I18 LED ABS/PC IC 1572 96 111 1xT8 LED (G13) 1,9
DA-ITCHWEED 258 I19 LED ABS/PC IC 1572 146 111 2xT8 LED (G13) 2,5
