Description

DA-ITCHWEED LE D

H range

WaterDA-LOVEVINE and Cleanroom

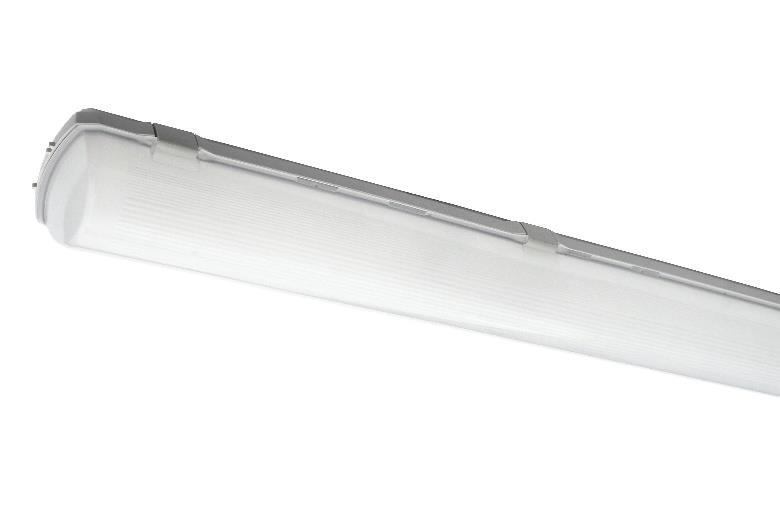

Luminaires Surface mounted or suspended waterDA-LOVEVINE, basic version
direct
opal polycarbonate diffuser, UV stable, impact resistant
polycarbonate
light grey
MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L80B10
3
I
IP6 6
IK 10
D
Glow wire test, 850
Operating temperature range, ta -20+35
On the ceiling or wall (mounting brackets included), or suspended (hooks included). Push -in terminal, 5x2x2.5mm2
Indoor /outdoor with roof
Industry, warehouse, hall, sports, public place, parking area , transport terminal, parking area

Supplied with two fixing brackets for easy installation, sealing washer and accessories for chDA-CANOEBIRCH or
wire suspension .

Suspension mounting kit for DA-ITCHWEED, DA-LOVEVINE and DA-LILYLEEK1.5 or 3.0 meter cables is available on request. For
more information see the accessories list.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI CCT*,
K Weight,
kg
DA-ITCHWEED1x2300 H117 T830 PC/PC OP LT80 662 96 111 2167 14,8 146 80+ 3000 1,3
DA-ITCHWEED1x2700 H118 T830 PC/PC OP LT80 662 96 111 2554 17,8 143 80+ 3000 1,3
DA-ITCHWEED1x3750 H119 T830 PC/PC OP LT80 1272 96 111 3574 25,2 142 80+ 3000 2,1
DA-ITCHWEED1x5350 H120 T830 PC/PC OP LT80 1272 96 111 5108 35,5 144 80+ 3000 2,1
DA-ITCHWEED1x4700 H211 T830 PC/PC OP LT80 1572 96 111 4468 31,5 142 80+ 3000 2,1
DA-ITCHWEED1x6700 H122 T830 PC/PC OP LT80 1572 96 111 6385 44,4 144 80+ 3000 2,6
DA-ITCHWEED1x8700 H124 T830 PC/PC OP LT80 1572 96 111 8278 59,7 139 80+ 4000 2,6
DA-ITCHWEED1x2300 H117 T840 PC/PC OP LT80
1G 662 96 111 2268 14,8 153 80+ 4000 1,3
DA-ITCHWEED1x2700 H118 T840 PC/PC OP LT80
1G 662 96 111 2674 17,8 150 80+ 4000 1,3
DA-ITCHWEED1x3750 H119 T840 PC/PC OP LT80
1G 1272 96 111 3742 25,2 148 80+ 4000 2,1
DA-ITCHWEED1x5350 H120 T840 PC/PC OP LT80
1G 1272 96 111 5348 35,5 151 80+ 4000 2,1
DA-ITCHWEED1x4700 H211 T840 PC/PC OP LT80 1572 96 111 4678 31,5 149 80+ 4000 2,1
DA-ITCHWEED1x6700 H122 T840 PC/PC OP LT80
1G 1572 96 111 6685 44,4 151 80+ 4000 2,6
DA-ITCHWEED1x8700 H124 T840 PC/PC OP LT80 1572 96 111 8666 59,7 145 80+ 4000 2,6
* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
