Description

DA-JUNIPER LED

Alumin ium Profile Luminaires Surface mounted or suspended aluminium profile LED luminaire
direct
opal polycarbonate diffuser
aluminium
light grey RAL9006S
MDA- 220 -240V, 0/50-60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK05
Operating temperature range, ta 0+35
On the ceiling or suspended, system of three parts (ordered separately) designed for installation into “Y” shape (join elemen t, wire,
cable and cap to be ordered separately). Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, hotel, corridor, retail, public place

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI * CCT*,
K Weight,
kg
DA-JUNIPER1x1250 J362 T840 OP LO1 875mm 875 58 68 1206 9,5 127 80+ 4000 1,8
DA-JUNIPER1x1650 J363 T840 O P LO2 875mm 875 58 68 1642 14,0 117 80+ 4000 1,8
DA-JUNIPER1x2300 J364 T840 OP LO3 875mm 875 58 68 2258 20,7 109 80+ 4000 1,8

DA-JUNIPER1x1650 J365 T840 OP LO1 1155mm 1155 58 68 1607 12,6 128 80+ 4000 2,3
DA-JUNIPER1x2200 J366 T840 OP LO2 1155mm 1155 58 68 2190 18,1 121 80+ 4000 2,3
DA-JUNIPER1x3050 J367 T840 OP LO3 1155mm 1155 58 68 3010 26,4 114 80+ 4000 2,3

DA-JUNIPER1x2050 J368 T840 OP LO1 1435mm 1435 58 68 2009 16,3 123 80+ 4000 2,6
DA-JUNIPER1x2750 J369 T840 OP LO2 1435mm 1435 58 68 2737 22,7 121 80+ 4000 2,6
DA-JUNIPER1x3800 J370 T840 OP LO3 1435mm 1435 58 68 3763 32,5 116 80+ 4000 2,6

DA-JUNIPER1x2450 J371 T840 OP LO1 1715mm 1715 58 68 2410 19,1 126 80+ 4000 3,1
DA-JUNIPER1x3300 J372 T840 OP LO2 1715mm 1715 58 68 3285 27,0 122 80+ 4000 3,1
DA-JUNIPER1x4550 J373 T840 OP LO3 1715mm 1715 58 68 4516 38,6 117 80+ 4000 3,1

DA-JUNIPER1x2850 J374 T840 OP LO1 1995mm 1995 58 68 2812 22,2 127 80+ 4000 3,4
DA-JUNIPER1x3850 J375 T840 OP LO2 1995mm 1995 58 68 3832 31,0 124 80+ 4000 3,4
DA-JUNIPER1x5300 J376 T840 OP LO3 1995mm 1995 58 68 5268 44,6 118 80+ 4000 3,4

DA-JUNIPER1x3250 J377 T840 OP LO1 2275mm 2275 58 68 3214 25,1 128 80+ 4000 4
DA-JUNIPER1x4400 J378 T840 OP LO2 2275mm 2275 58 68 4380 35,5 123 80+ 4000 4
DA-JUNIPER1x6050 J379 T840 OP LO3 2275mm 2275 58 68 6021 50,9 118 80+ 4000 4

DA-JUNIPER1x3650 J380 T840 OP LO1 2555mm 2555 58 68 3616 27,6 131 80+ 4000 4,6
DA-JUNIPER1x4950 J381 T840 OP LO2 2555mm 2555 58 68 4927 39,9 123 80+ 4000 4,6
DA-JUNIPER1x6800 J382 T840 OP LO3 2555mm 2555 58 68 6773 57,3 118 80+ 4000 4,6

DA-JUNIPER1x4250 J383 T840 OP LO1 2975mm 2975 58 68 4219 31,9 132 80+ 4000 5
DA-JUNIPER1x5750 J384 T840 O P LO2 2975mm 2975 58 68 5748 46,0 125 80+ 4000 5
DA-JUNIPER1x7950 J385 T840 OP LO3 2975mm 2975 58 68 7902 66,1 120 80+ 4000 5
* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

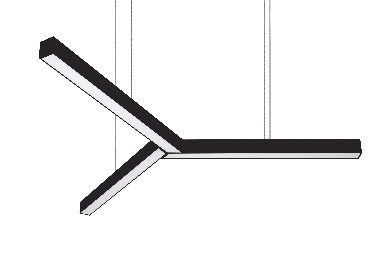

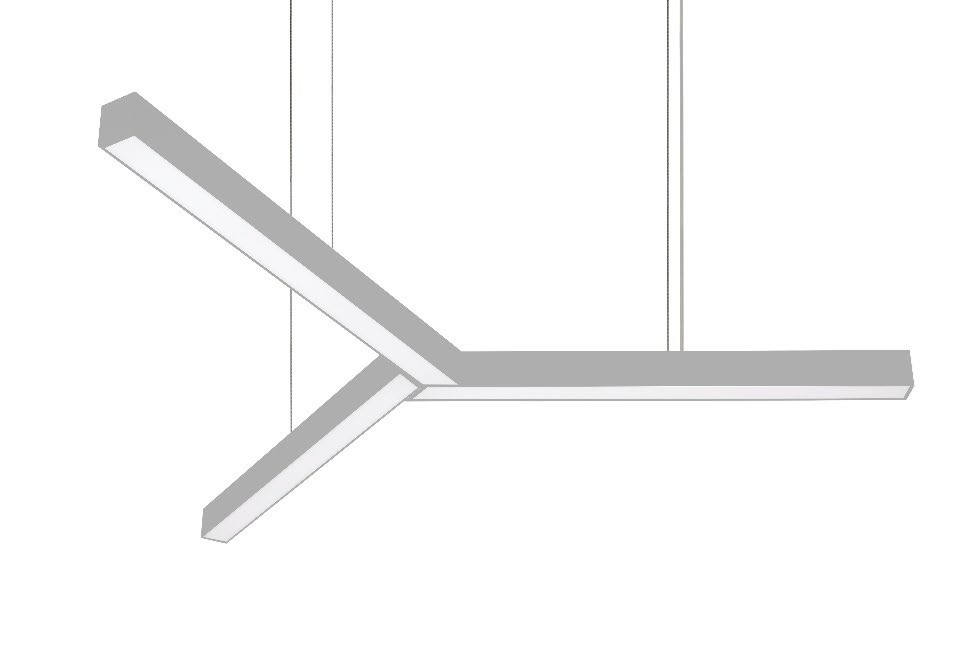

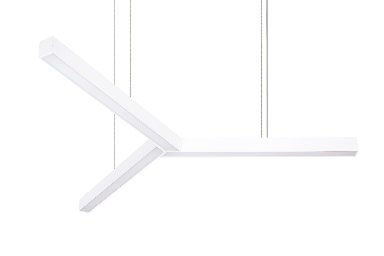

System of three parts (ordered as an individual luminaires)
