Description

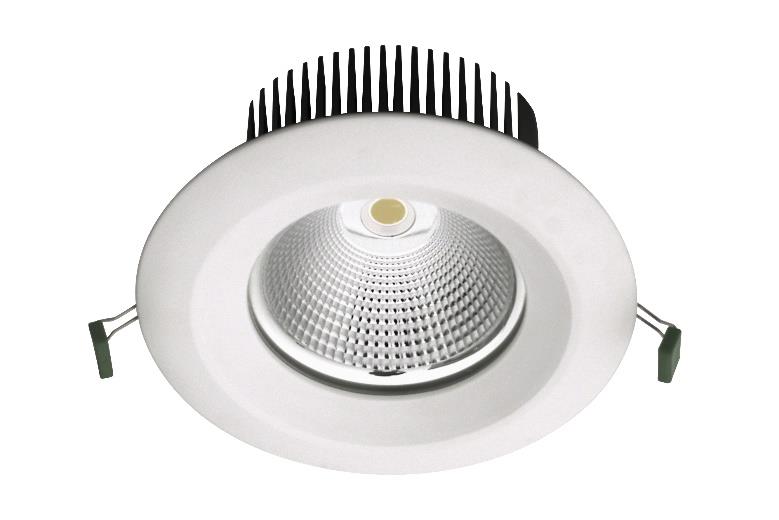

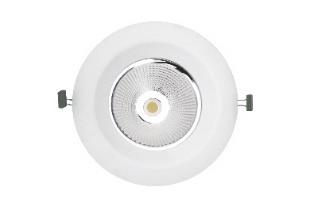

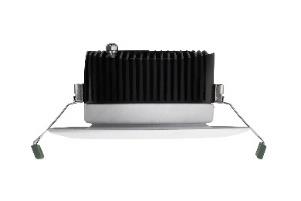

DA-LAMBSCRESS

direct
faceted aluminium reflector, 50, low glare, tempered glass diffuser, silicon rubber gasket
aluminium
white (RAL9016)
MDA- 220 -240V, 50/60Hz
LED lifetime, 60000/L80B10
3
I I
IP 65
IK05
Operating temperature range, ta -20+35
In ceilings with cut -out openings (mounting brackets included). Cable, 0.3m, 2×0 .75mm2
Indoor
Office, hotel, bathroom, retail, showroom, exhibition, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
T927 NATURAL Colour temperature 2700K, CRI 95+ NATURAL
T930 NATURAL Colour temperature 3000K, CRI 95+ NATURAL
T940 NATURAL Colour temperature 4000K, CRI 95+ NATURAL
DALI Driver with DALI interface and switch -control dimming
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
*note – Operating temperature range for Luminaires with EM option, ta 0…
+35
RAL RAL colour
*note – price for uncommon RAL colour could be different from indicated. Ask
before placing an order
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-LAMBSCRESS1x2450 E956 T830 CLR 225 225 90 2359 19,8 119 80+ 3000 1,2
DA-LAMBSCRESS1x3200 E957 T830 CLR 225 225 90 3176 27,1 117 80+ 3000 1,2
DA-LAMBSCRESS1x4100 J214 T830 CLR 225 225 90 3983 35,1 113 80+ 3000 1,2
DA-LAMBSCRESS1x4600 E958 T830 CLR 225 225 90 4549 42,1 108 80+ 3000 1,2
DA-LAMBSCRESS1x2450 E956 T840 CLR 225 225 90 2493 19,8 126 80+ 4000 1,2
DA-LAMBSCRESS1x3200 E957 T840 CLR 225 225 90 3357 27,1 124 80+ 4000 1,2
DA-LAMBSCRESS1x4100 J214 T840 CLR 225 225 90 4211 35,1 120 80+ 4000 1,2
DA-LAMBSCRESS1x4600 E958 T840 CLR 225 225 90 4809 42,1 114 80+ 4000 1,2
CLR
