Description

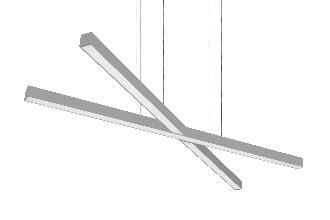

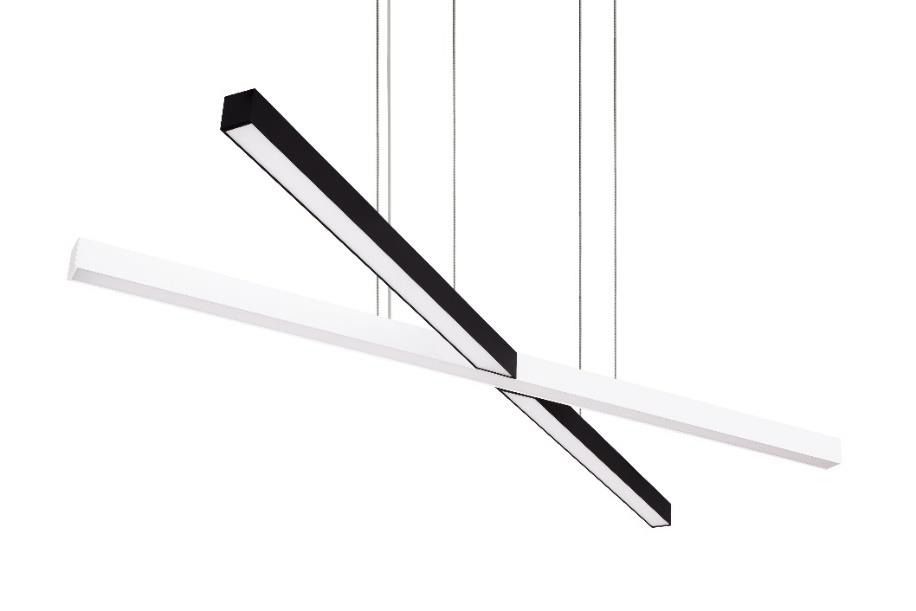

DA-LETTUCE LED

Alumin ium Profile Luminaires Suspended DA-CANEASHative aluminium profile LED luminaire
direct
opal polycarbonate diffuser
aluminium
light grey RAL9006 S
MDA- 220 -240V, 0/50-60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK05
Operating temperature range, ta 0+35
Suspended (wire and cap to be ordered separately). Cable 2.0m, 3×0.75mm2, transparent
Indoor
Office, education, hotel, retail, public place

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI * CCT*,
K Weight,
kg
DA-LETTUCE1x5650 J410 T840 OP 1952 676 74 5625 43,0 131 80+ 4000 6,5
DA-LETTUCE1x7700 J411 T840 OP 1952 676 74 7665 62,1 123 80+ 4000 6,5
DA-LETTUCE1x10550 J412 T840 OP 1952 676 74 10535 88,2 119 80+ 4000 6,5
* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors. Suspension MTG KIT SUSI
Suspension wire set “I” type, 1.5m
adjustable, 1pcs
*note – 4pcs MTG SUSI KIT for 1 luminaire required
CAP4, light grey/ white/ black
Square DA-CANEASHative metal cap for hiding cable
inlet with suspension wire attachment point, push -in
terminals 3x1x1.5mm2, light grey/ white/ black
CAP cable 3×0.75 2.0m, clear
Cable 3×0.75mm for suspended luminaire
up to 2.0 meters, transparent
CAP5, light grey/ white/ black
Square DA-CANEASHative metal cap for hiding cable
inlet with suspension wire attachment point, push -in
terminals 5x1x1.5mm2, light grey/ white/ black
CAP cable clip D6.3mm SET clear
Cable and suspension wire clip set, 4pcs.
For cable diameter up to 6,3mm and wire diameter 1mm OP DPRZ LT80
T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
OP Opal diffuser with high light transmittance
DPRZ LT80 De-glaring micro -prismatic diffuser with matt light scattering layer
DALI Driver with DALI interface and switch -control dimming
CBF3 -2.0m clear Cable 3×0.75mm for suspended luminaire up to 2.0 meters, transparent
CBF3 -3.0m clear Cable 3×0.75mm for suspended luminaire up to 3.0 meters, transparent
CBF5 -2.0m clear Cable 5×0.75mm for suspended luminaire up to 2.0 meters, transparent
CBF5 -3.0m clear Cable 5×0.75mm for suspended luminaire up to 3.0 meters, transparent
RAL RAL colour
