Description

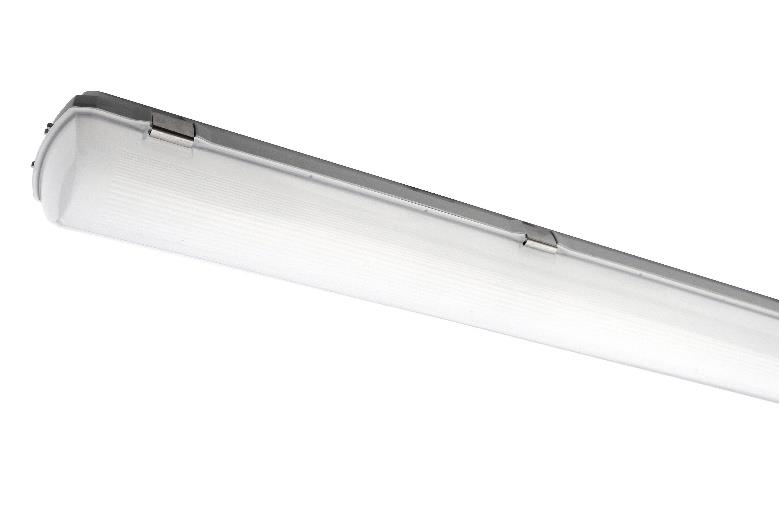

DA-LILYLEEK

Luminaires Surface mounted waterDA-LOVEVINE-40 to +50C environments
direct
opal polycarbonate diffuser, UV stable, impact resistant
polycarbonate
light grey
MDA- 220-240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP66
IK10
D
Glow wire test, 850
Operating temperature range, ta -40+50
On the ceiling or wall (mounting brackets included), or suspended (hooks included). Push -in terminal, 5x2x2.5mm2
Indoor/outdoor with roof
Industry, cold store, bakery, heating plant, glass factory

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-LILYLEEK1x4600 G473 T830 OP LT80 IC ta –
40+50C 1272 96 111 4325 26,8 161 80+ 3000 2,1
DA-LILYLEEK1x5700 G474 T830 OP LT80 IC ta –
40+50C 1272 96 111 5375 34,4 156 80+ 3000 2,1
DA-LILYLEEK1x6800 G475 T830 OP LT80 IC ta –
40+50C 1272 96 111 6421 39,6 162 80+ 3000 2,1
DA-LILYLEEK2x4600 G476 T830 OP LT80 IC ta –
40+50C 1272 146 111 8650 52,5 165 80+ 3000 2,8
DA-LILYLEEK1x4250 G477 T830 OP LT80 IC ta –
40+50C 1572 96 111 3987 24,1 165 80+ 3000 2,6
DA-LILYLEEK1x5200 G478 T830 OP LT80 IC ta –
40+50C 1572 96 111 4912 30,4 162 80+ 3000 2,6
DA-LILYLEEK1x7150 G479 T830 OP LT80 IC ta –
40+50C 1572 96 111 6719 42,6 158 80+ 3000 2,6
DA-LILYLEEK1x8500 G480 T830 OP LT80 IC ta –
40+50C 1572 96 111 8026 49 164 80+ 3000 2,6
DA-LILYLEEK2x5200 G481 T830 OP LT80 IC ta –
40+50C 1572 146 111 9825 58,8 167 80+ 3000 3,3
DA-LILYLEEK1x4600 G473 T840 OP LT80 IC ta –
40+50C 1272 96 111 4559 26,8 170 80+ 4000 2,1
DA-LILYLEEK1x5700 G474 T840 OP LT80 IC ta –
40+50C 1272 96 111 5665 34,4 165 80+ 4000 2,1
DA-LILYLEEK1x6800 G475 T840 OP LT80 IC ta –
40+50C 1272 96 111 6769 39,6 171 80+ 4000 2,1
DA-LILYLEEK2x4600 G476 T840 OP LT80 IC ta –
40+50C 1272 146 111 9118 52,5 174 80+ 4000 2,8
DA-LILYLEEK1x4250 G477 T840 OP LT80 IC ta-
40+50C 1572 96 111 4205 24,1 174 80+ 4000 2,6
DA-LILYLEEK1x5200 G478 T840 OP LT80 IC ta –
40+50C 1572 96 111 5178 30,4 171 80+ 4000 2,6
DA-LILYLEEK1x7150 G479 T840 OP LT80 IC ta –
40+50C 1572 96 111 7082 42,6 166 80+ 4000 2,6
DA-LILYLEEK1x8500 G480 T840 OP LT80 IC ta –
40+50C 1572 96 111 8461 49 173 80+ 4000 2,6
DA-LILYLEEK2x5200 G481 T840 OP LT80 IC ta –
40+50C 1572 146 111 10356 58,7 177 80+ 4000 3,3
